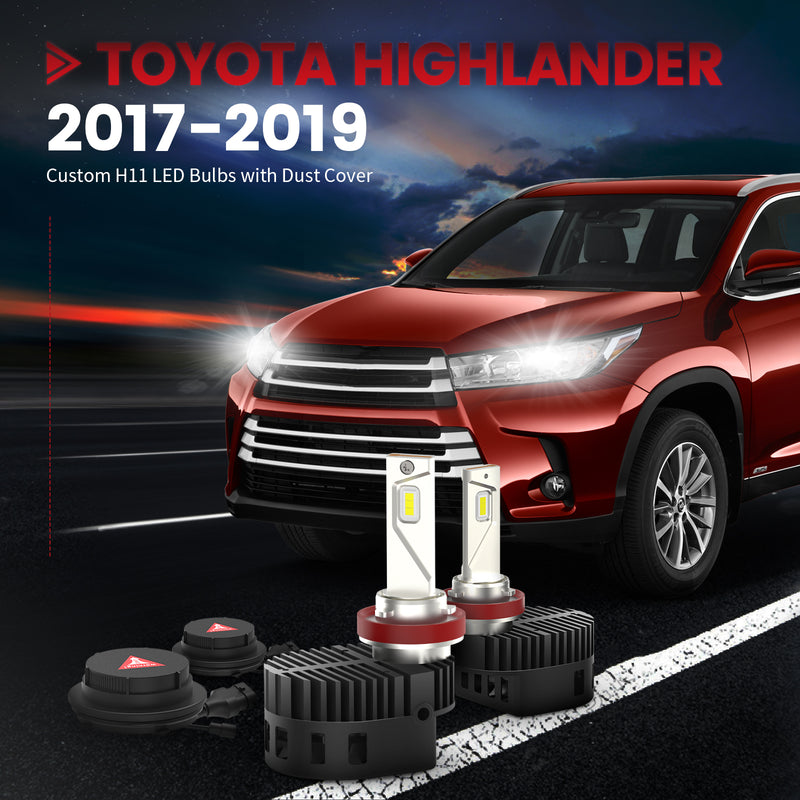

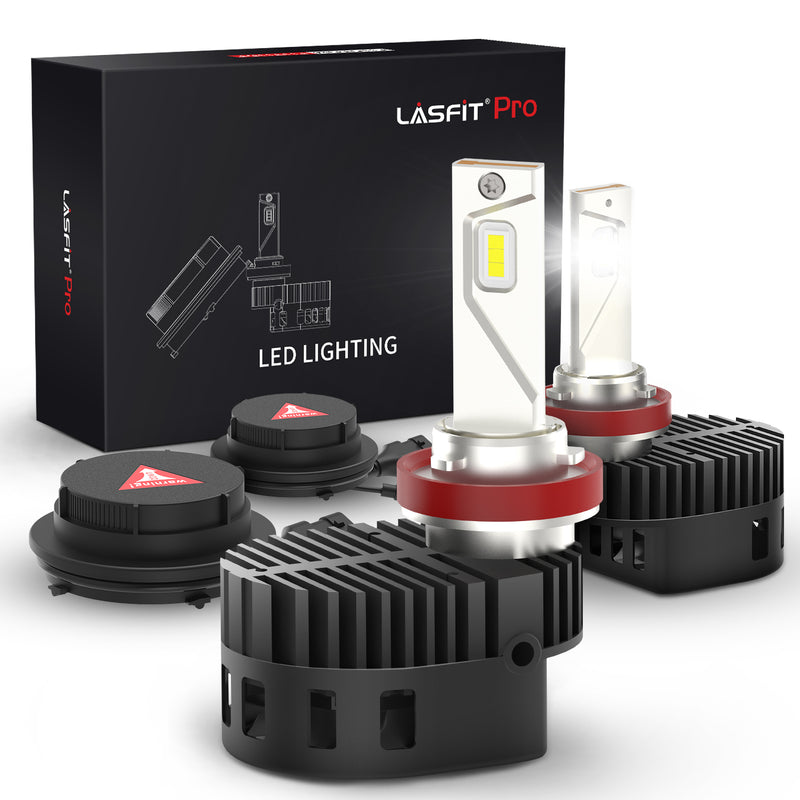

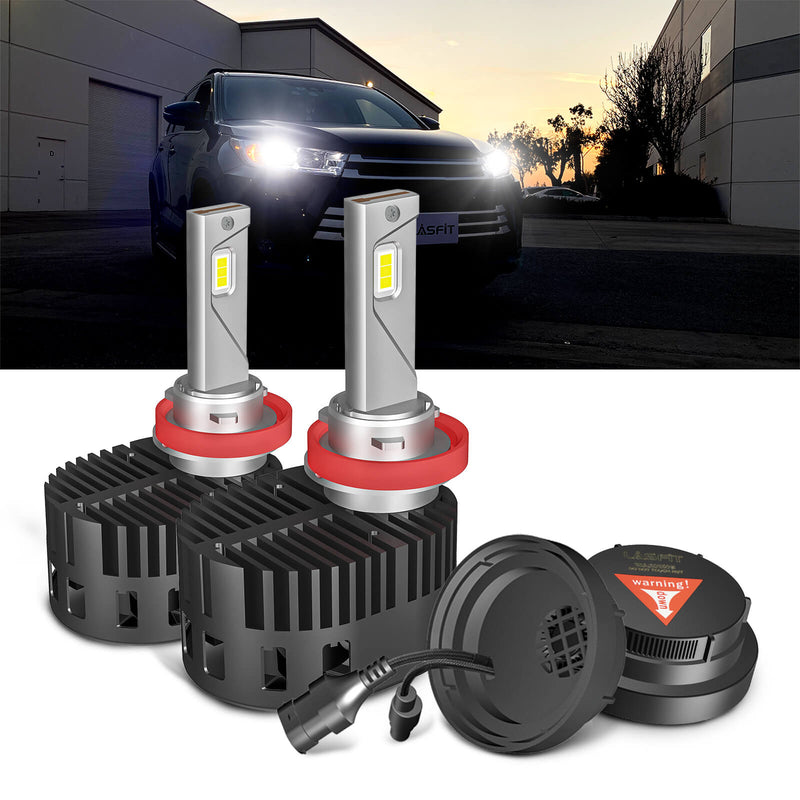

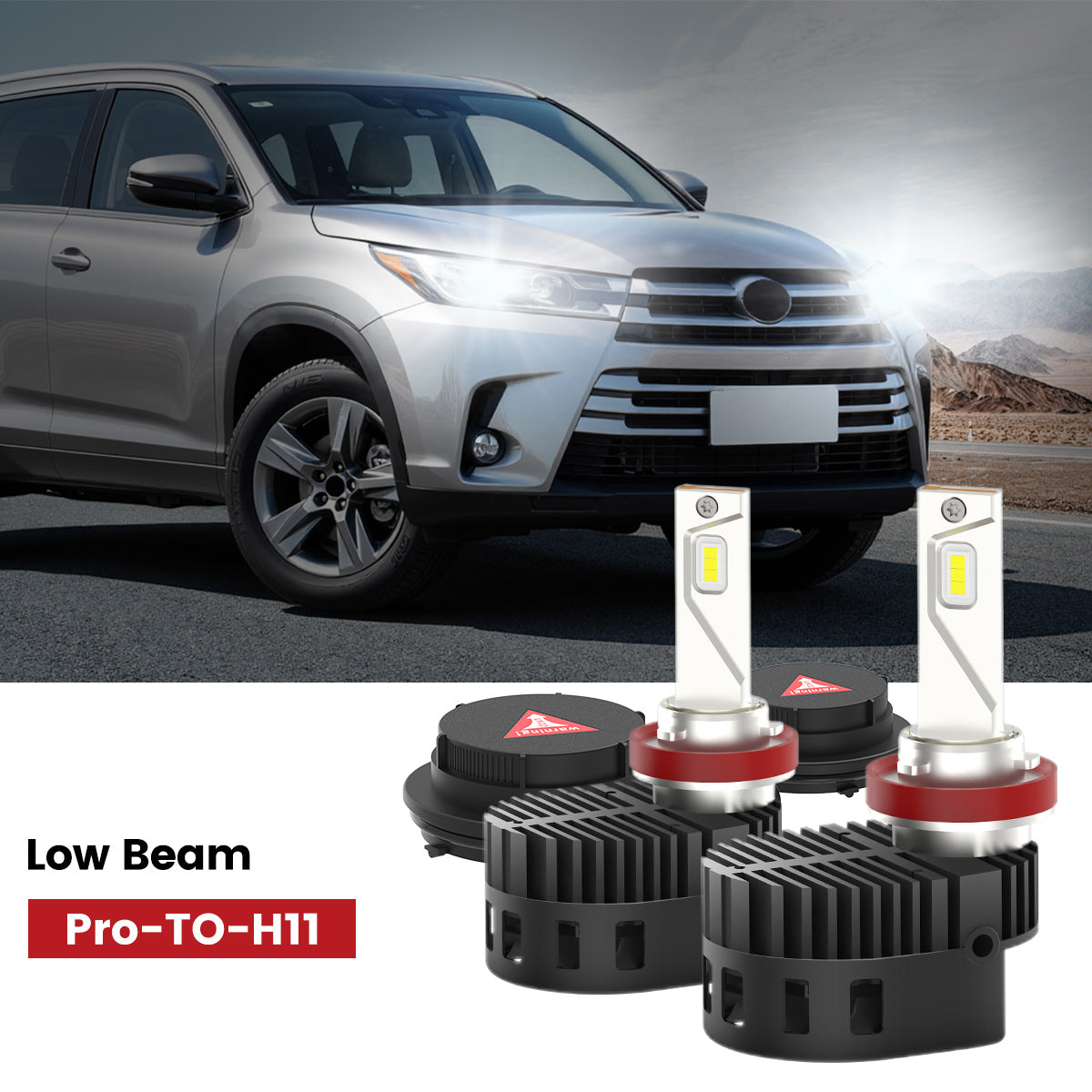

The Custom-Made H11 LED Bulbs w/Dust Cover Fit for 2017-2019 Toyota Highlander
These H11 LED bulbs (#Pro-TO-H11) are specially made for 2017 2018 2019 Toyota Highlander. 600% brighter than halogen with optimized output beam pattern, perfect-fit, easy installation and stronger durability. The optimal LED forward light replacements for your Highlander!
We also provide LED fog light, front and rear turn signals, front side marker light, reverse/backup light, license plate light, map light, and interior door lights. All of these LEDs were tested on Highlander without problem. Feel free to read more following details for every bulbs for Highlander and choose the LED bulbs you want.
How do these specific H11 LEDs perform on your Highlander?

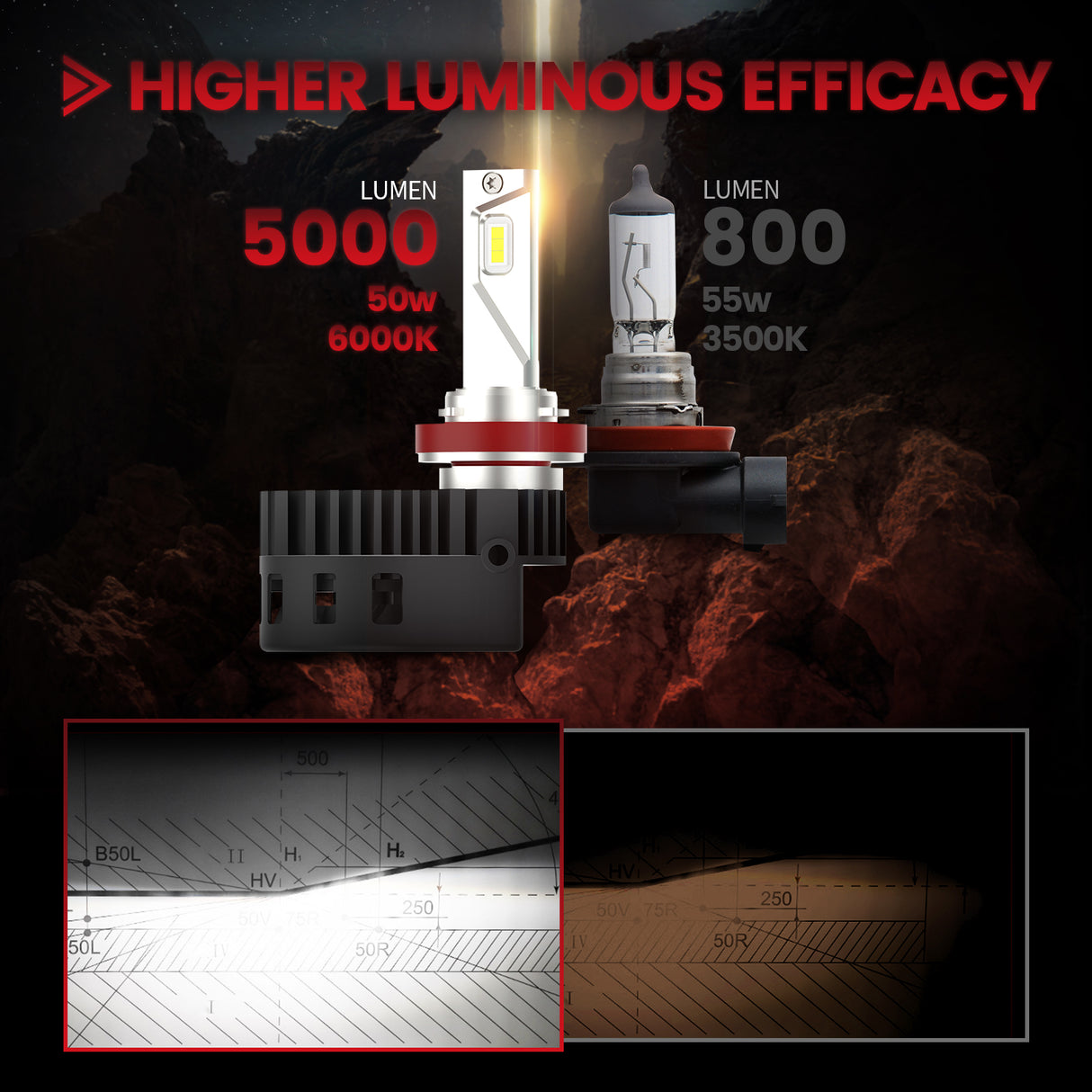

● Truly 50W, 5000LM per bulb, 600% brightness, to provide clear vision for safe driving
● 80*80MIL high lumen LED chips with accurate design of the mount socket output the optimized beam pattern with clear cut-off.

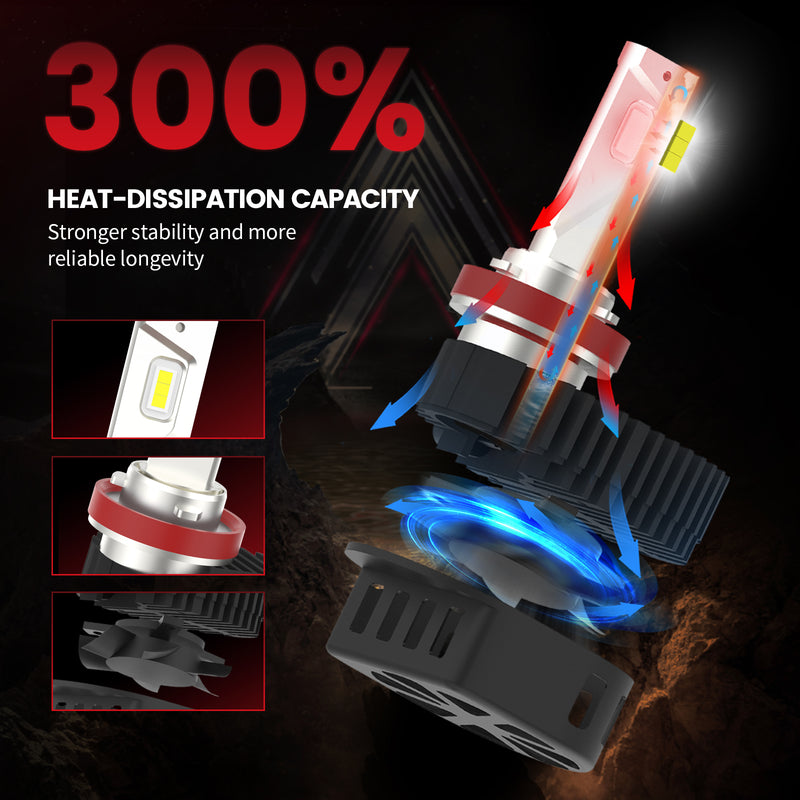

● The dual-cooling fan and unique heat-dissipation solution greatly improve the longevity and durability and keep LED bulbs working stably.
Perfect-Fit. Easy Installation.

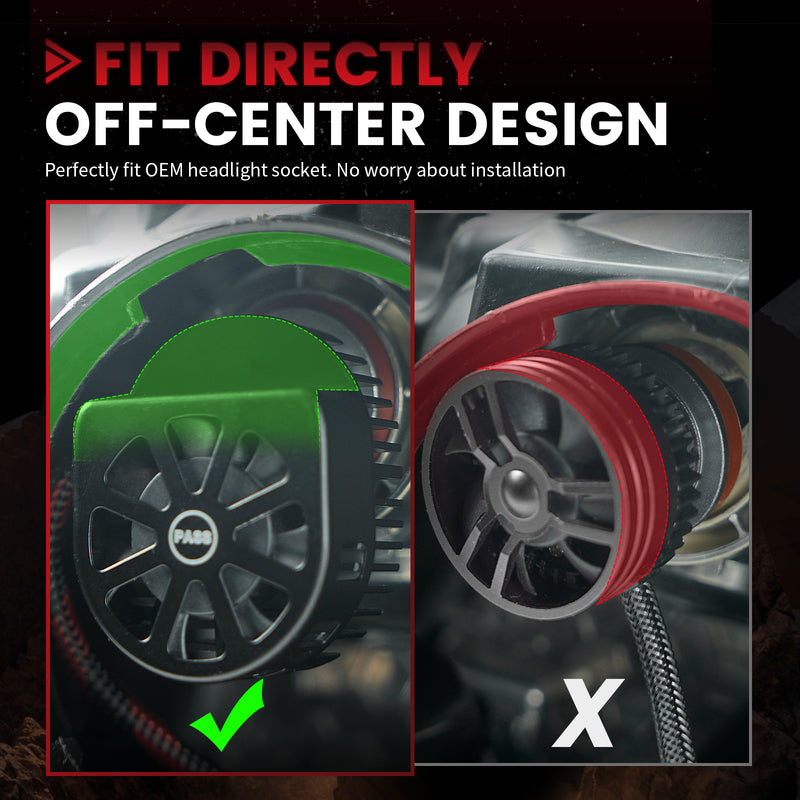

The off-center design perfectly fits the OEM offset forward light housing. The extended dust cover prevents moisture/water/dust get into the forward light housing.

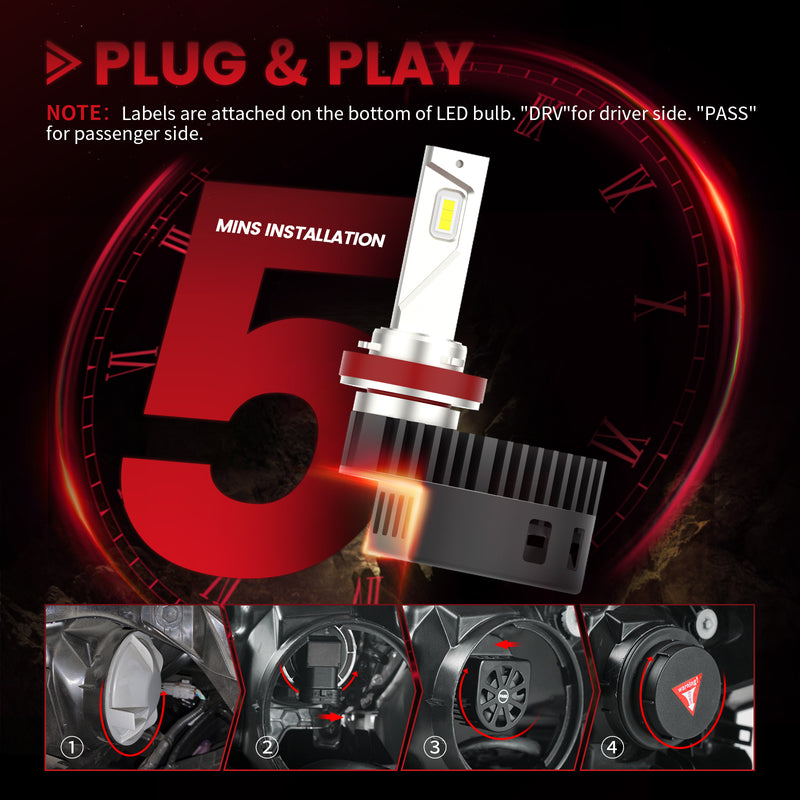

Installation Guide
Step 1. Open the hood.
Step 2. Taking out the stock halogen bulbs and disconnect the power plug.
Step 3. Lock the LED bulb on the housing socket.
Step 4. Connect the power plug.
Step 5. Put the dust cover back on.
All Done!
You don't need OEM dust covers anymore! The OEM-design extended dust cover comes with the specific H11 led bulbs perfectly fit on the OEM assembly.
NOTICE:
1. For the Hybrid version, there is a fuse box behind the forward light on the driver side. So, you will need to remove the fuse box to install these bulbs.
2. There is a label on dust cover/cooling system and LED bulb. If the label is "DRV", the LED bulb and dust cover are installed on driver side. If the label is "PASS", please install LED bulb and dust cover on the passenger side.
Custom LED Headlight Low Beam Bulbs Fit for 2017-2019 Toyota Highlander
-
Custom-Design.

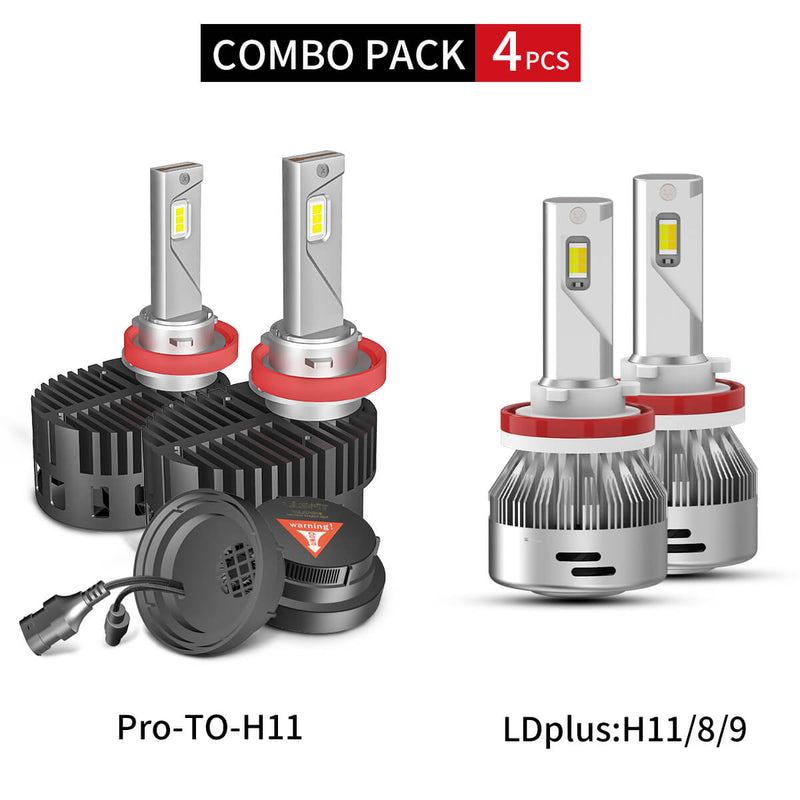

These LED kits include H11 LED bulbs and dust cover, which replace the OEM halogen and rubber cover. All are plug and play, easy installation.
-

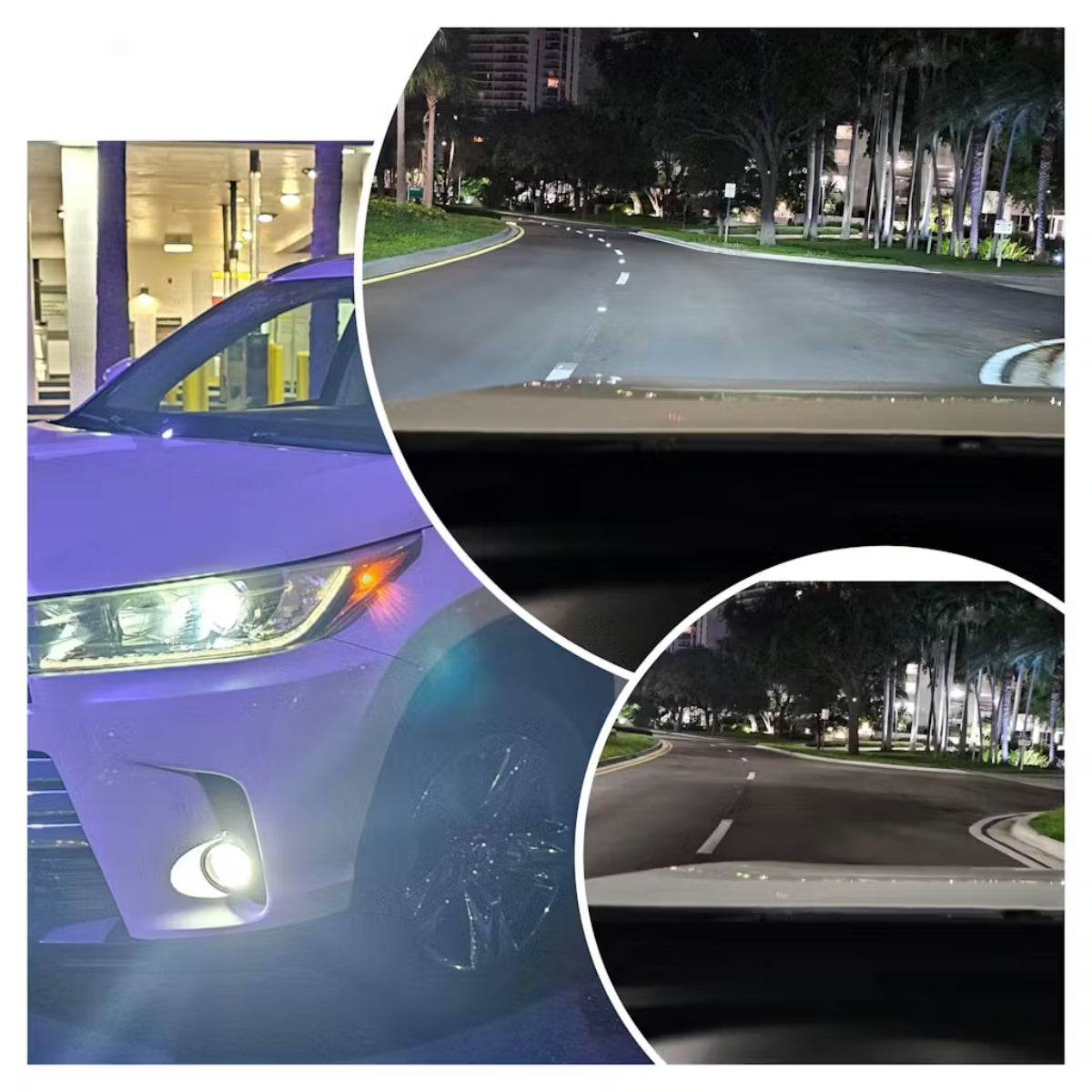

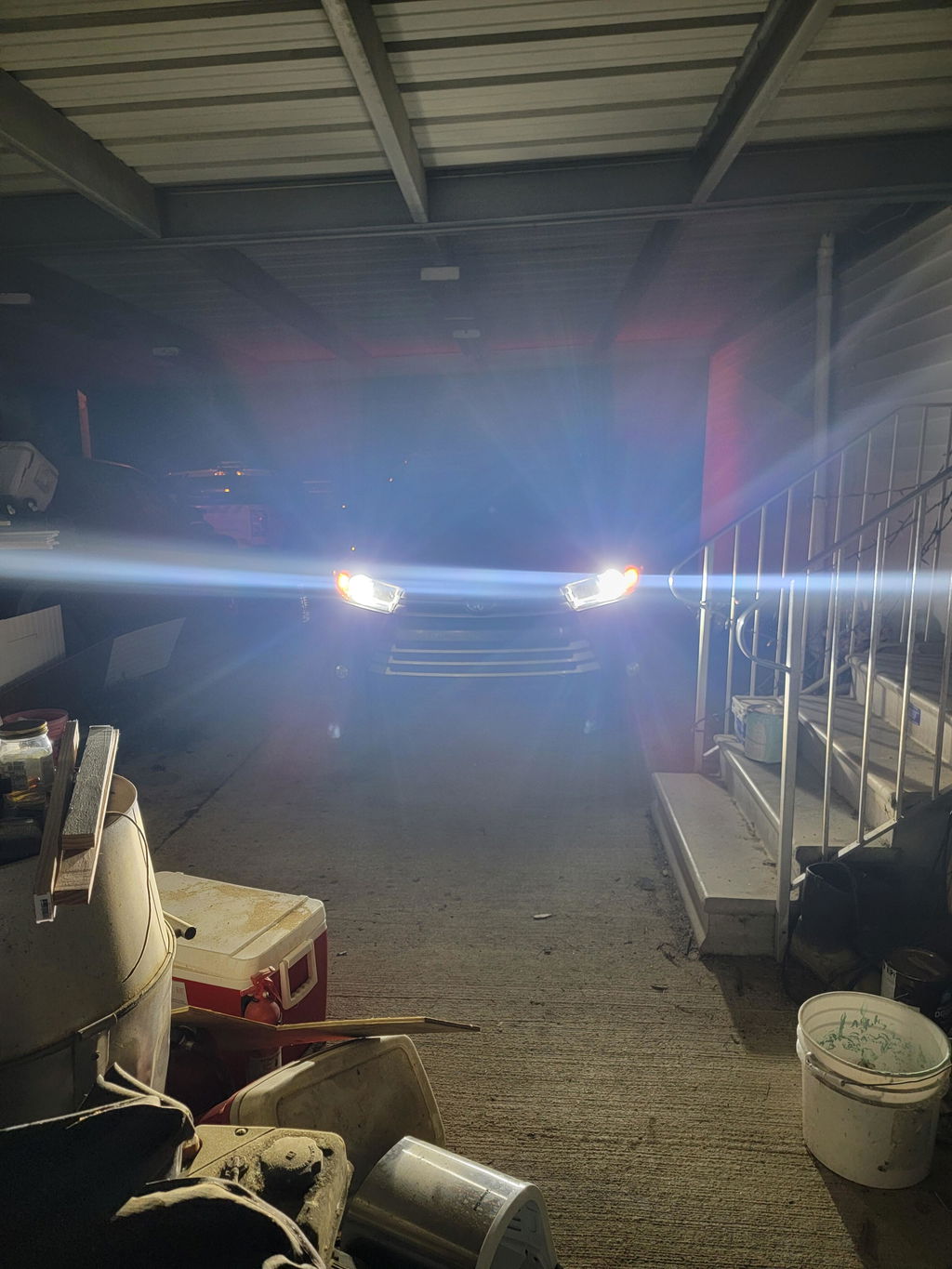

Optimized Beam Pattern

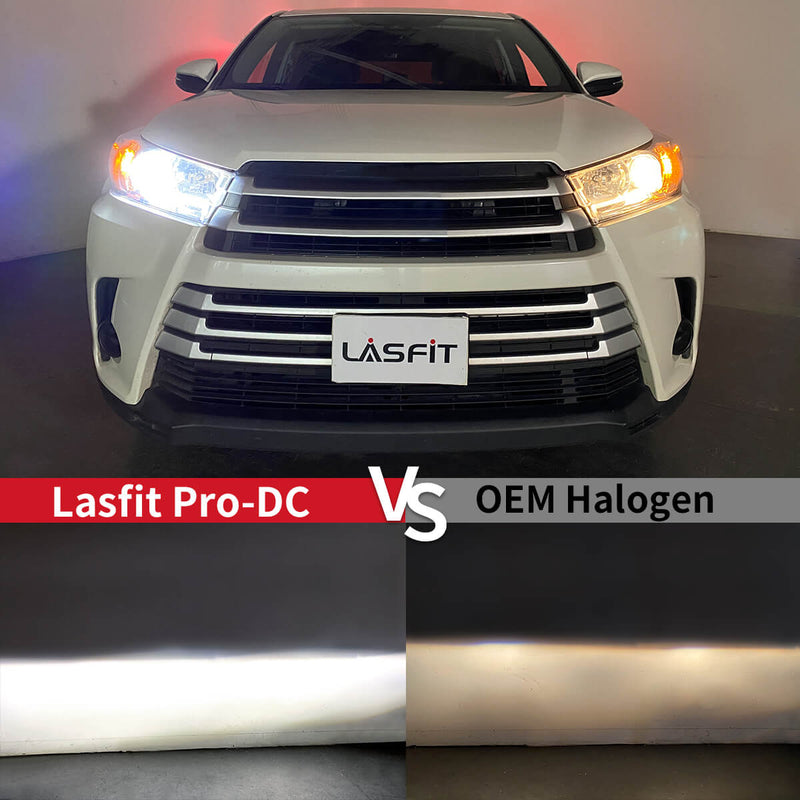

Lasfit LED chips and base socket are precisely angled to deliver an optimal light beam pattern. We conducted extensive testing on the Toyota Highlander, refining the design until the beam output closely mimicked the original halogen lights for superior performance.
-
OEM-Style Extended Dust Cover
The extended dust cover is inspired by the original Toyota Highlander rubber cover, offering superior protection from water, dust, and debris. The extended design not only shields the bulbs but also provides extra space for enhanced heat dissipation, ensuring longevity and reliability.

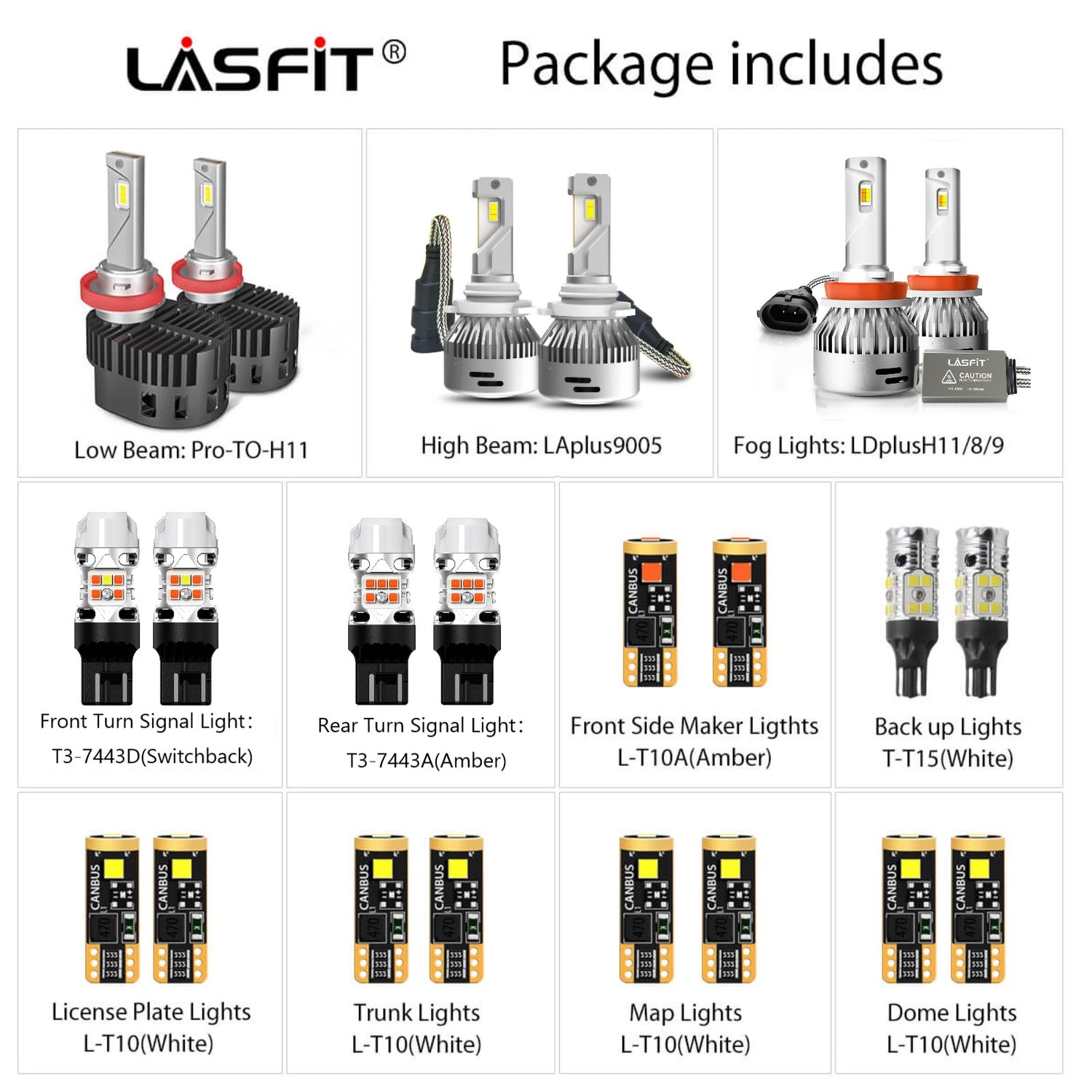

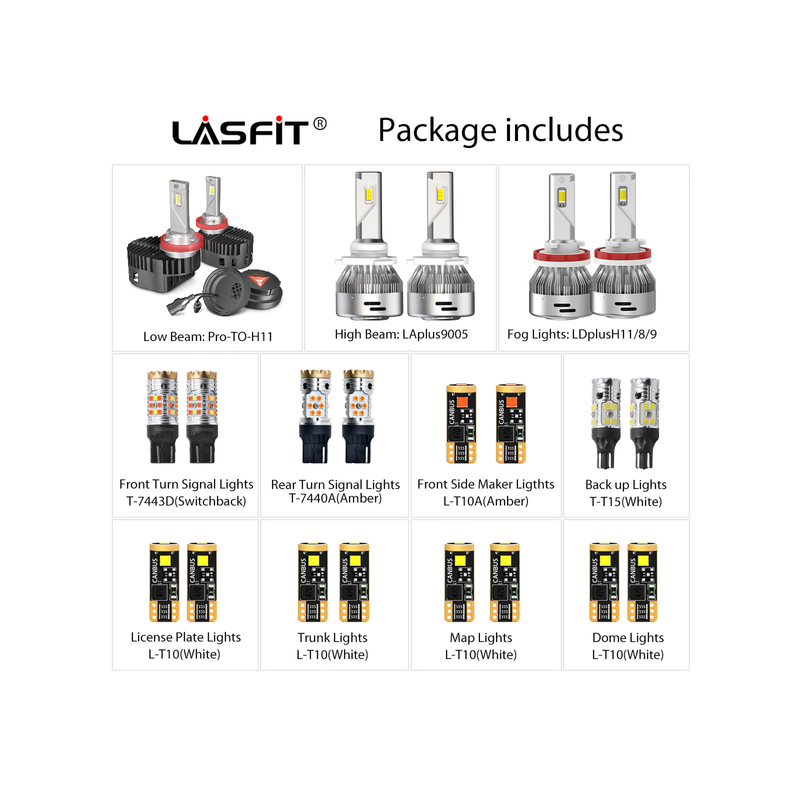

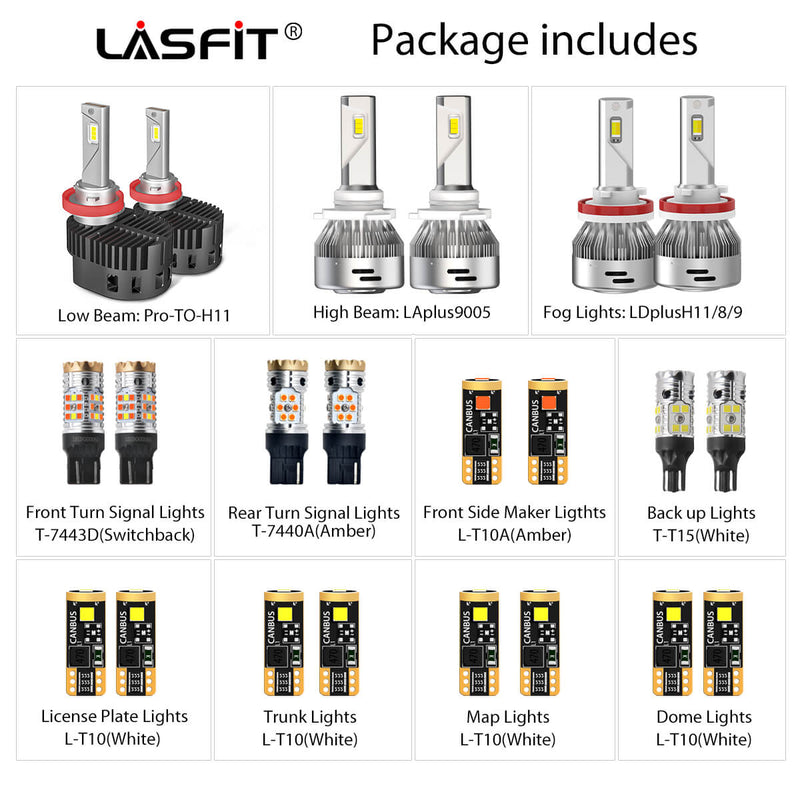

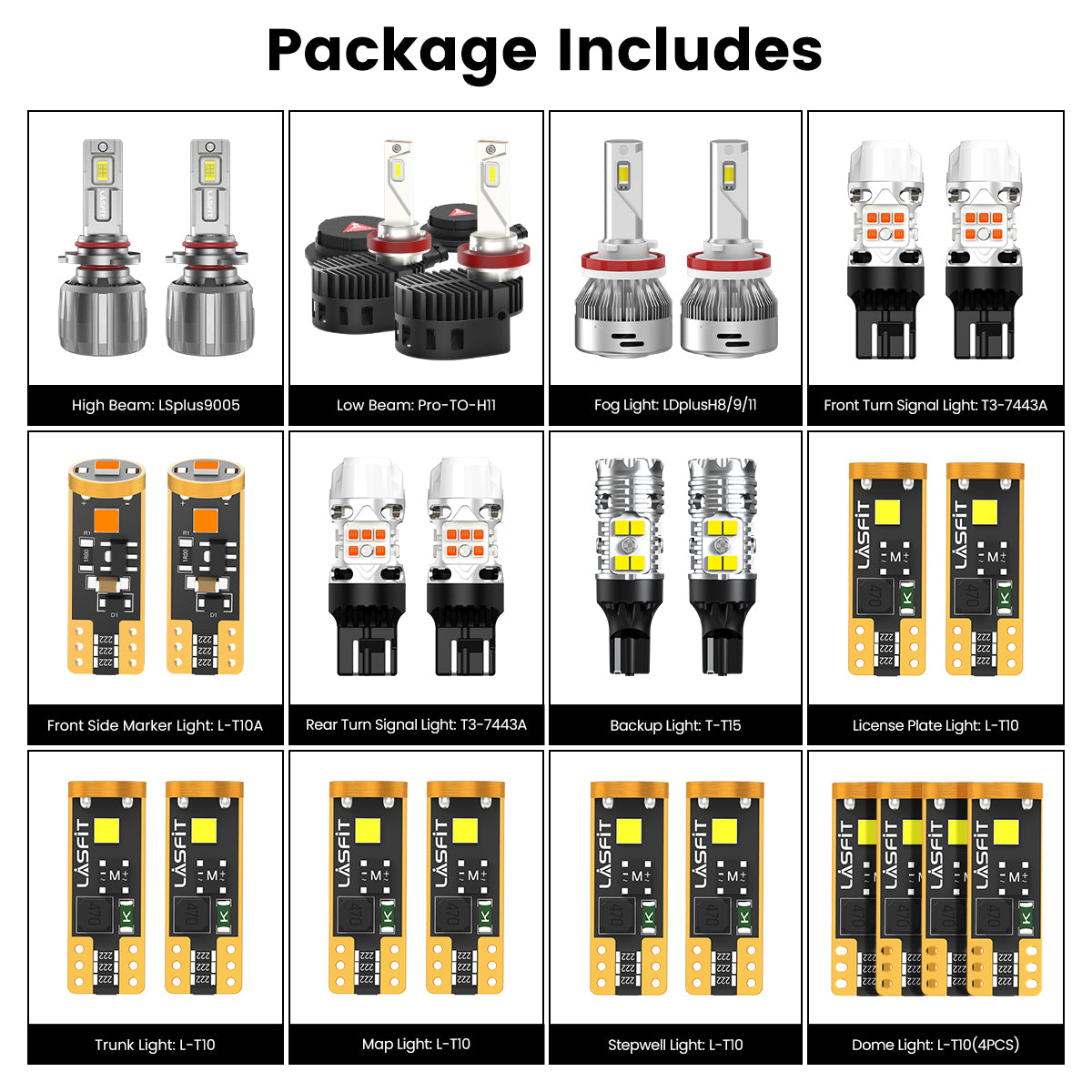

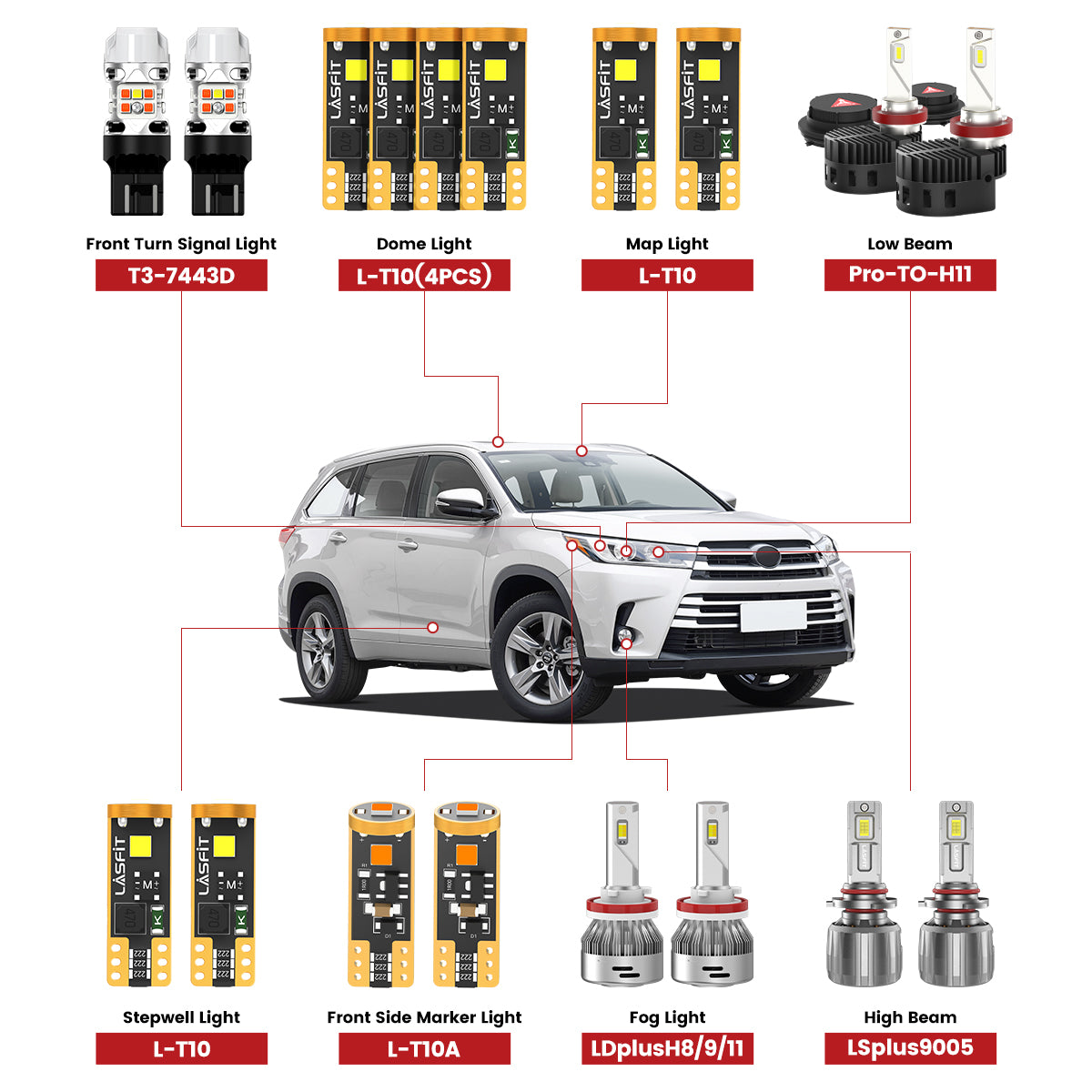

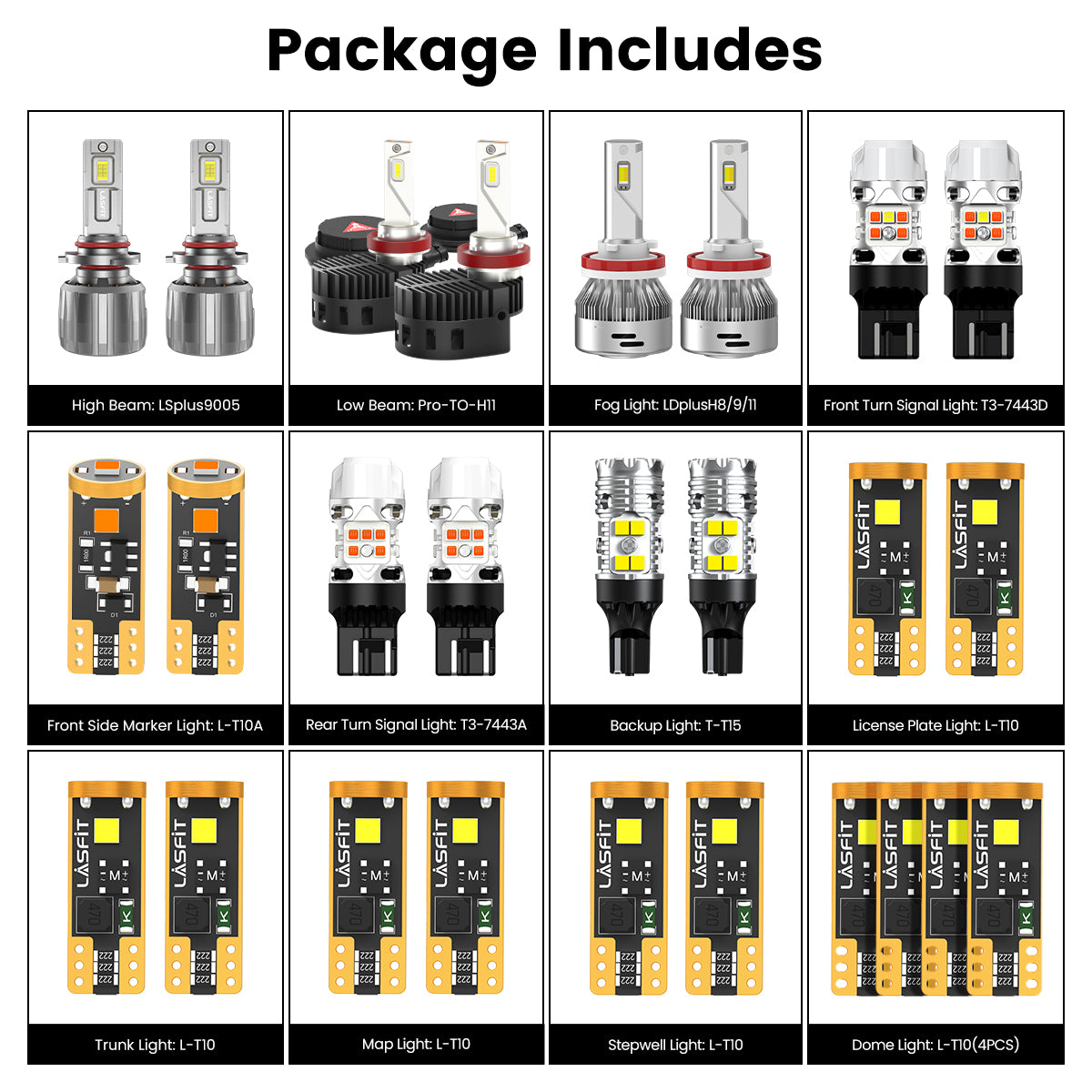

Toyota Highlander Bulb Size Chart (2017-2019)

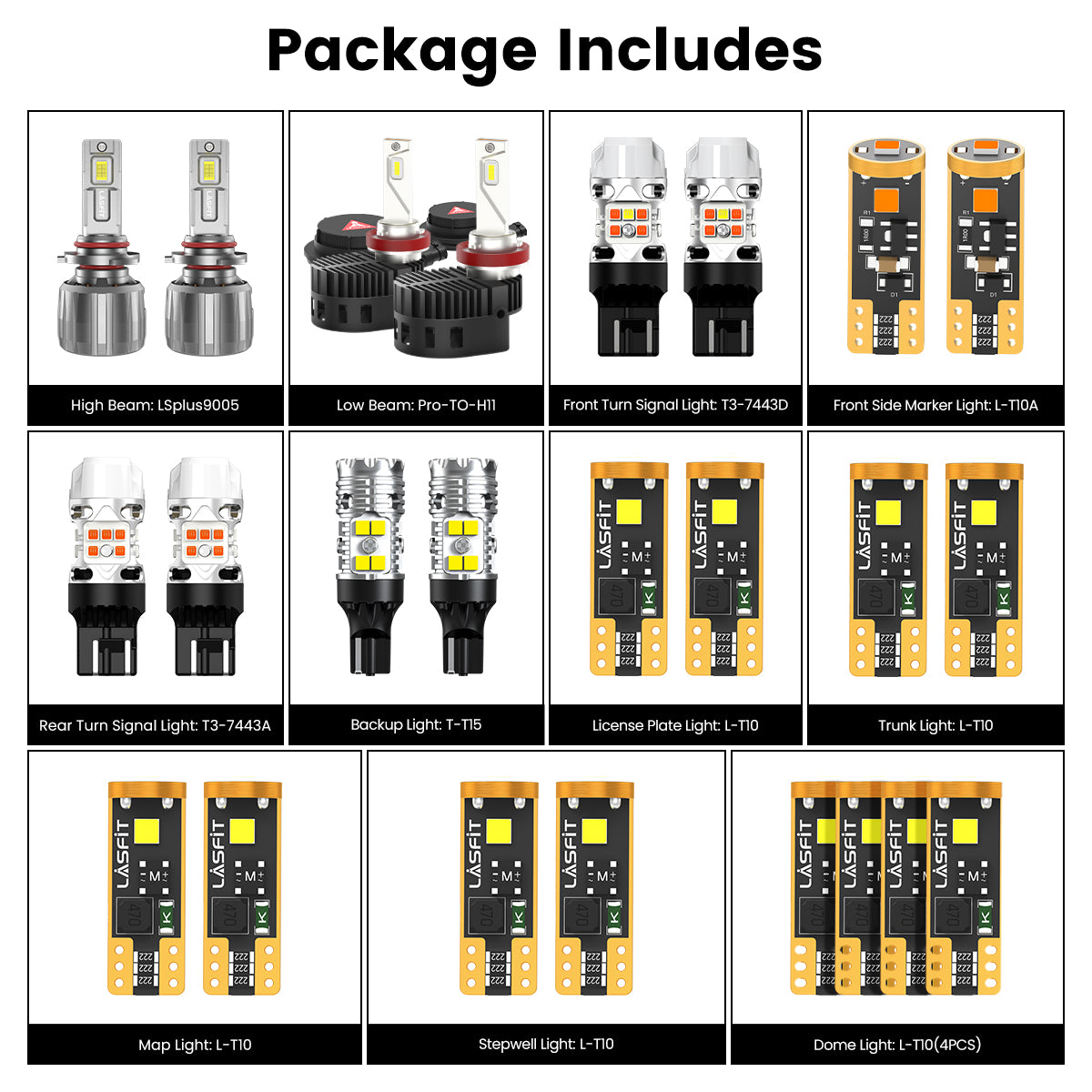

| Location | Bulb Size | Recommend Product Series | Watt/Lumens(per bulb) | Key Features |
|---|---|---|---|---|

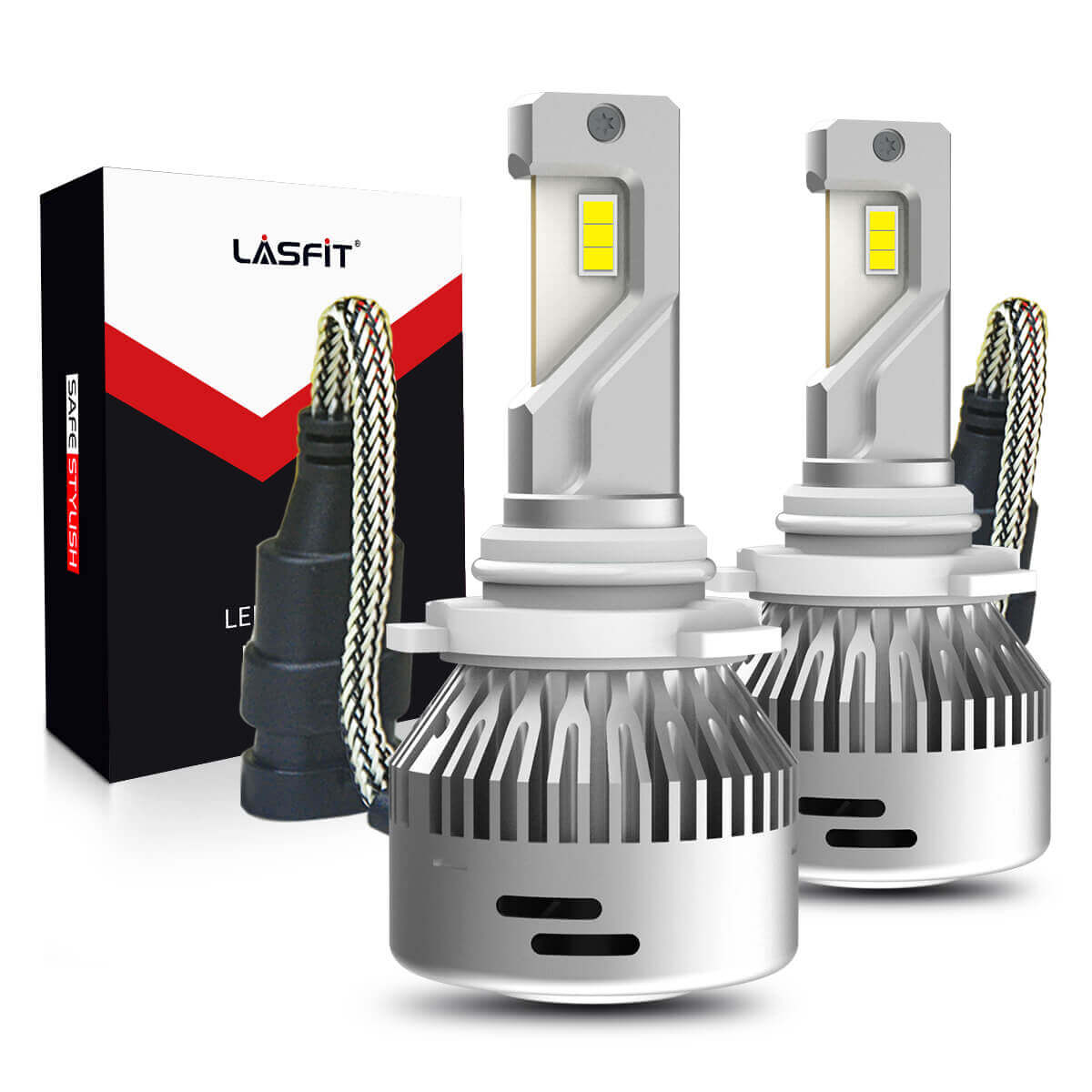

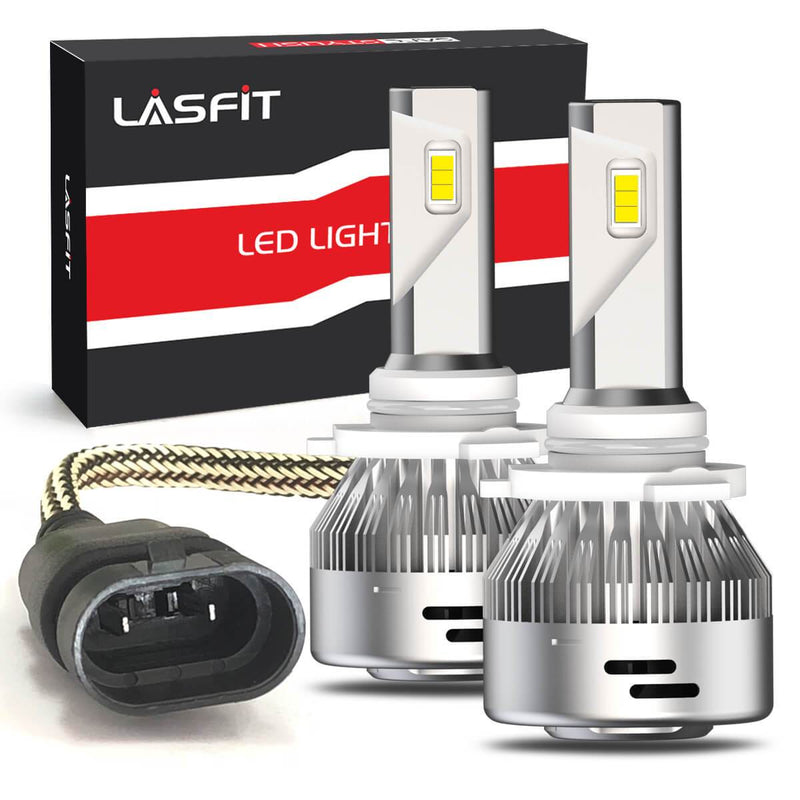

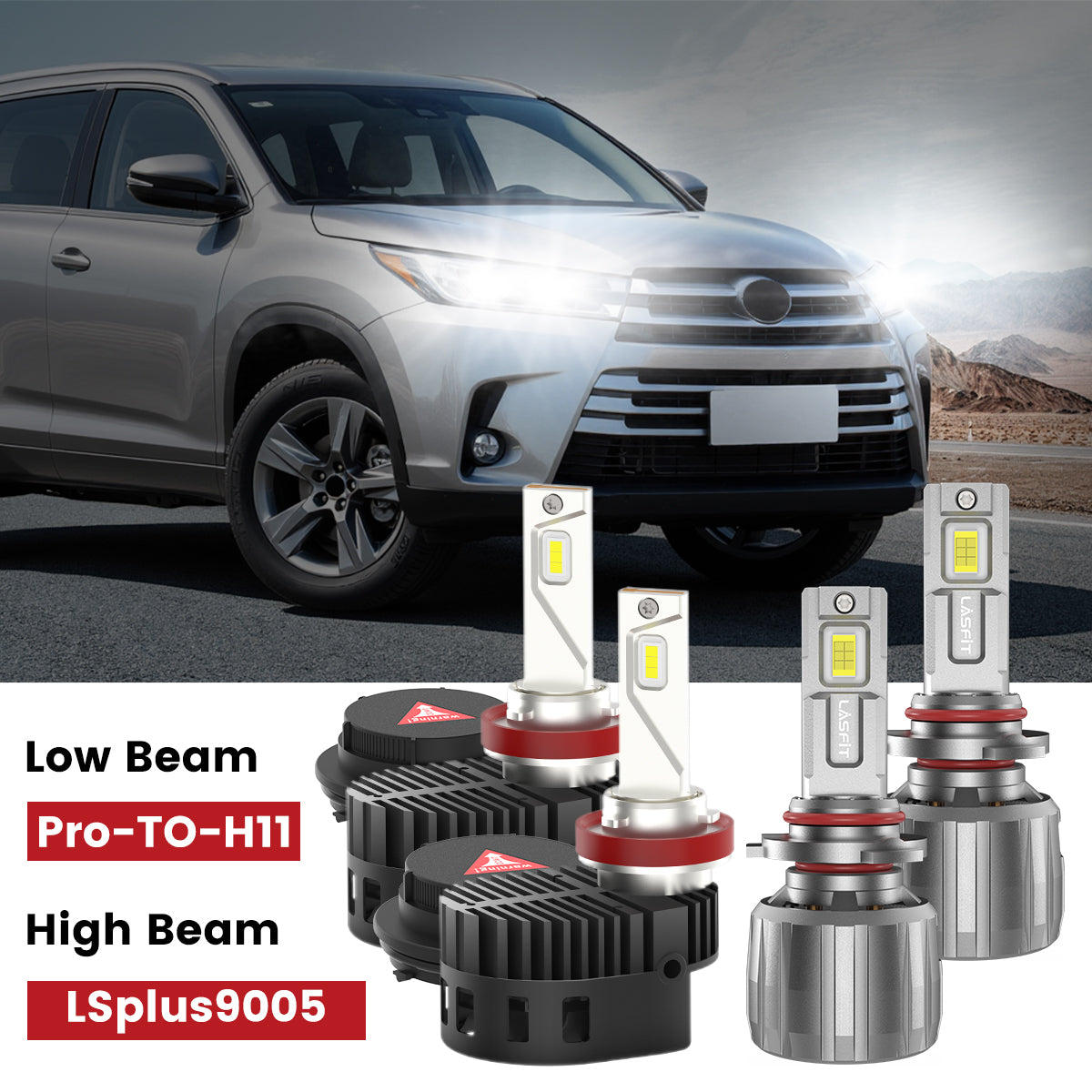

| High Beam | 9005 | LS Plus Series | 65W/6500LM | ultra-high brightness, non-polarity design, optimal beam pattern |
| Low Beam | H11 | Pro-DC Series | 50W/5000LM | custom-fit, OEM-design extended dust cover, optimized beam pattern |

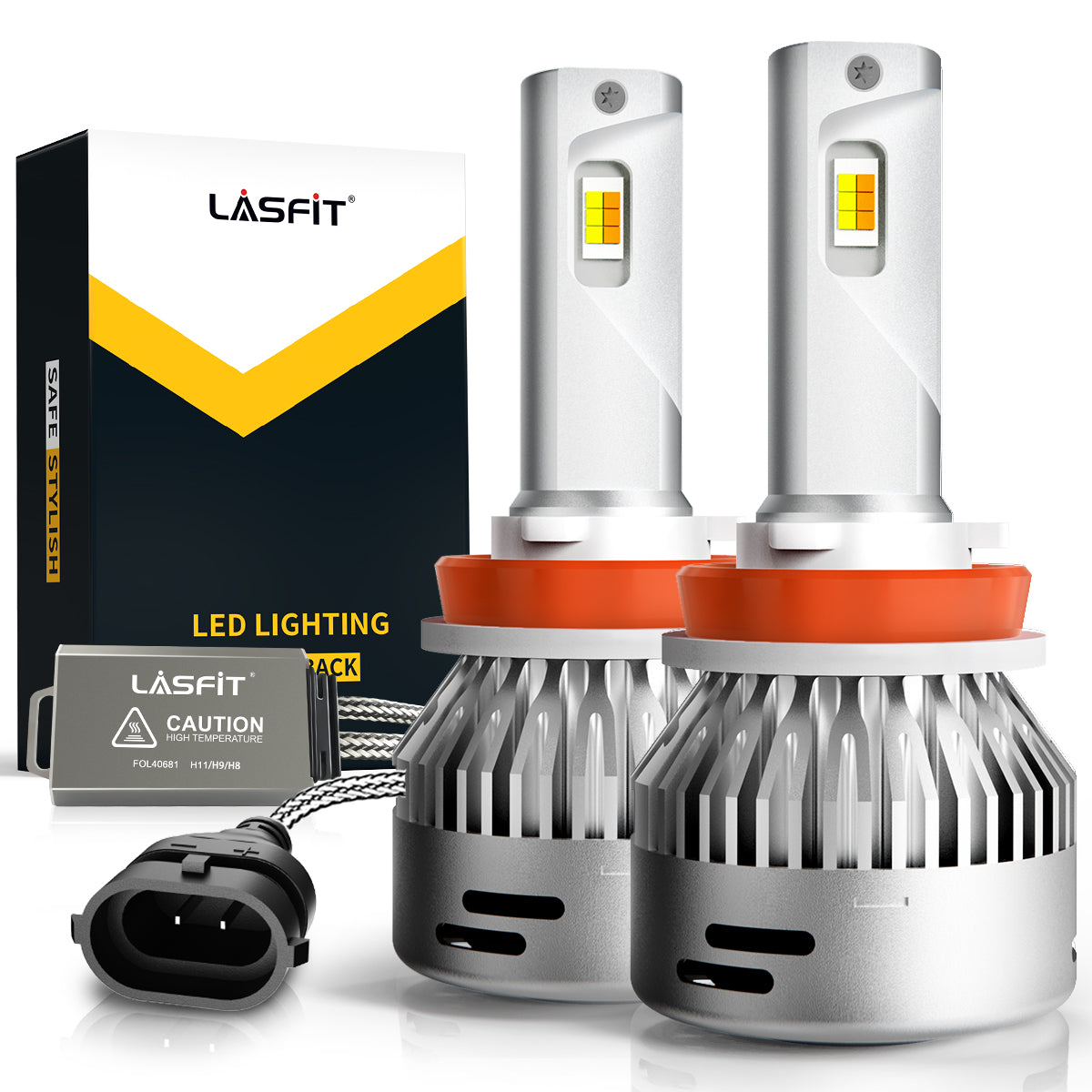

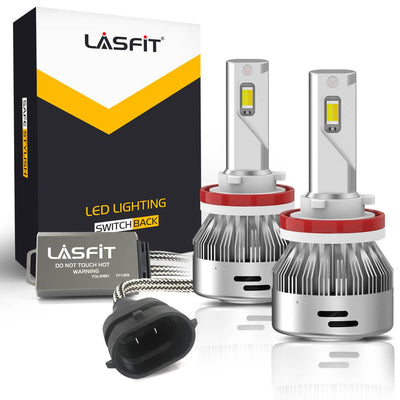

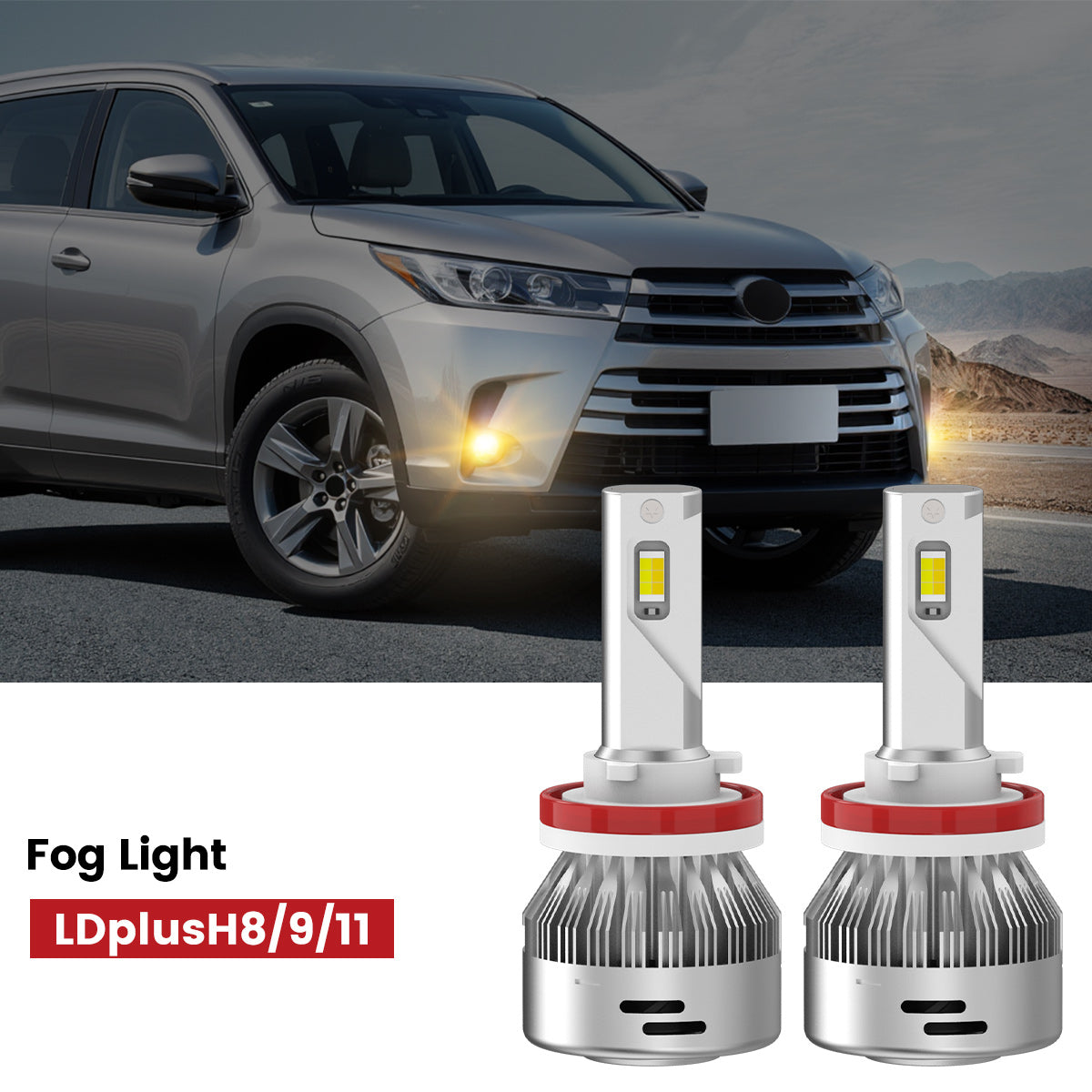

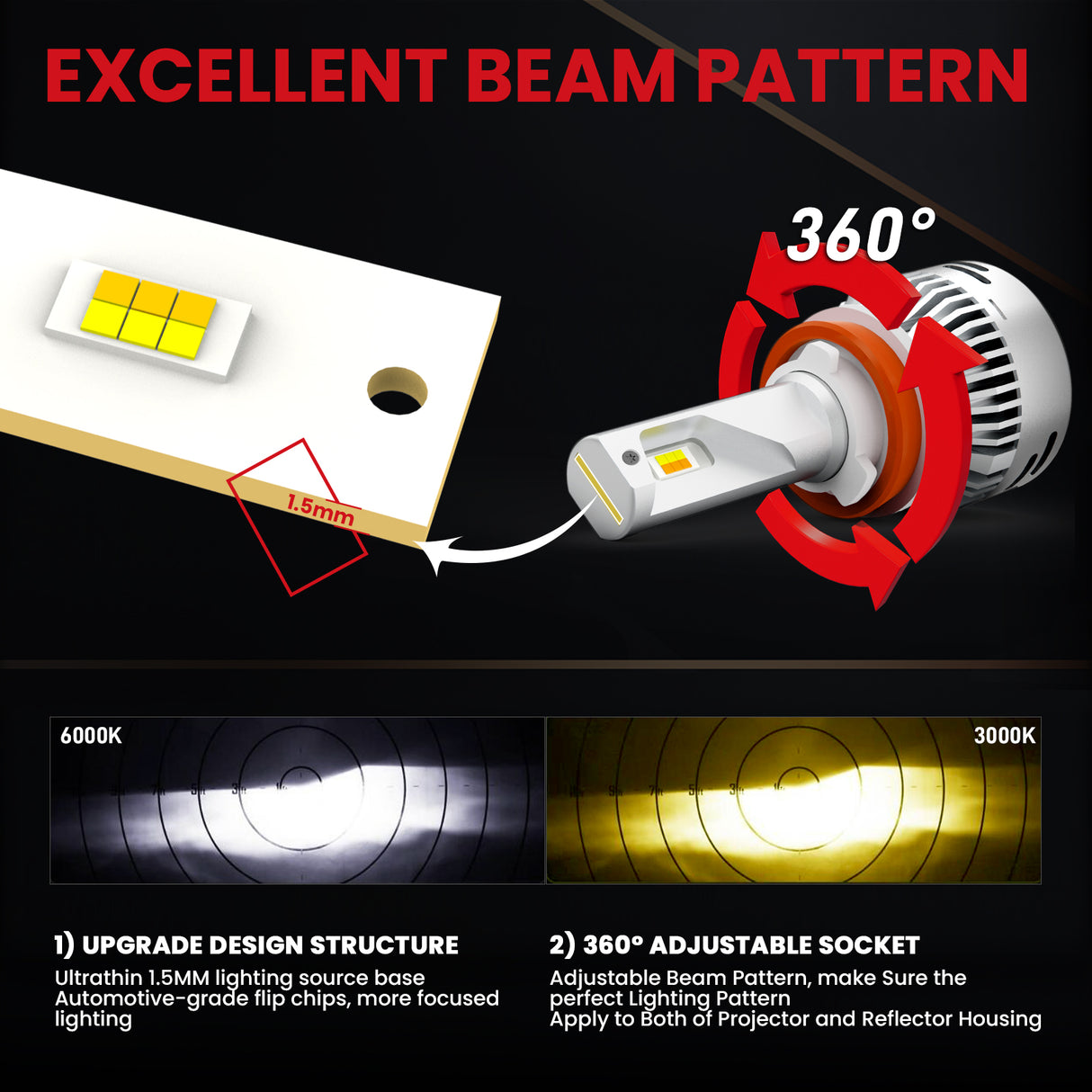

| Fog Light | H11 | LD Plus Series | 30W/3000LM | switchback dual color design, 360° illumination, enhanced driving safety |

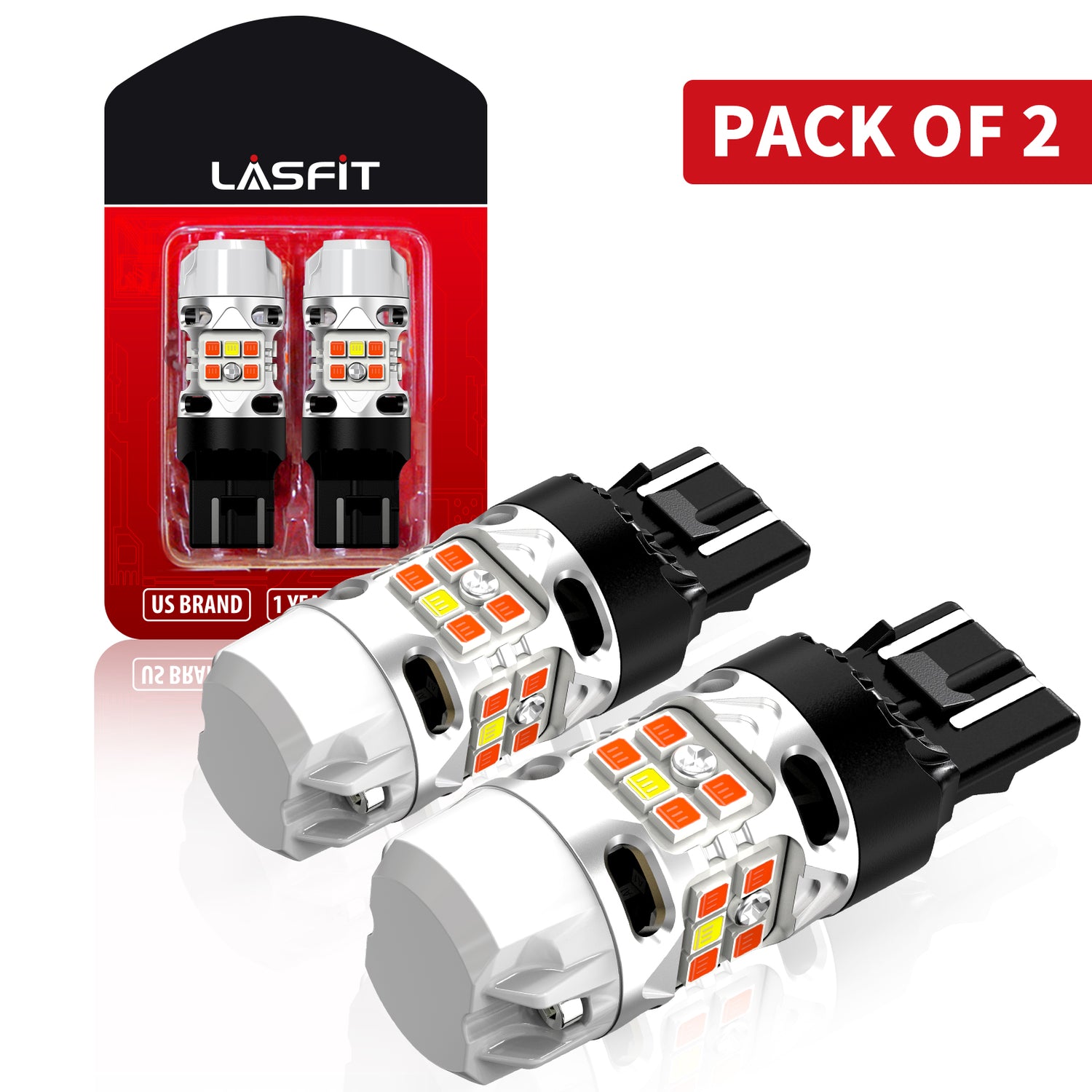

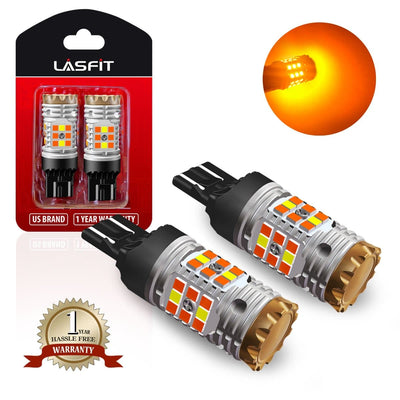

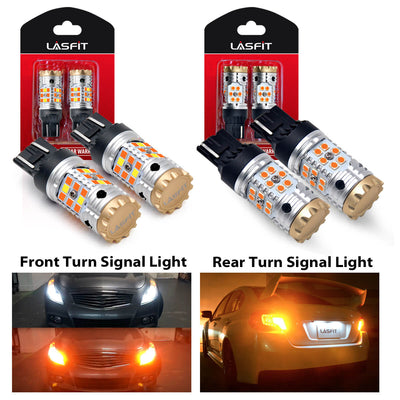

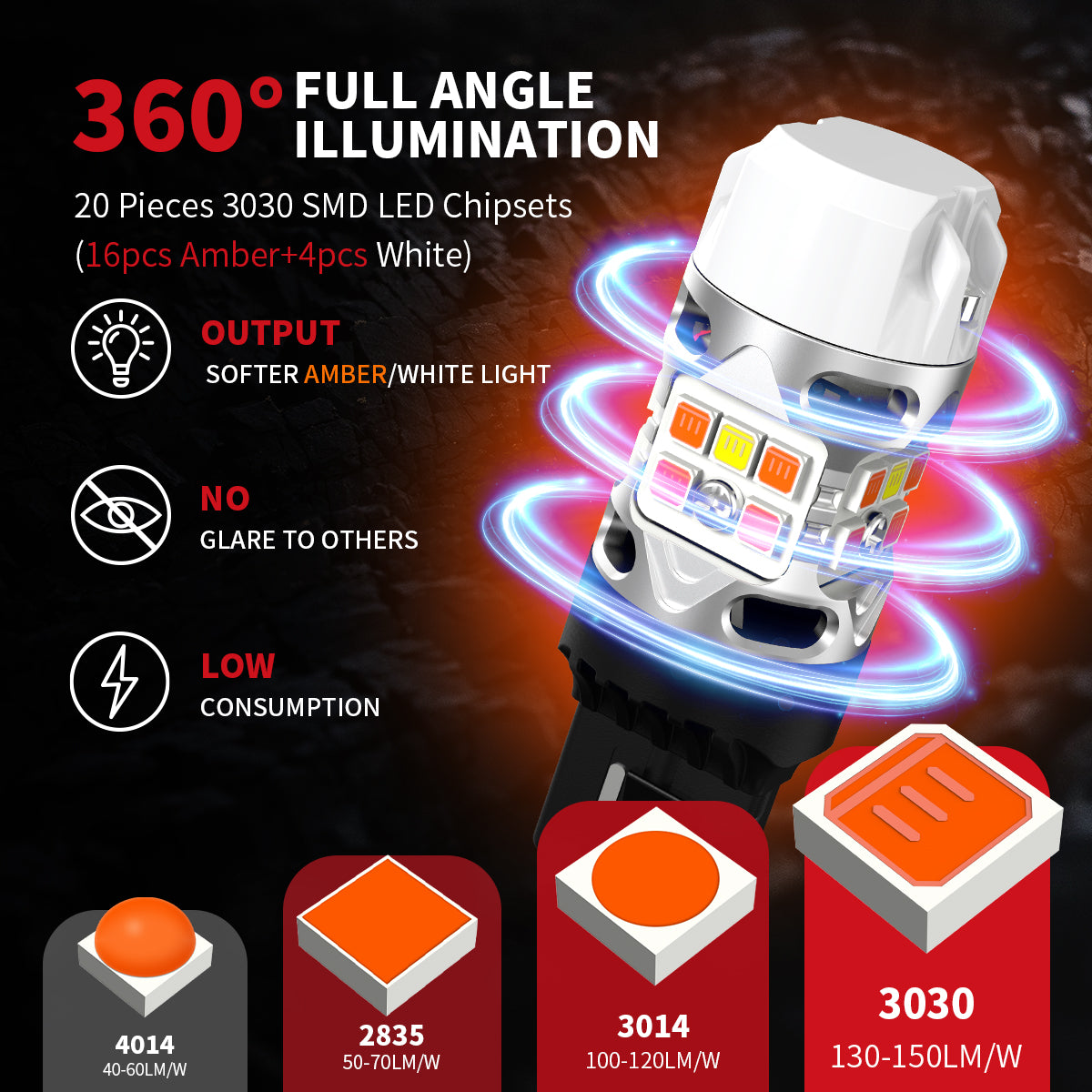

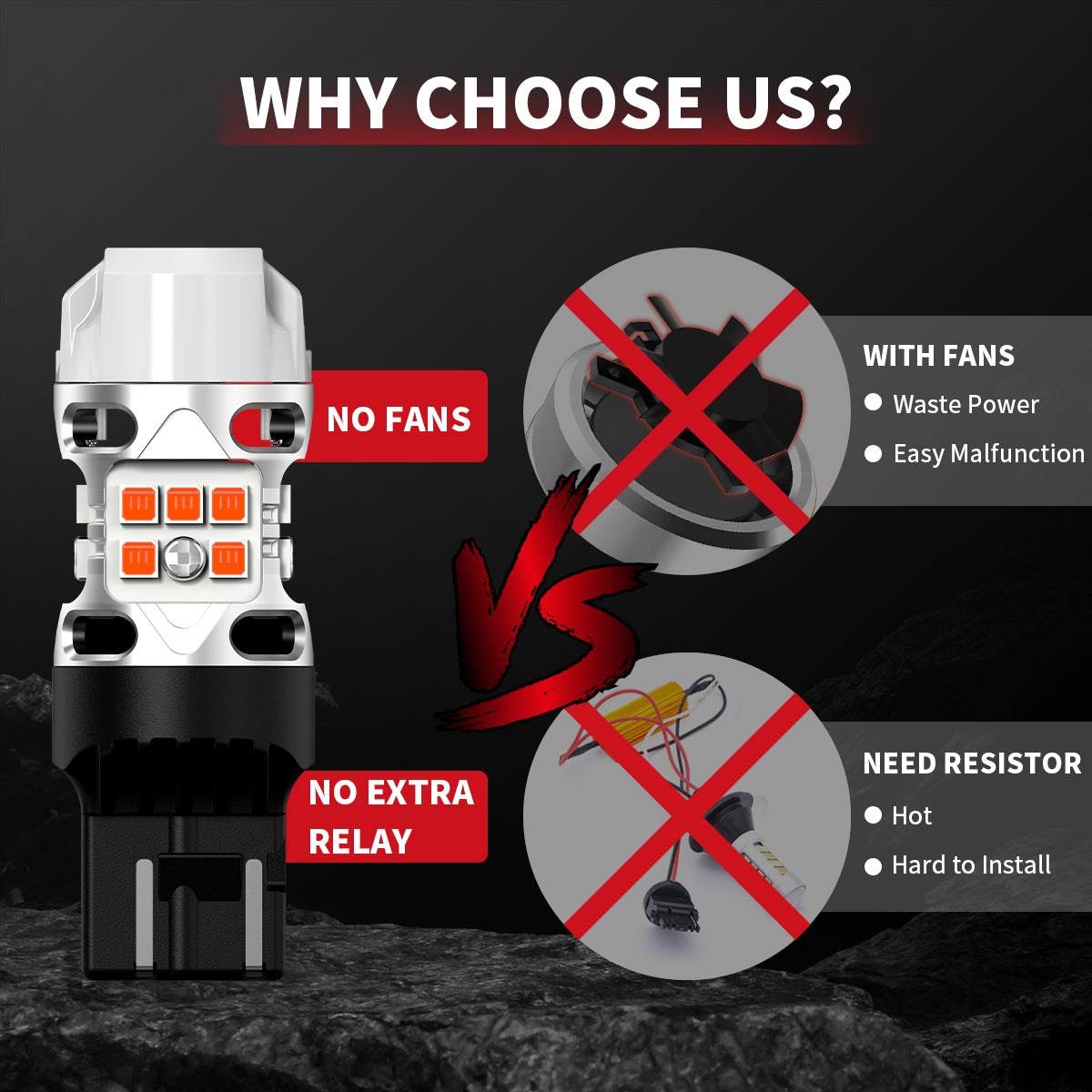

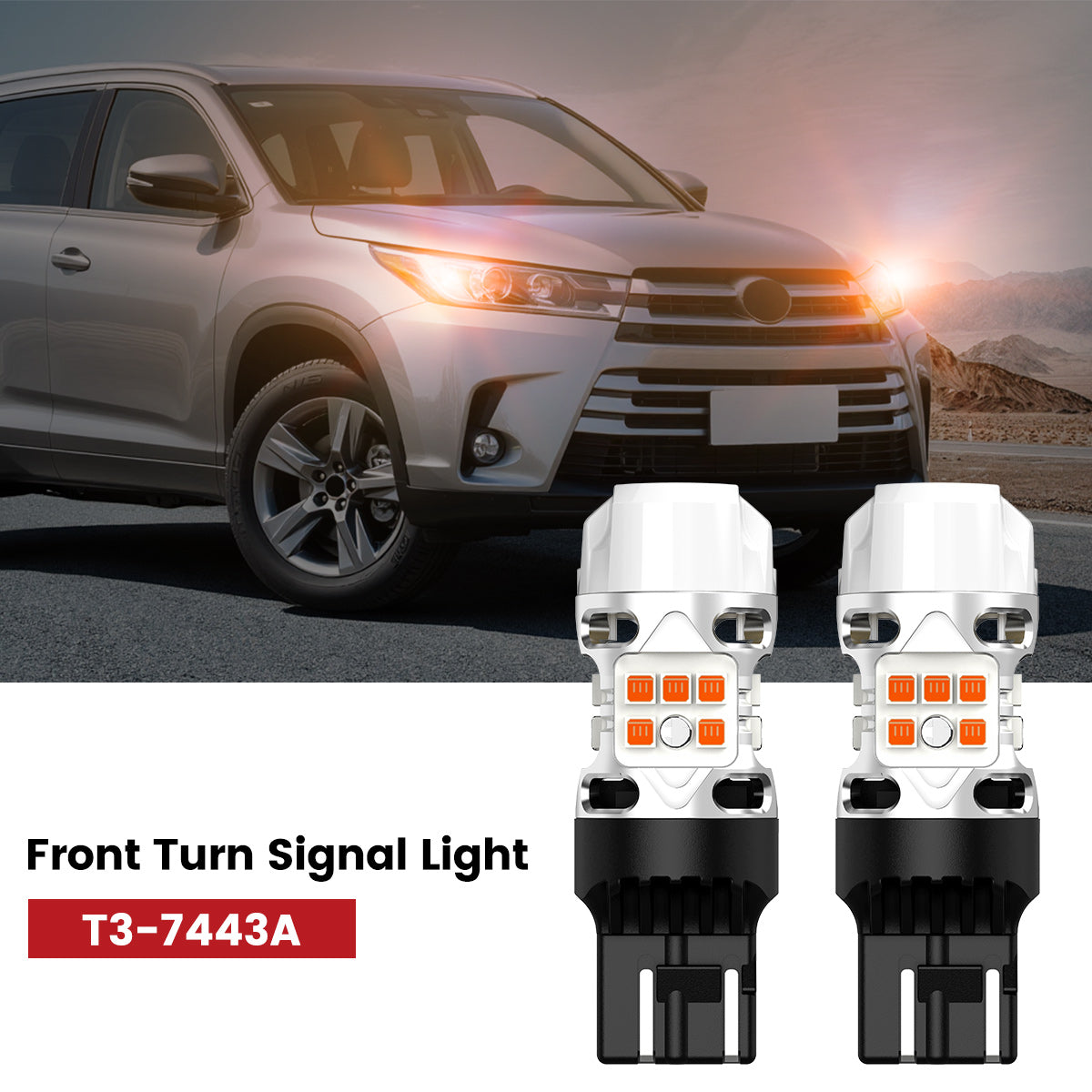

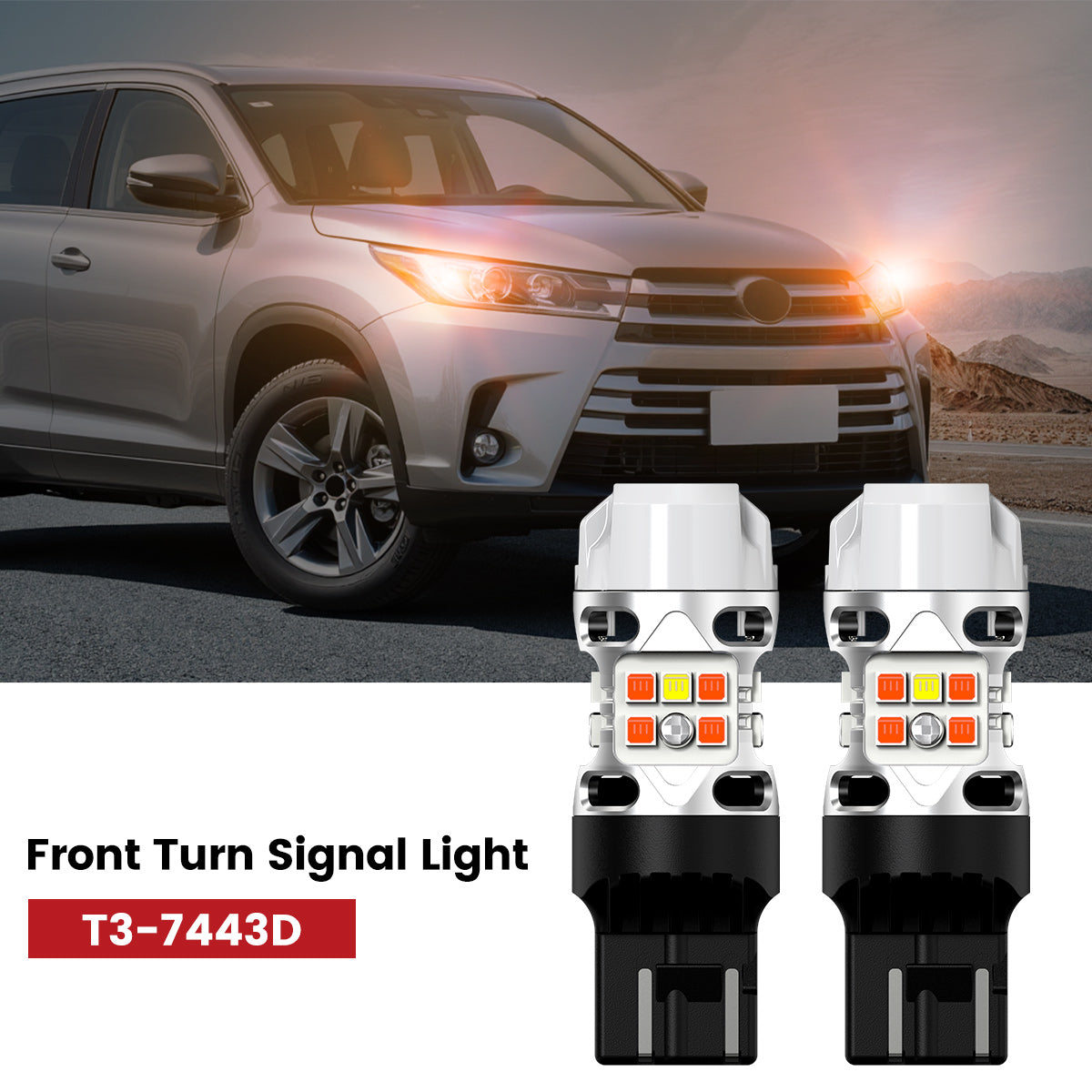

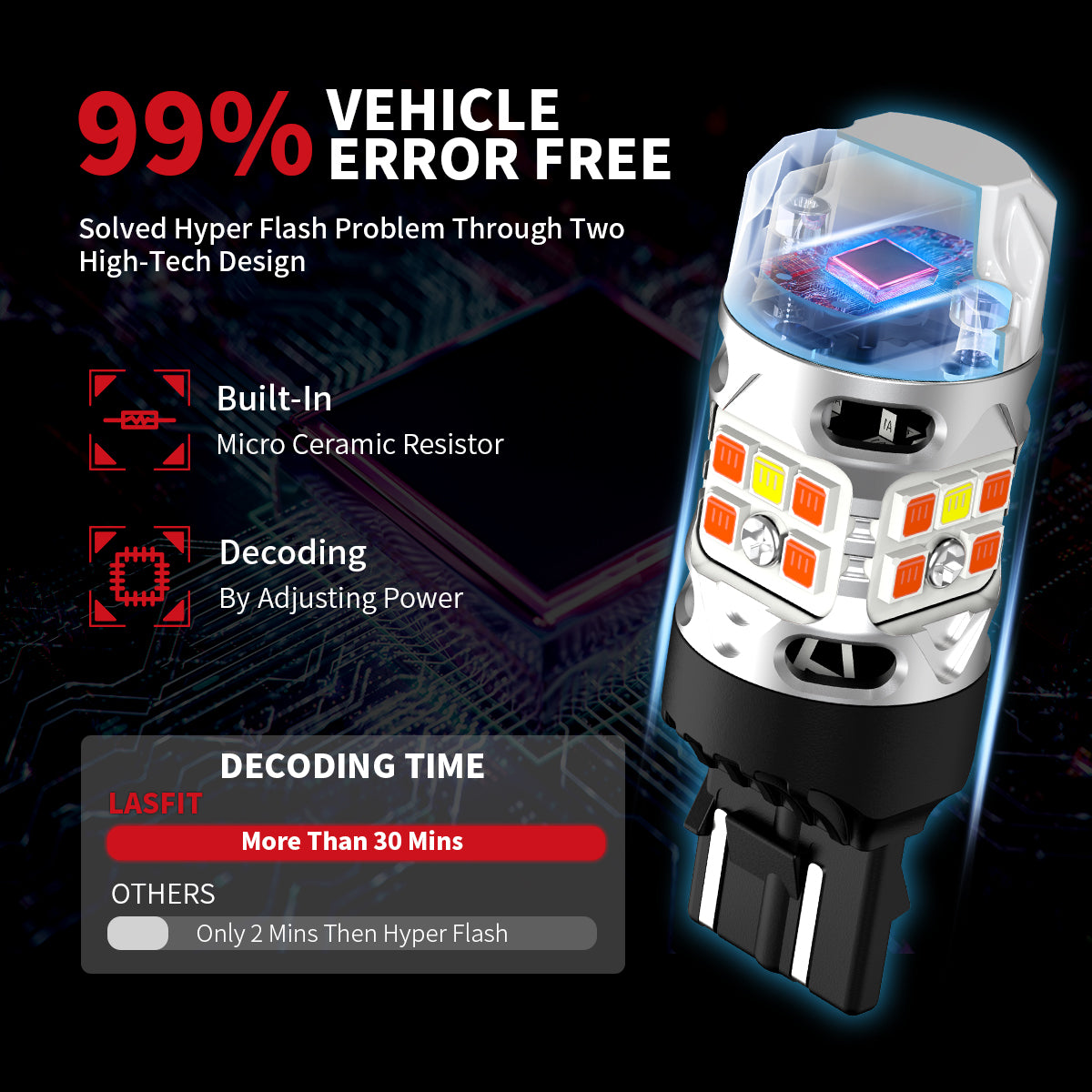

| Front Turn Signal Light | 7443 | T3-T20 Series | 24W/2000LM | dual-color switchback design, built-in canbus decorder, plug and play |
| Front Turn Signal Light | 7443 | T3-T20 Series | 24W/2000LM | amber, built-in canbus decorder, plug and play |

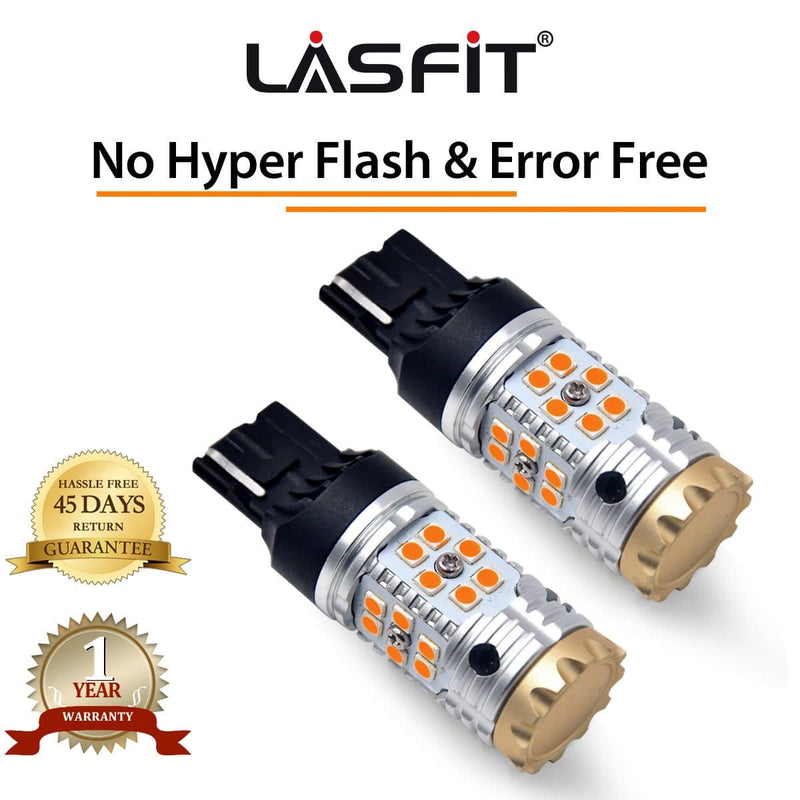

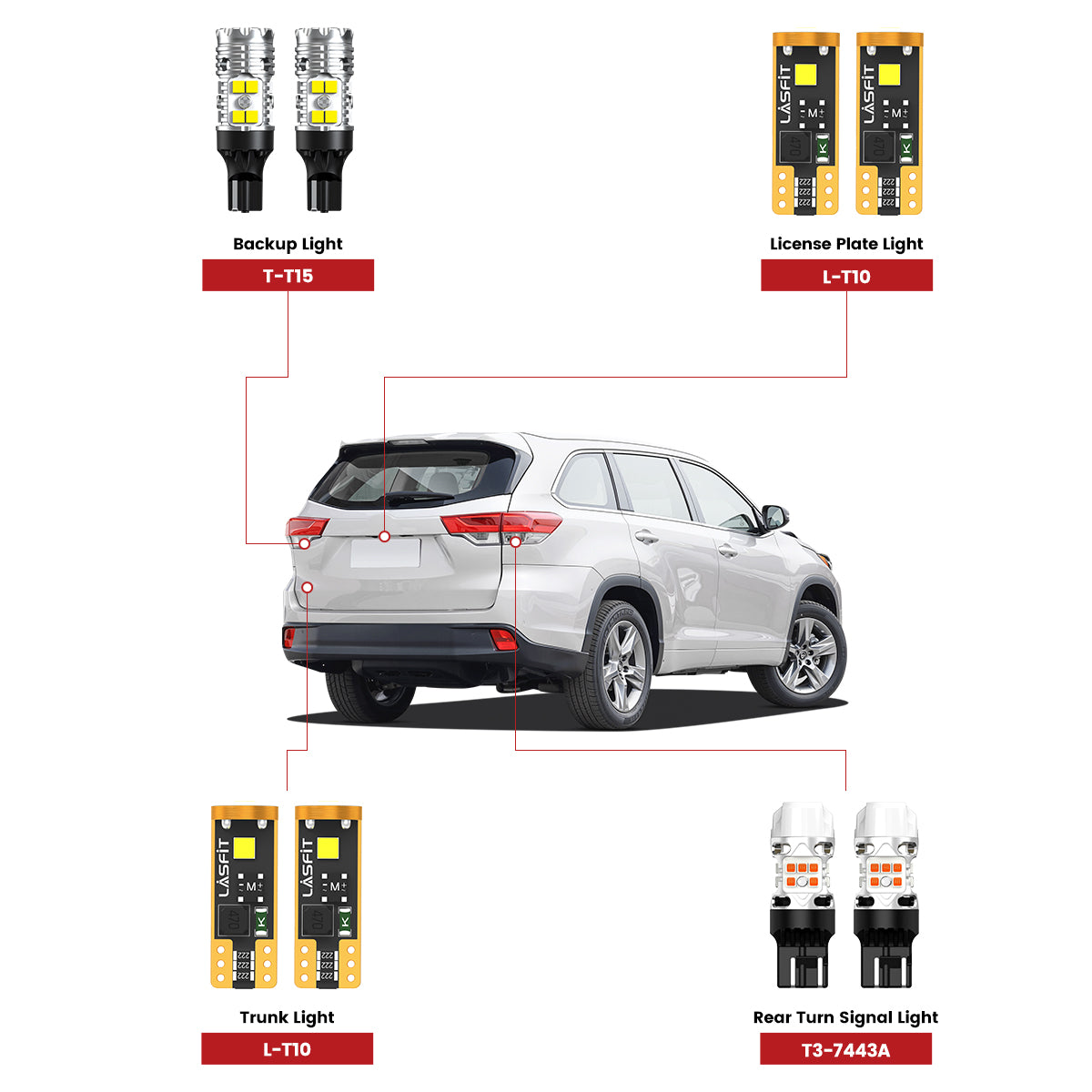

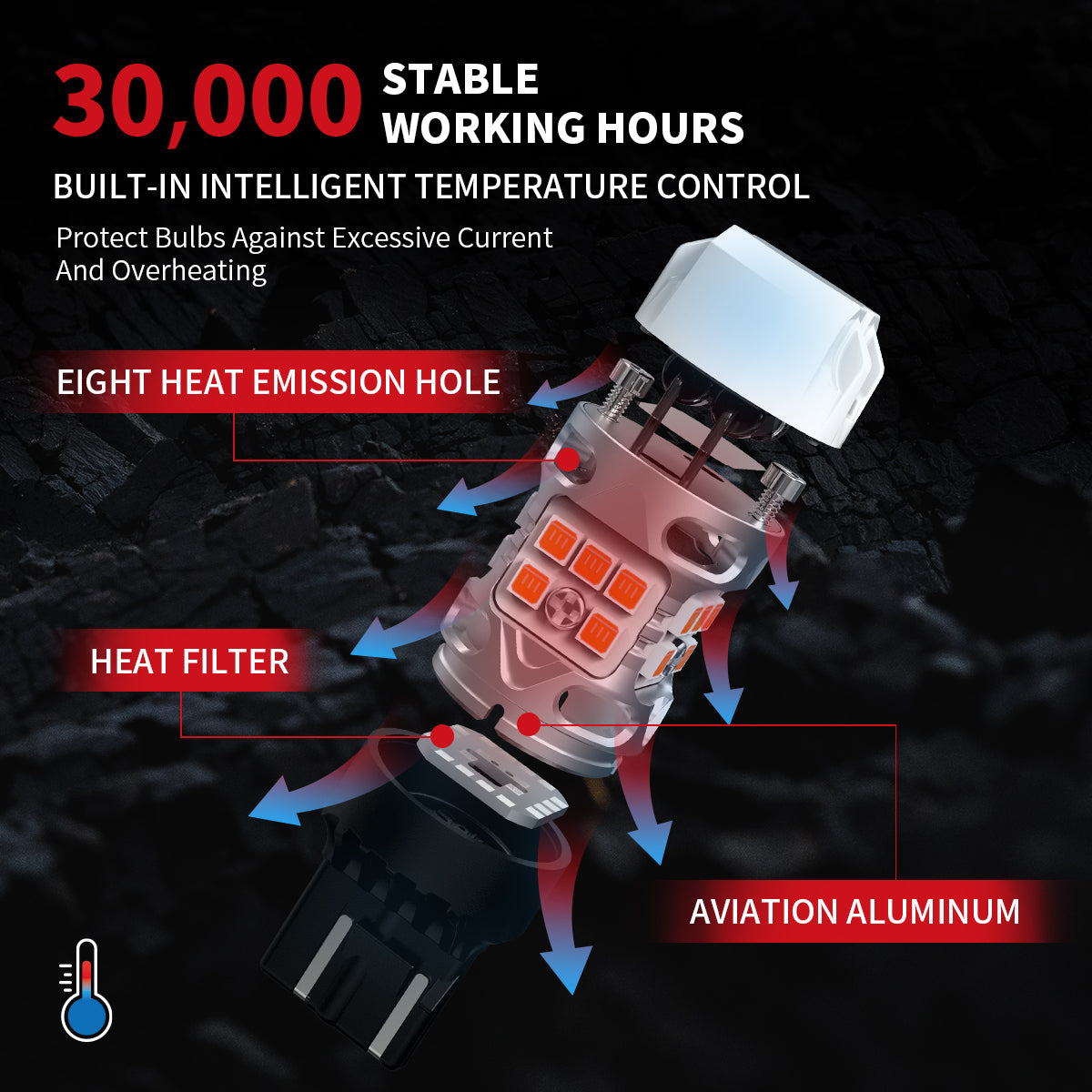

| Rear Turn Signal Light | 7443 | T3-T20 Series | 24W/2000LM | amber, no error code, easy installation |

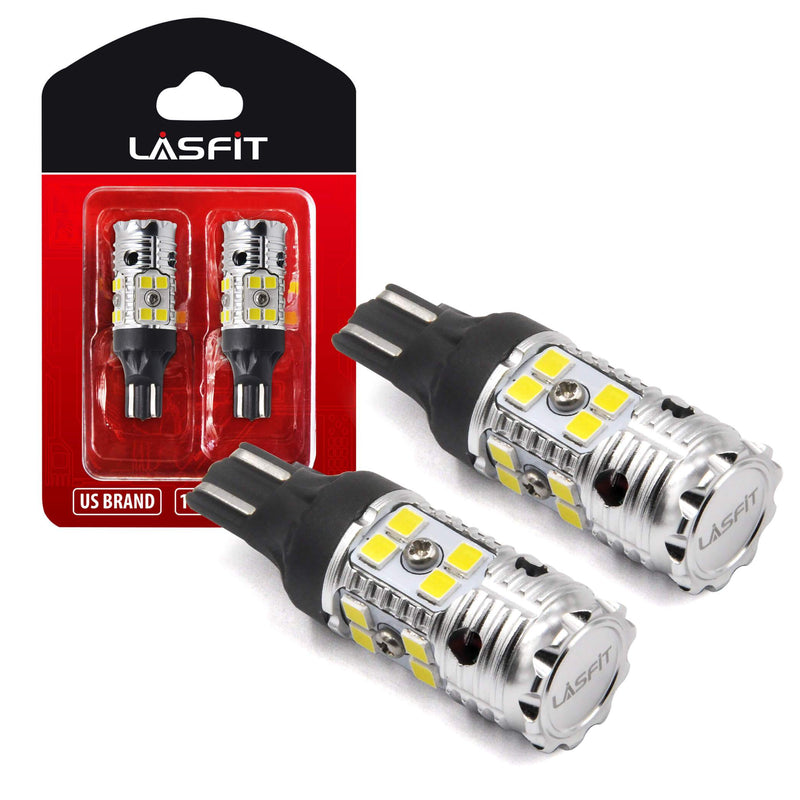

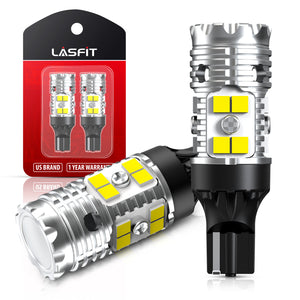

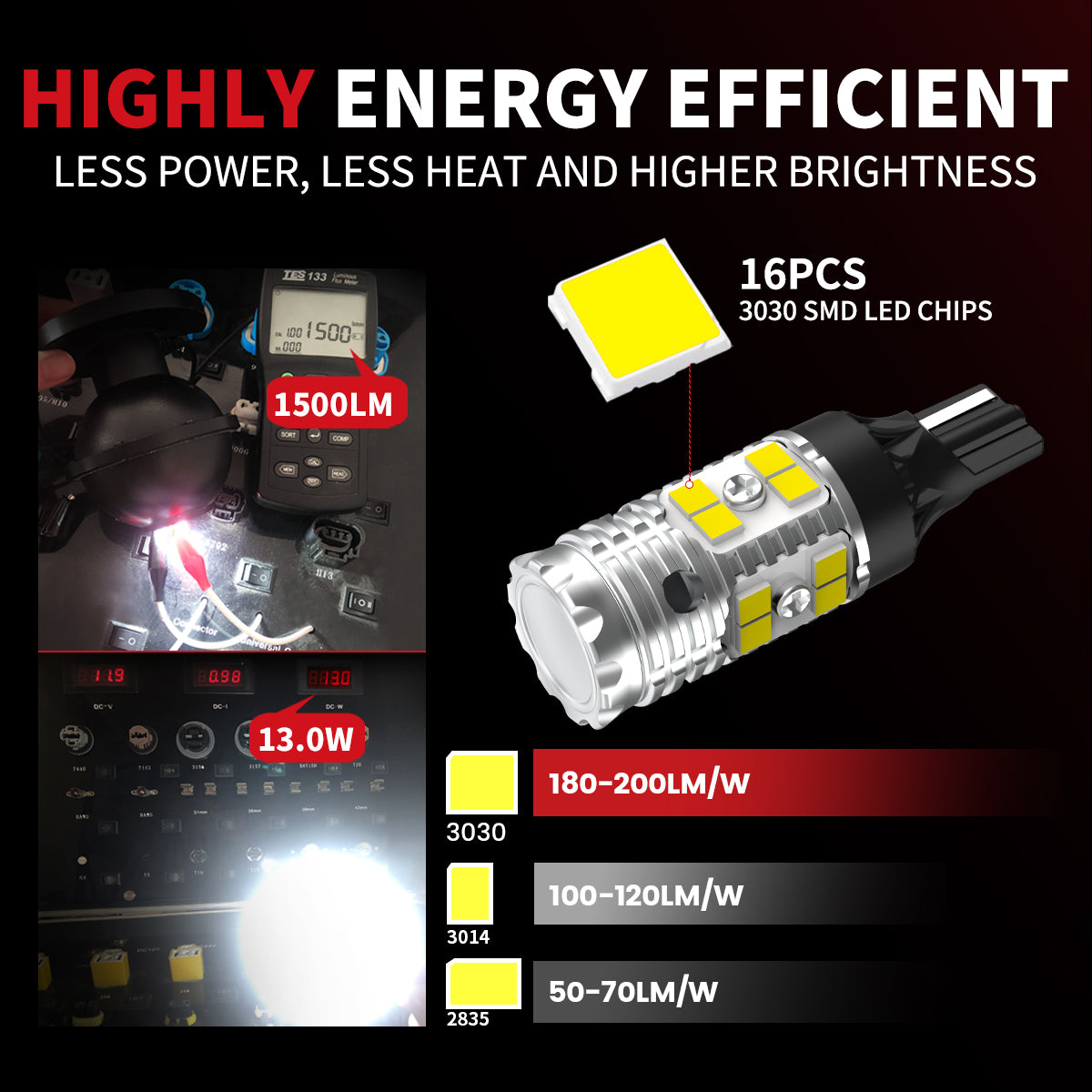

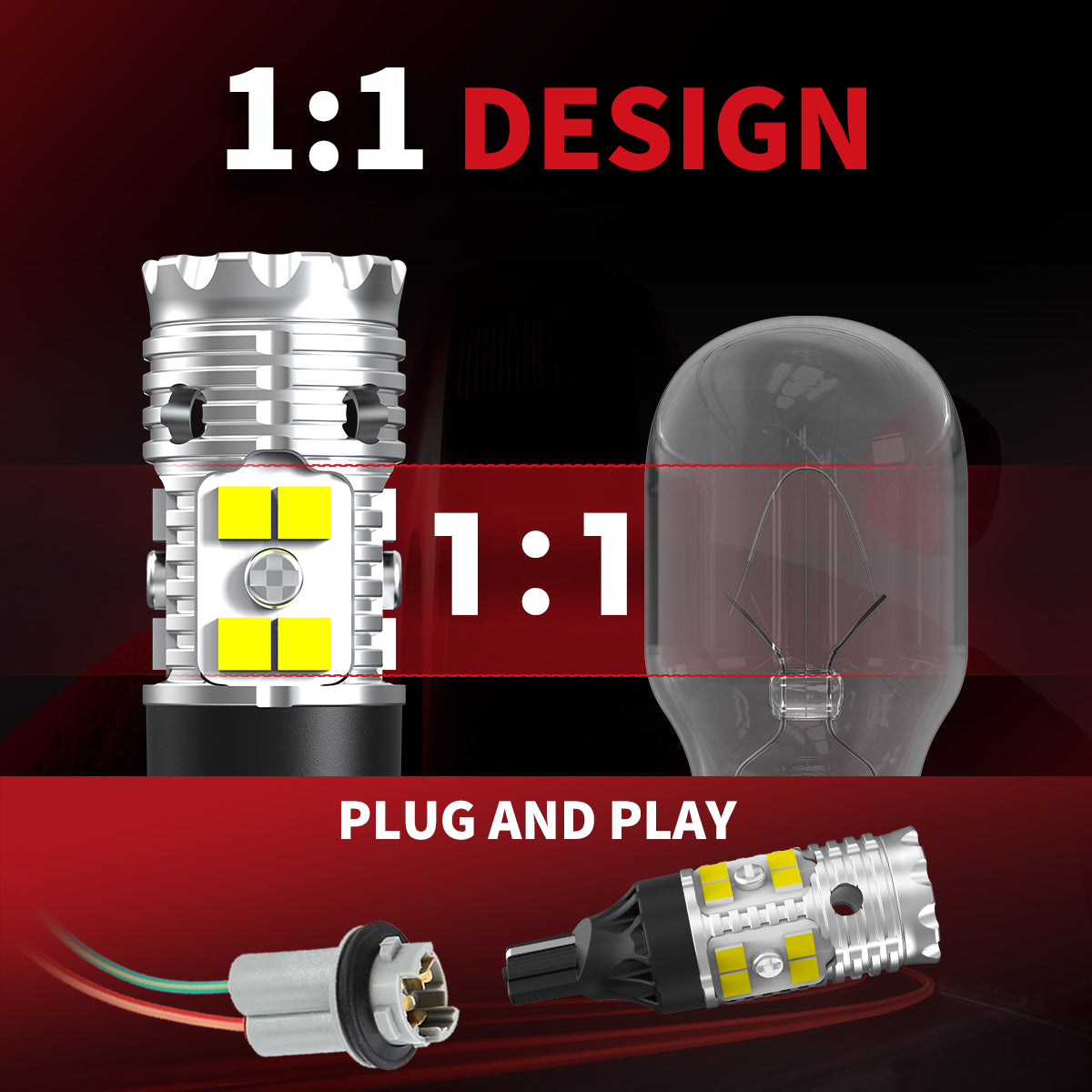

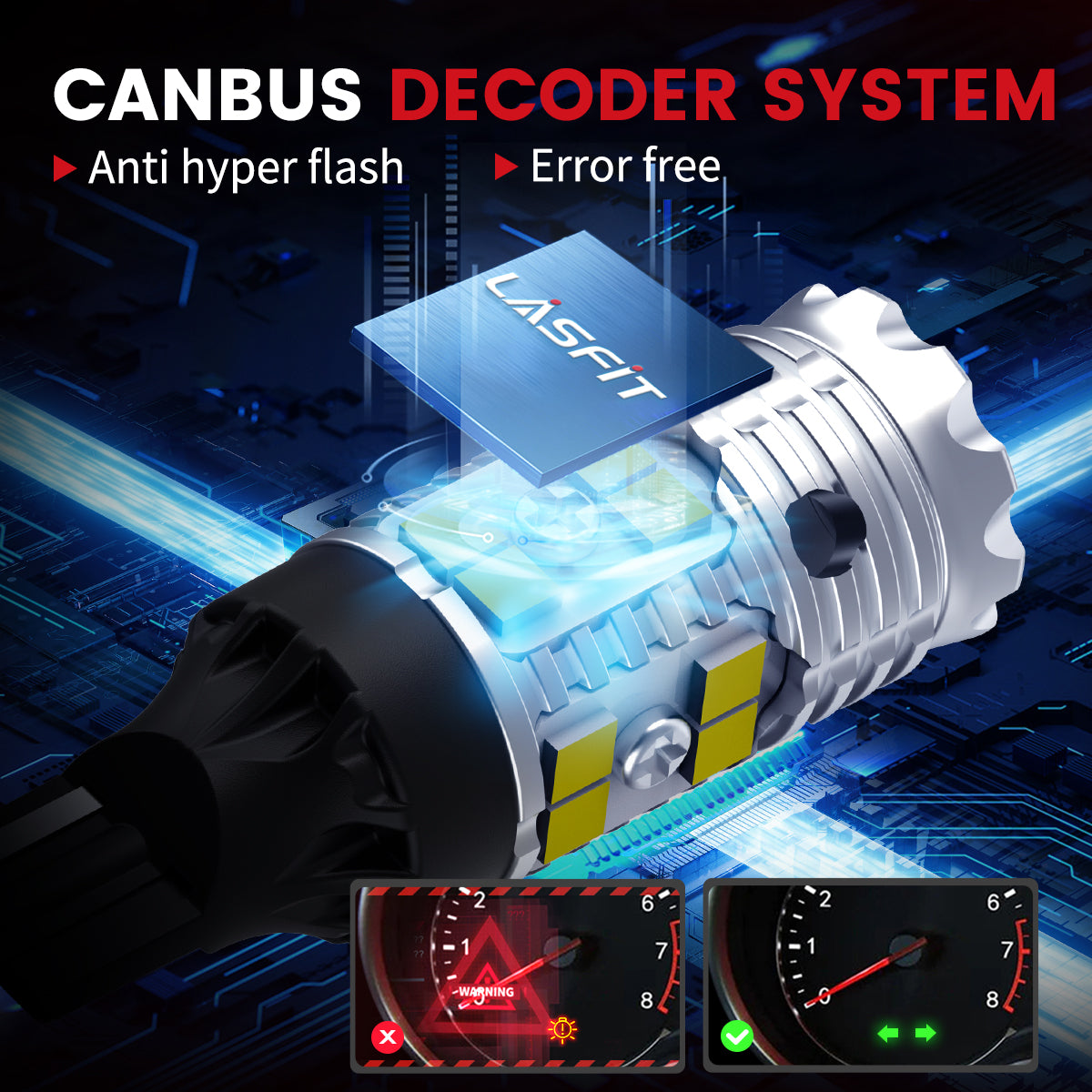

| Backup Light | 921 | T-T15 Series | 13W/1500LM | plug and play installation, canbus error free design |

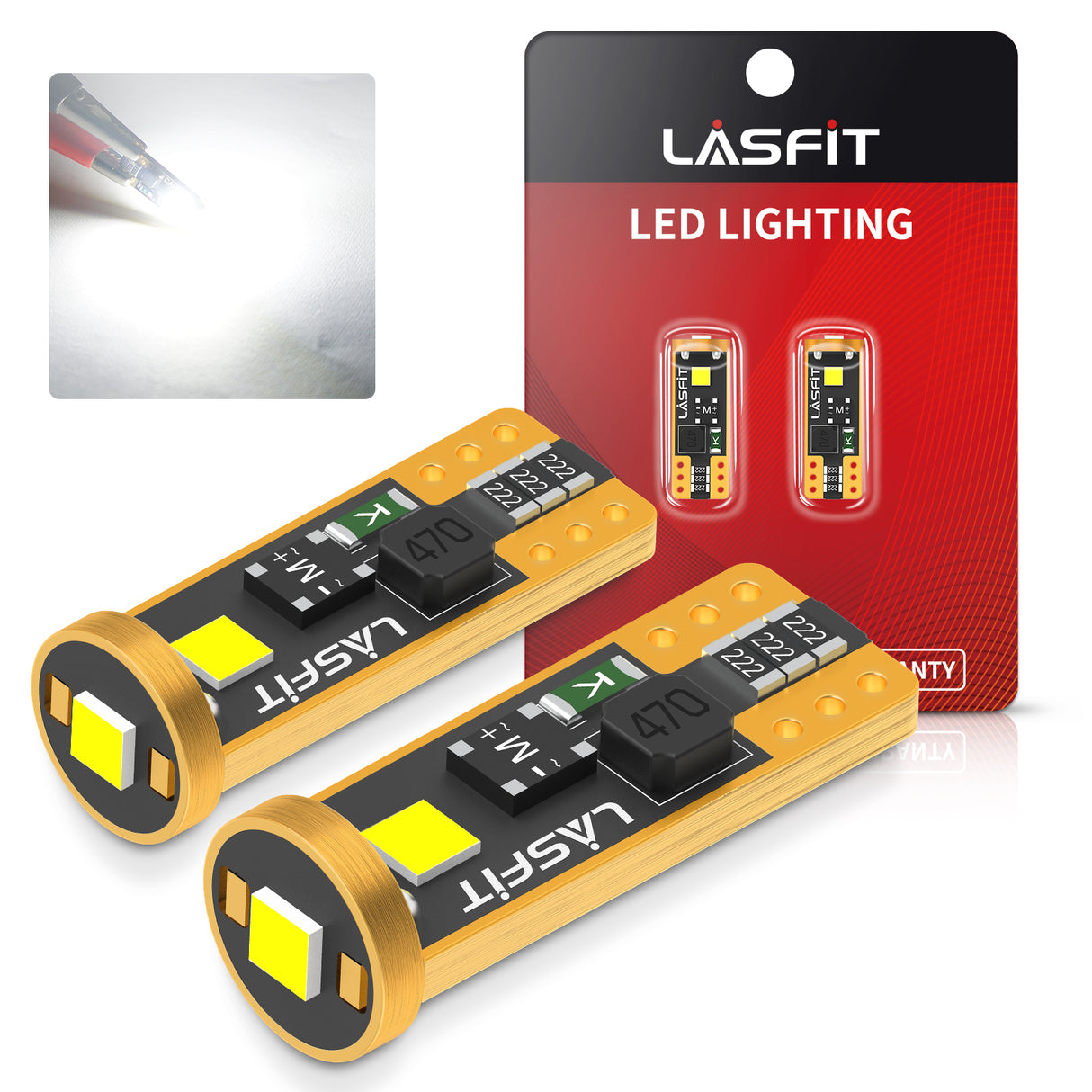

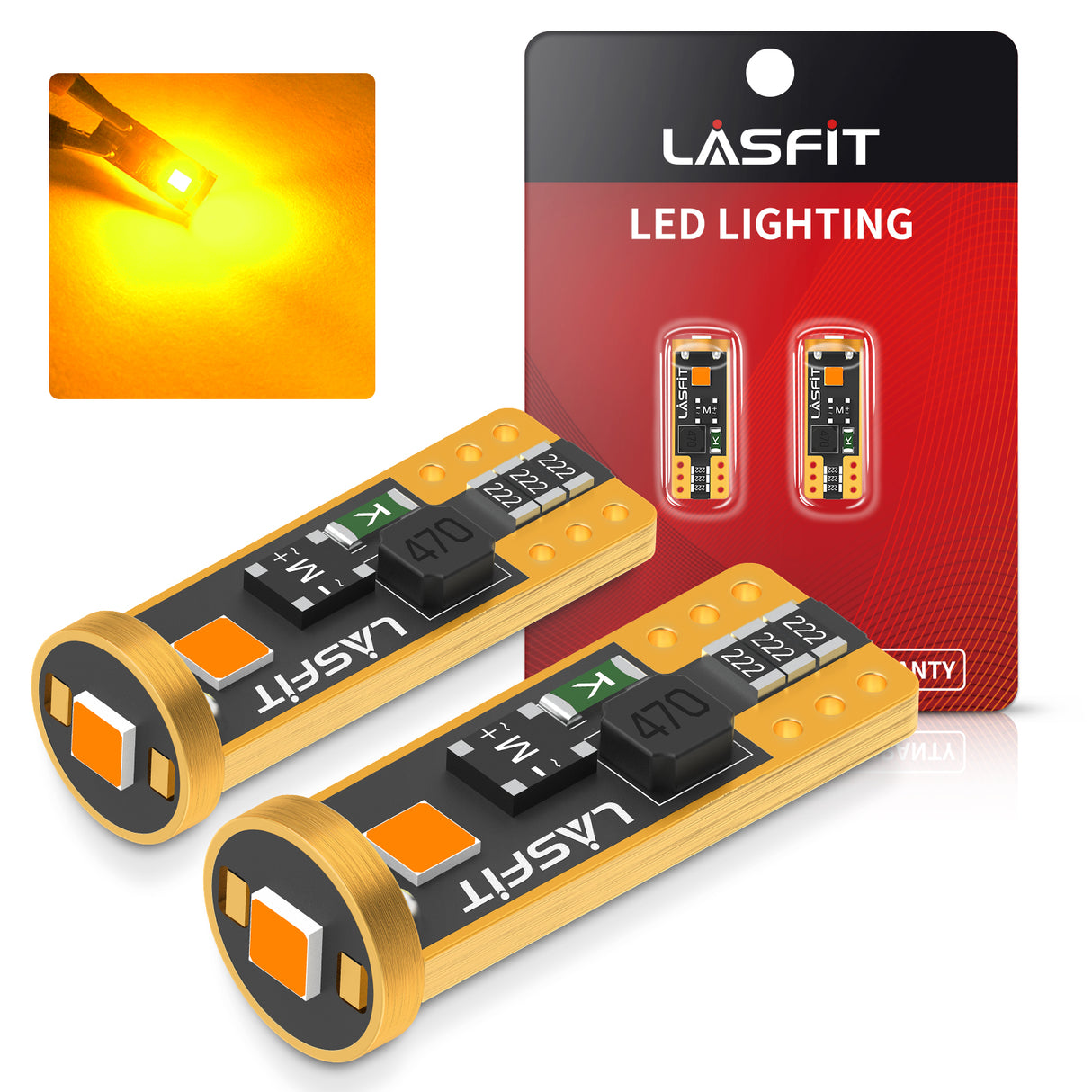

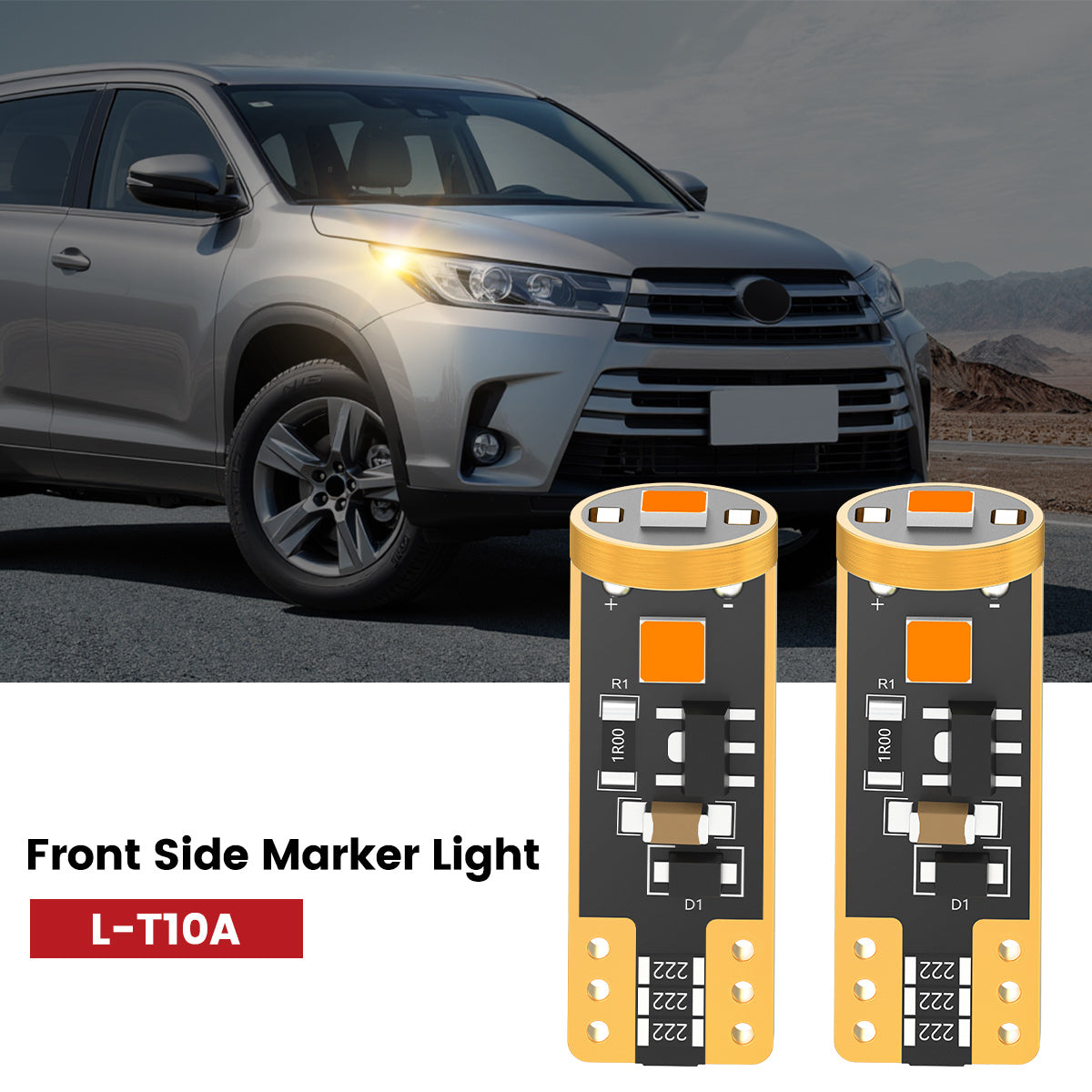

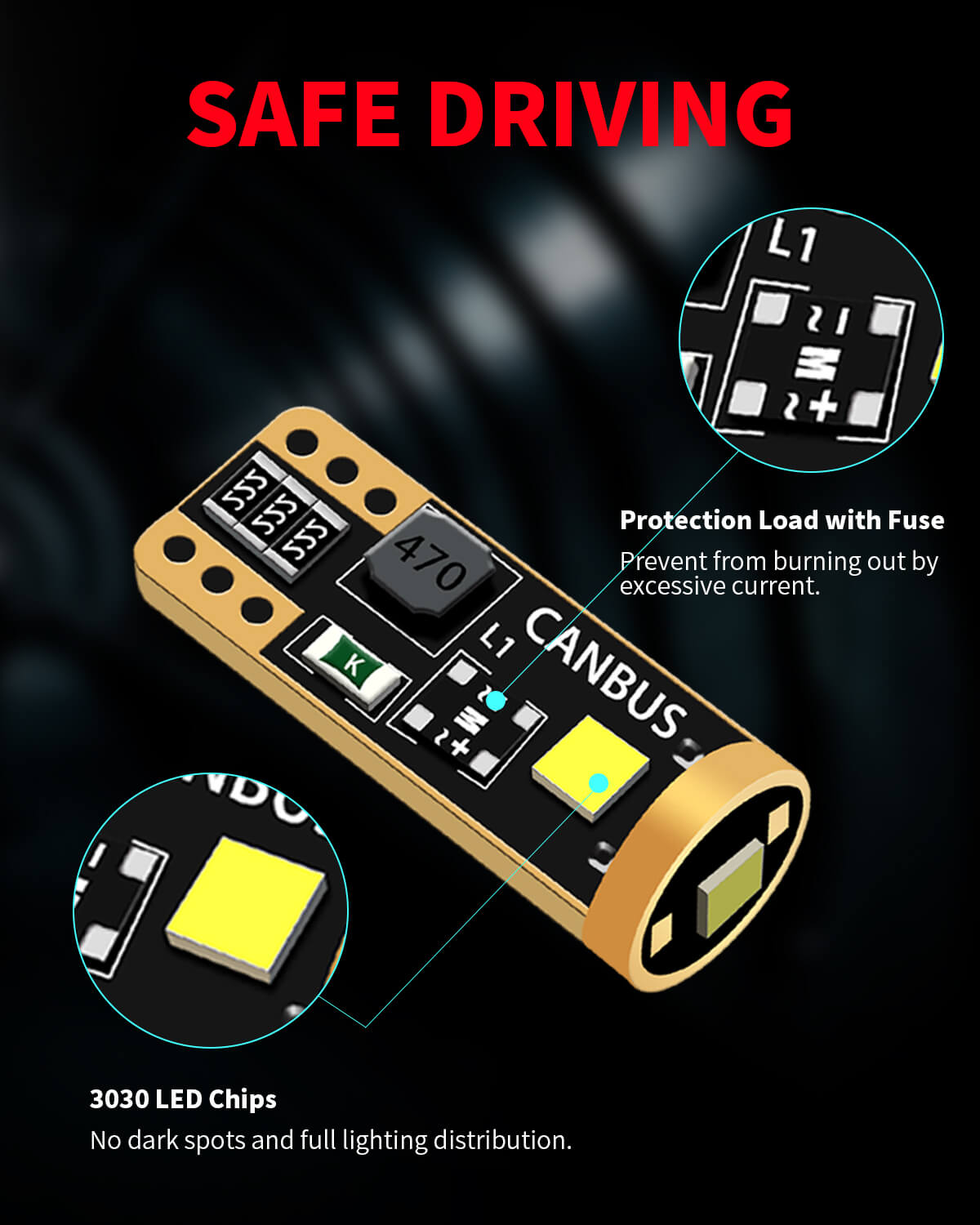

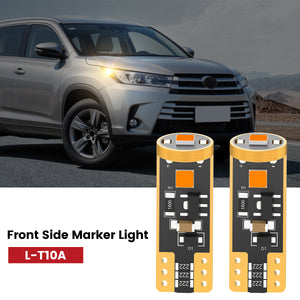

| Front Side Marker Light | 168 | L-T10 Series | 400LM | amber, built-in canbus design, non-polarity design |

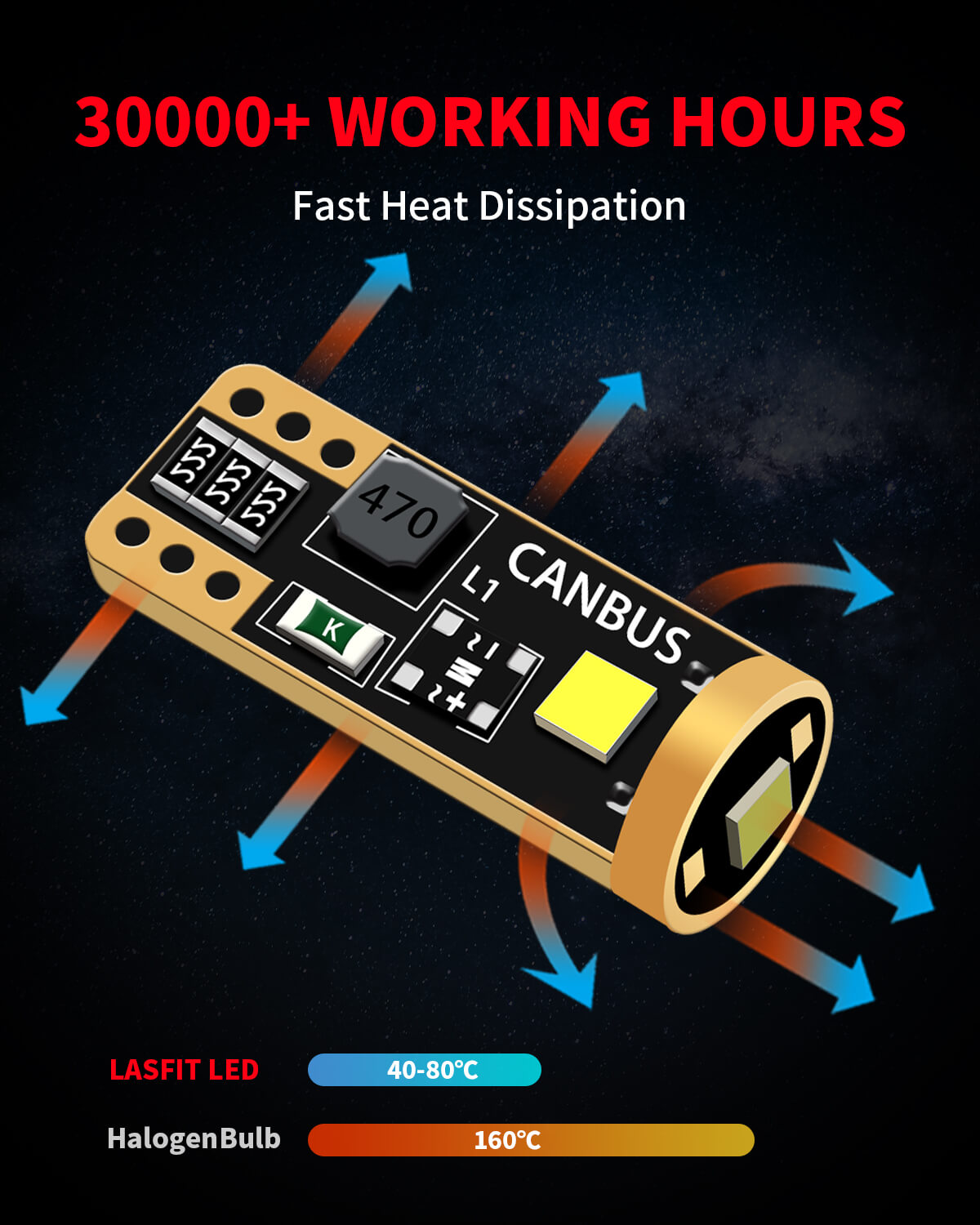

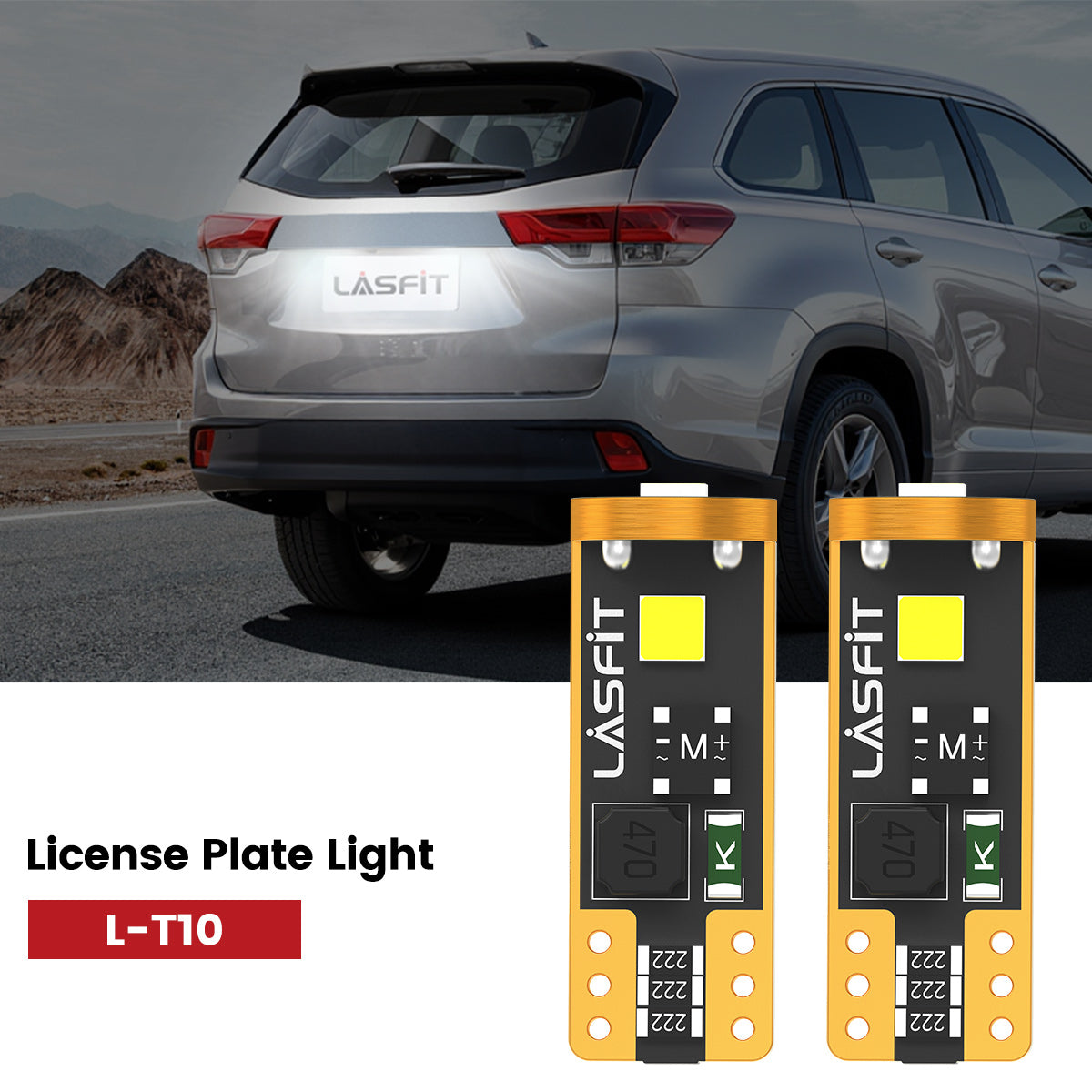

| License Plate Light | 168 | L-T10 Series | 400LM | safety protection, built-in canbus design, non-polarity design |

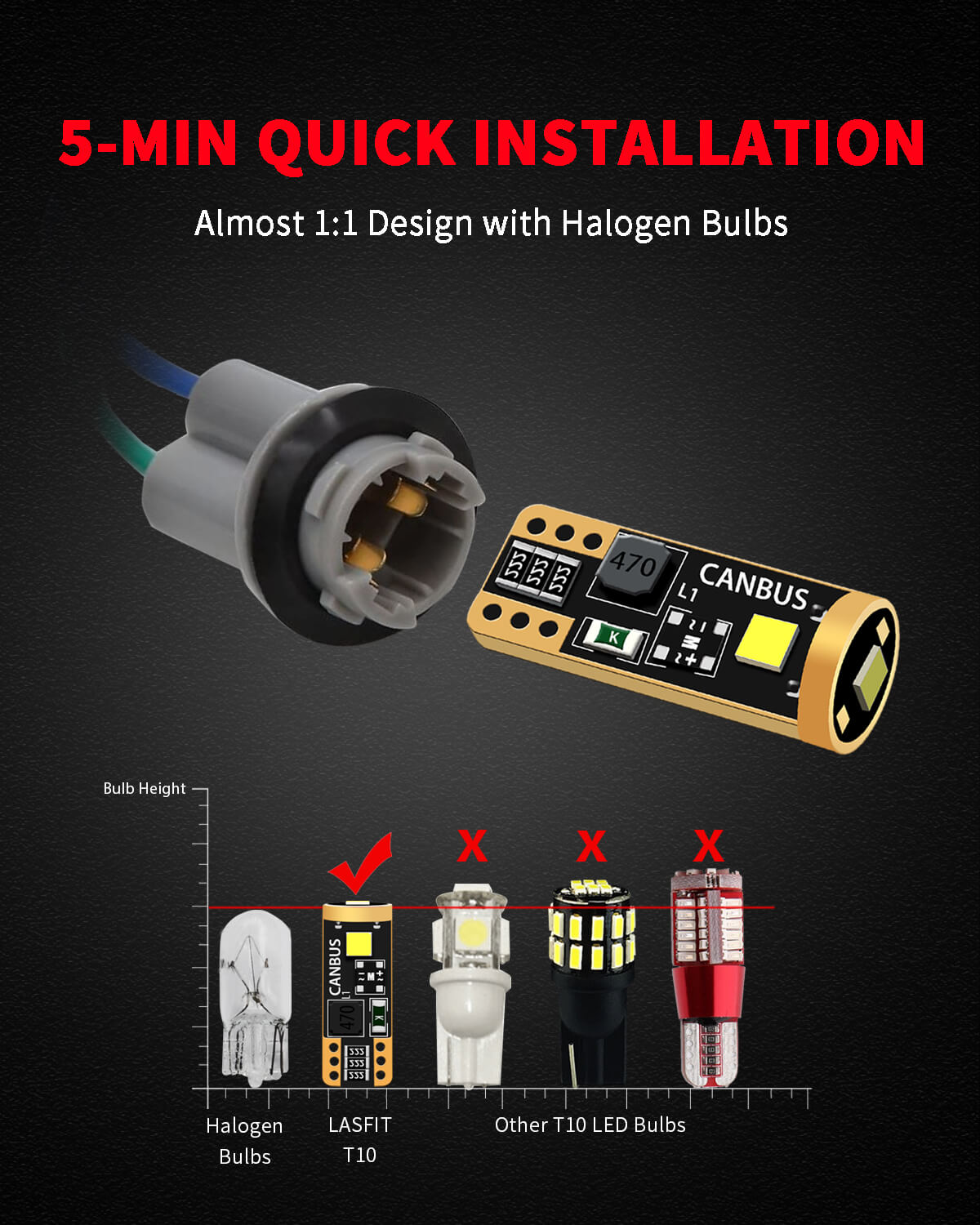

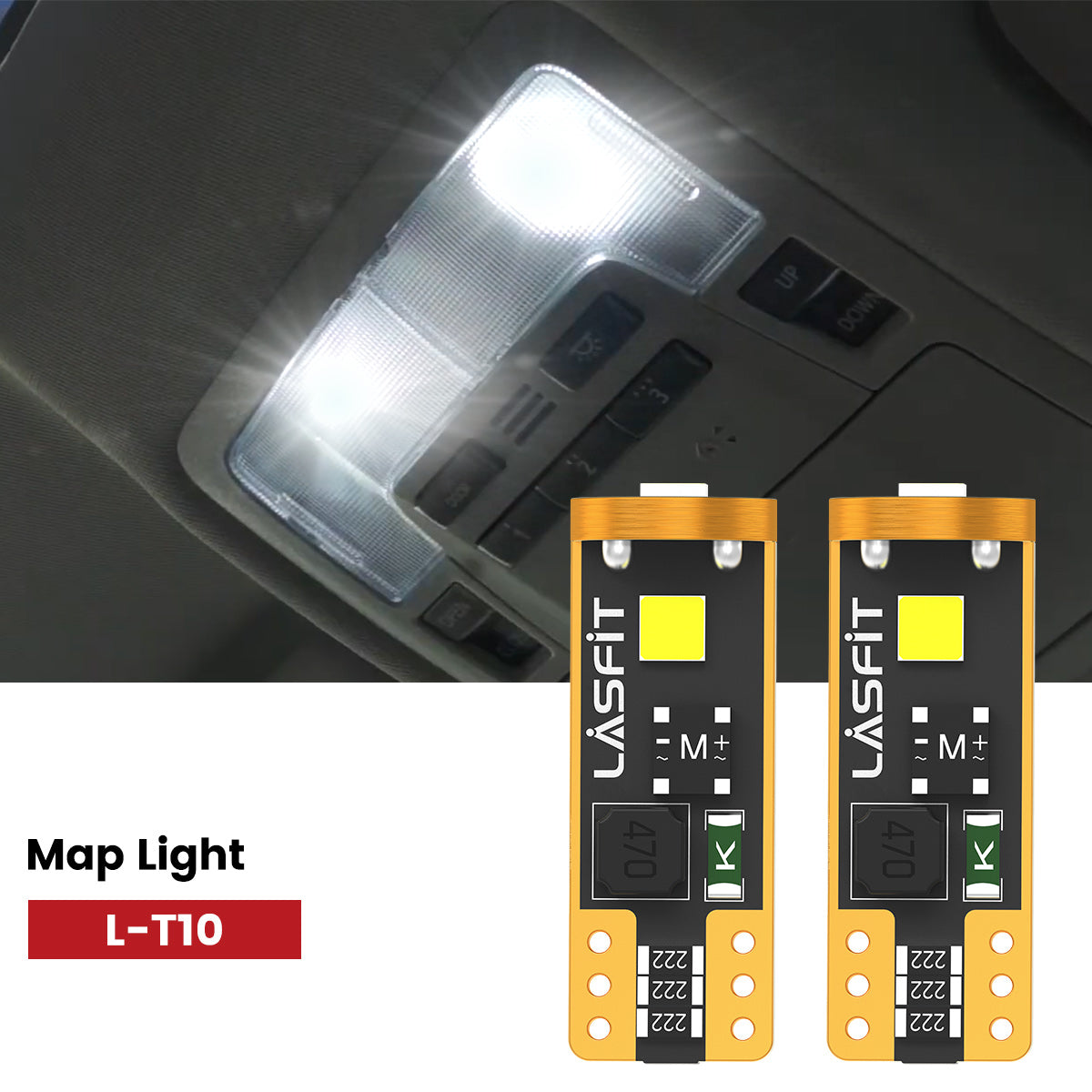

| Map Light | 168 | L-T10 Series | 400LM | safety protection, built-in canbus design, non-polarity design |

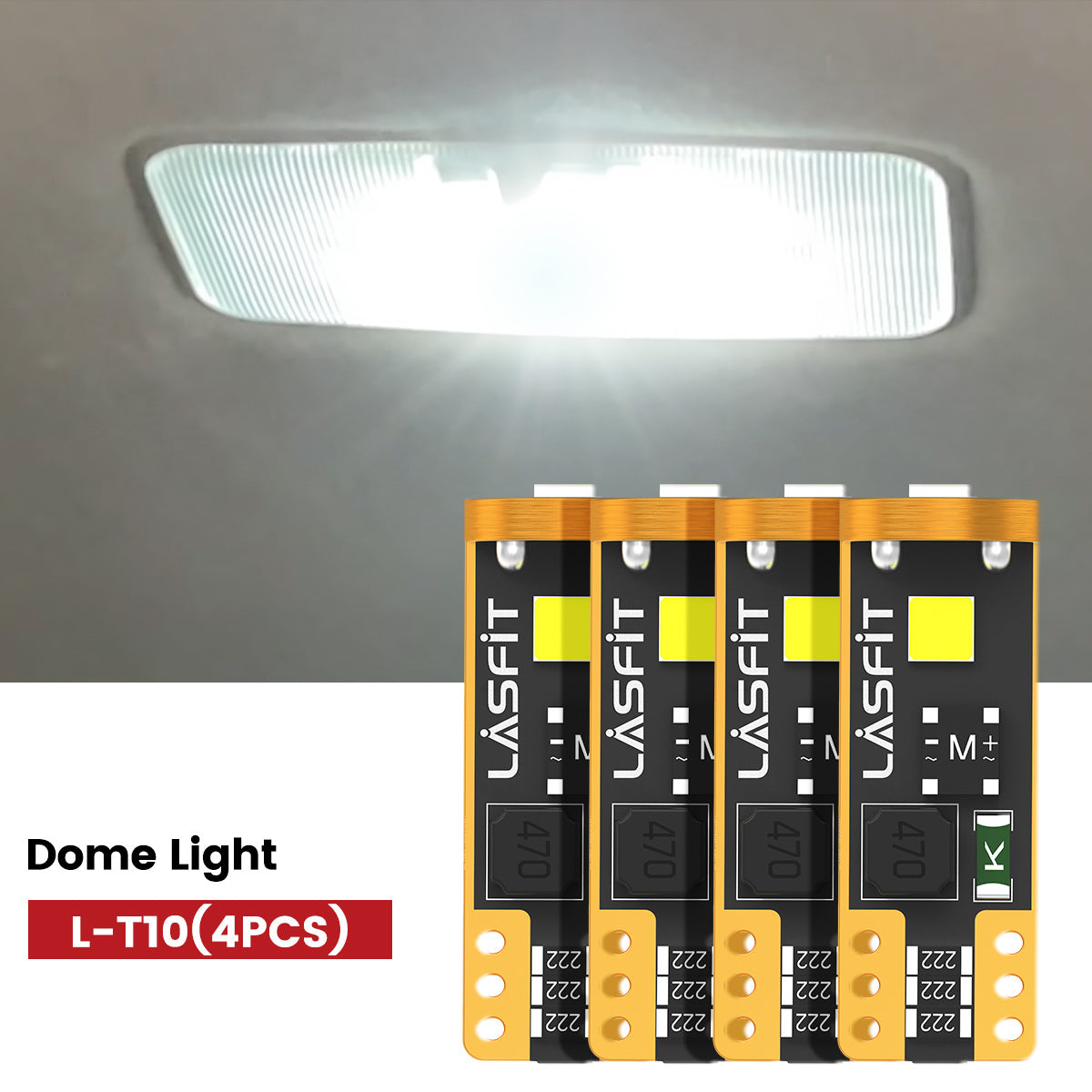

| Dome Light | 168 | L-T10 Series | 400LM | safety protection, built-in canbus design, non-polarity design |

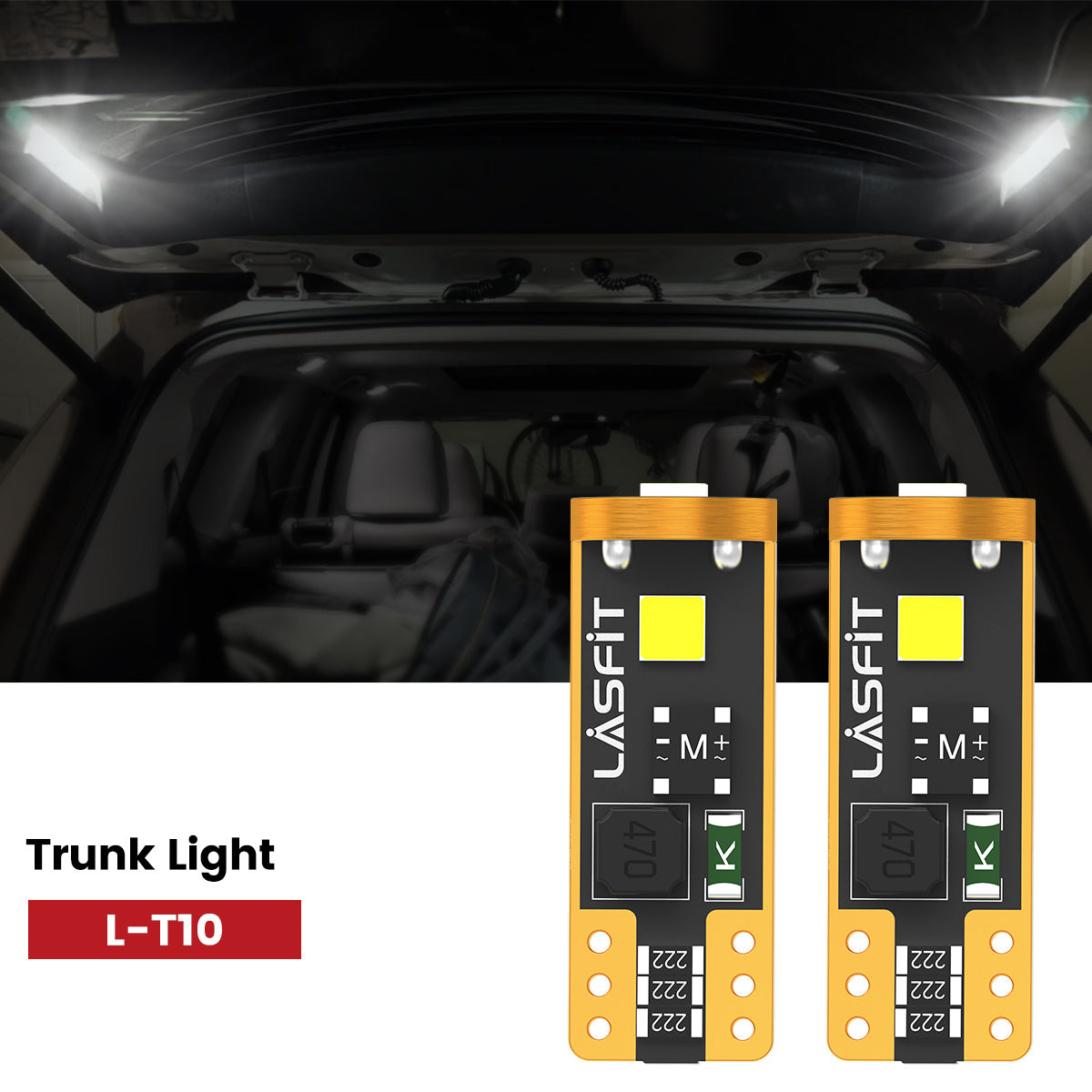

| Trunk Light | 168 | L-T10 Series | 400LM | safety protection, built-in canbus design, non-polarity design |

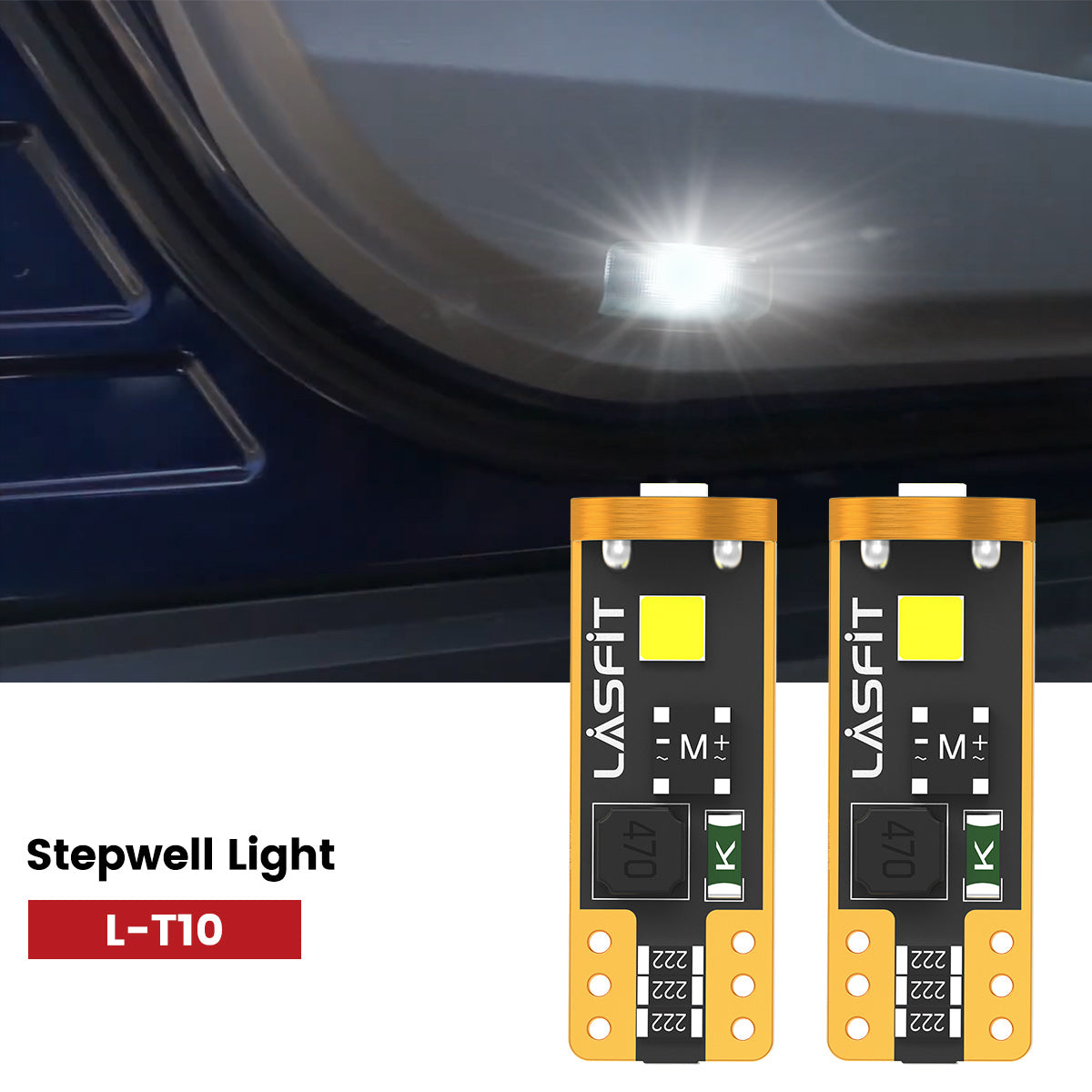

| Stepwell Light | 168 | L-T10 Series | 400LM | safety protection, built-in canbus design, non-polarity design |
FAQs: Everything You Need to Know About LED Bulbs for Your 2017-2019 Toyota Highlander
Q1: Need modifications?
A1: All LED kits included in this page for 2017 - 2019 Toyota highlander are no need any modification. Just plug and play. The dust cover could also fit well on the assembly. Upgrading Lasfit plug and play LED bulbs on your Highlander will not void the warranty.
Q2: Do I need a new dust cover?
A2: The LED bulb is customized for 2017 - 2019 Highlander with built-in the dust cover to replace the OEM ones. The rest of the LED bulbs are plug and play and the OEM dust cover could be fit on the assembly.

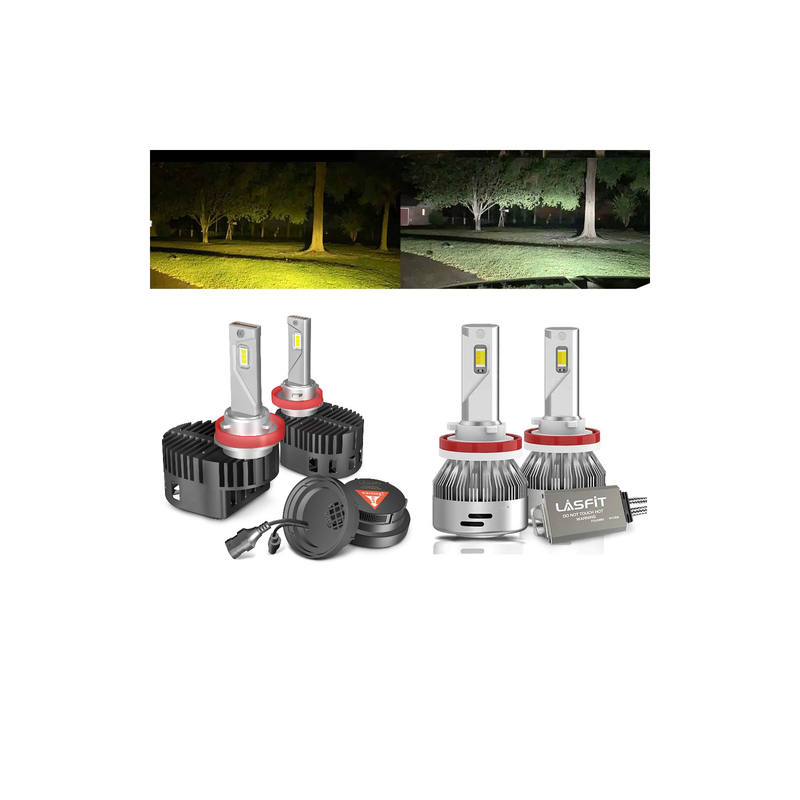

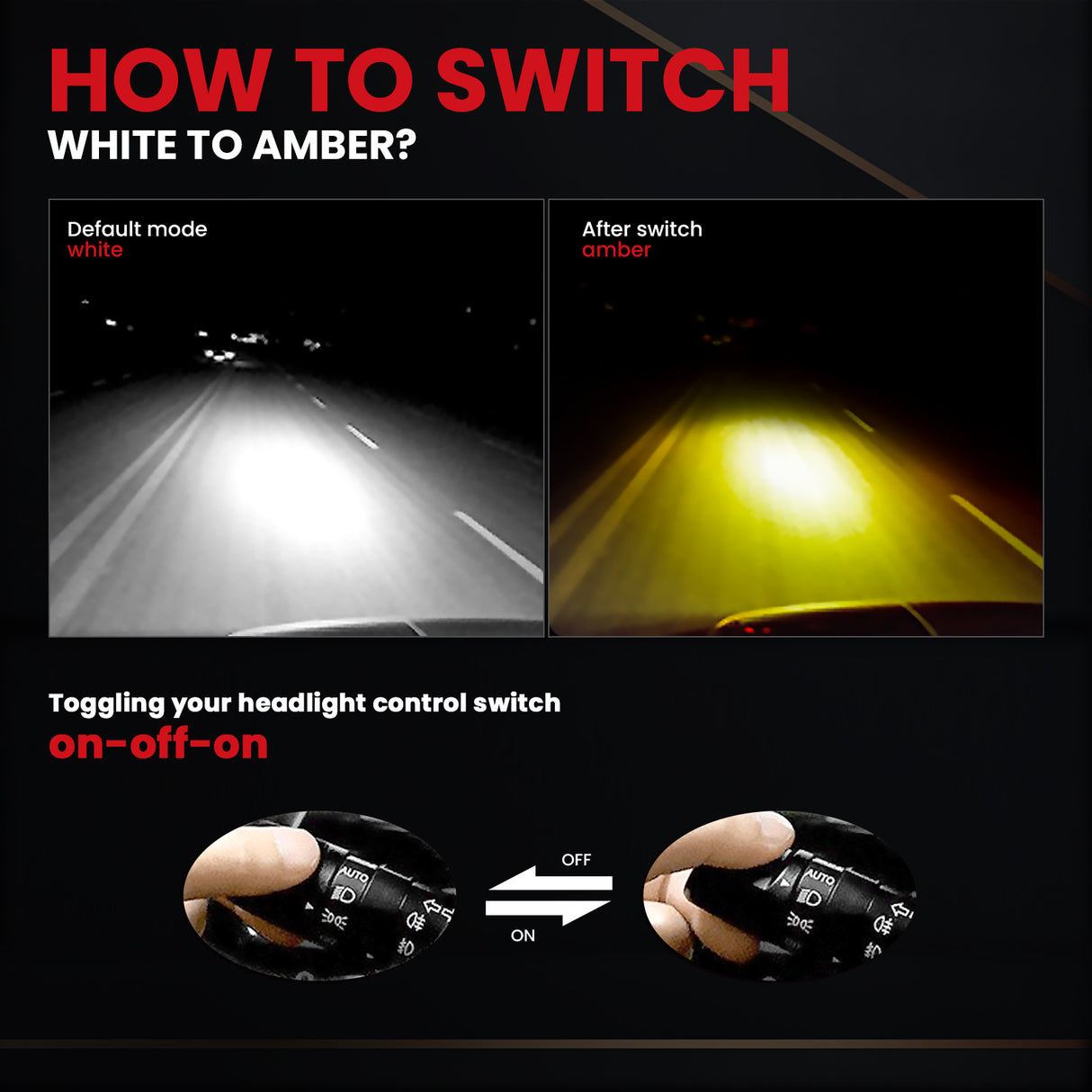

Q3: I don’t want switchback fog lights. Are there pure white options?
A3: Yes! If you prefer a pure white output, we also offer tested white H11 LED bulbs.
