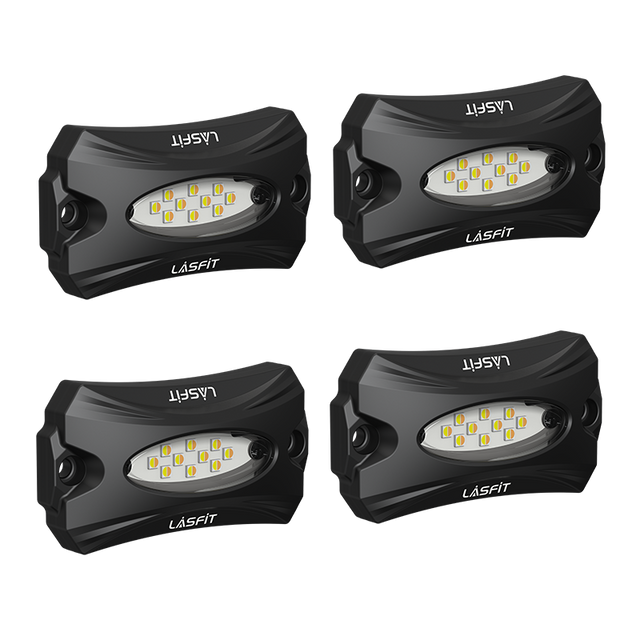

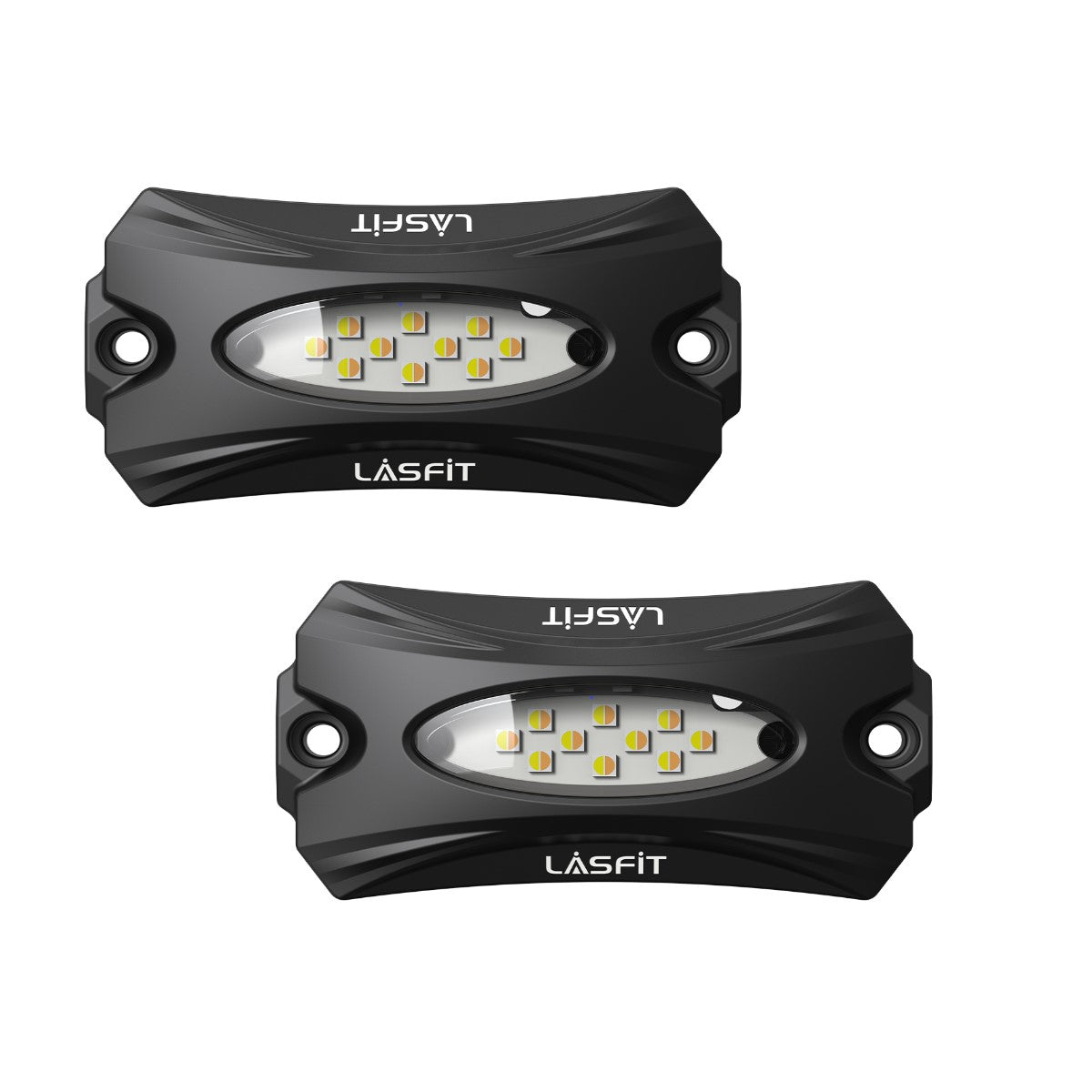

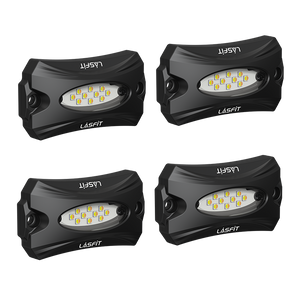

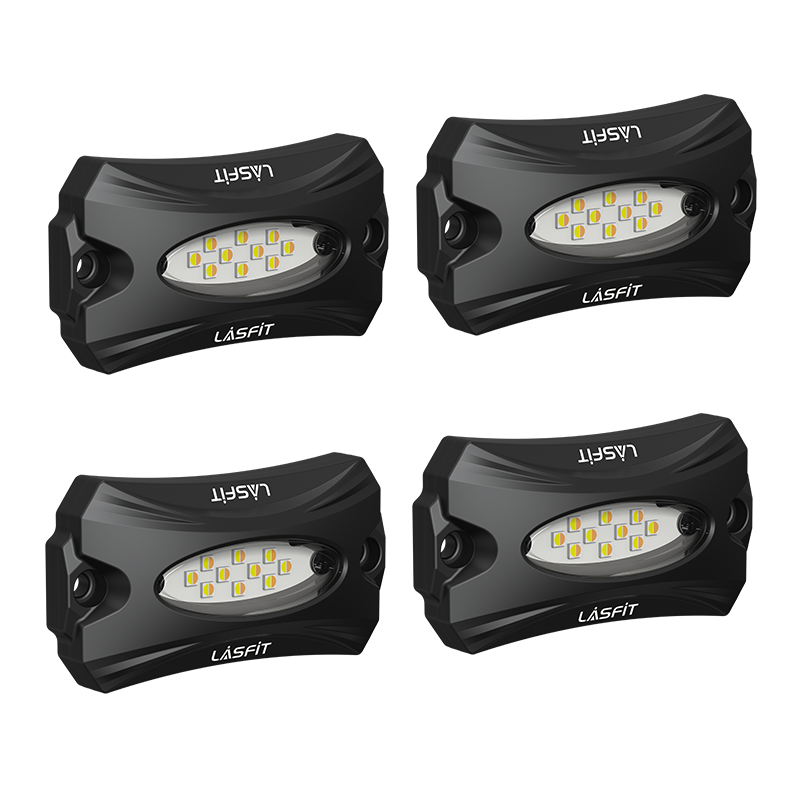

Lasfit Off-Road Switchback LED Rock Lights Kit White & Amber
$35.99
-$209.98
Unit price
/
Unavailable
Warranty & Return
Warranty & Return
Lasfit switchback rock lights are officially launched with more beasts after rigorous testing! With just one button to switch back to white or amber, and no need to change filters or use a complicated Bluetooth APP, perfect for any weather conditions!
If you're looking for a game-changer for your off-road adventures, the Lasfit Switchback Rock Lights are sure to take your off-road experience to the next level! Designed for off-road enthusiasts, these high-performance lights with a power output of 6 watts and 110° optics per pod are the perfect addition to any truck, like for Jeep, or SUV.

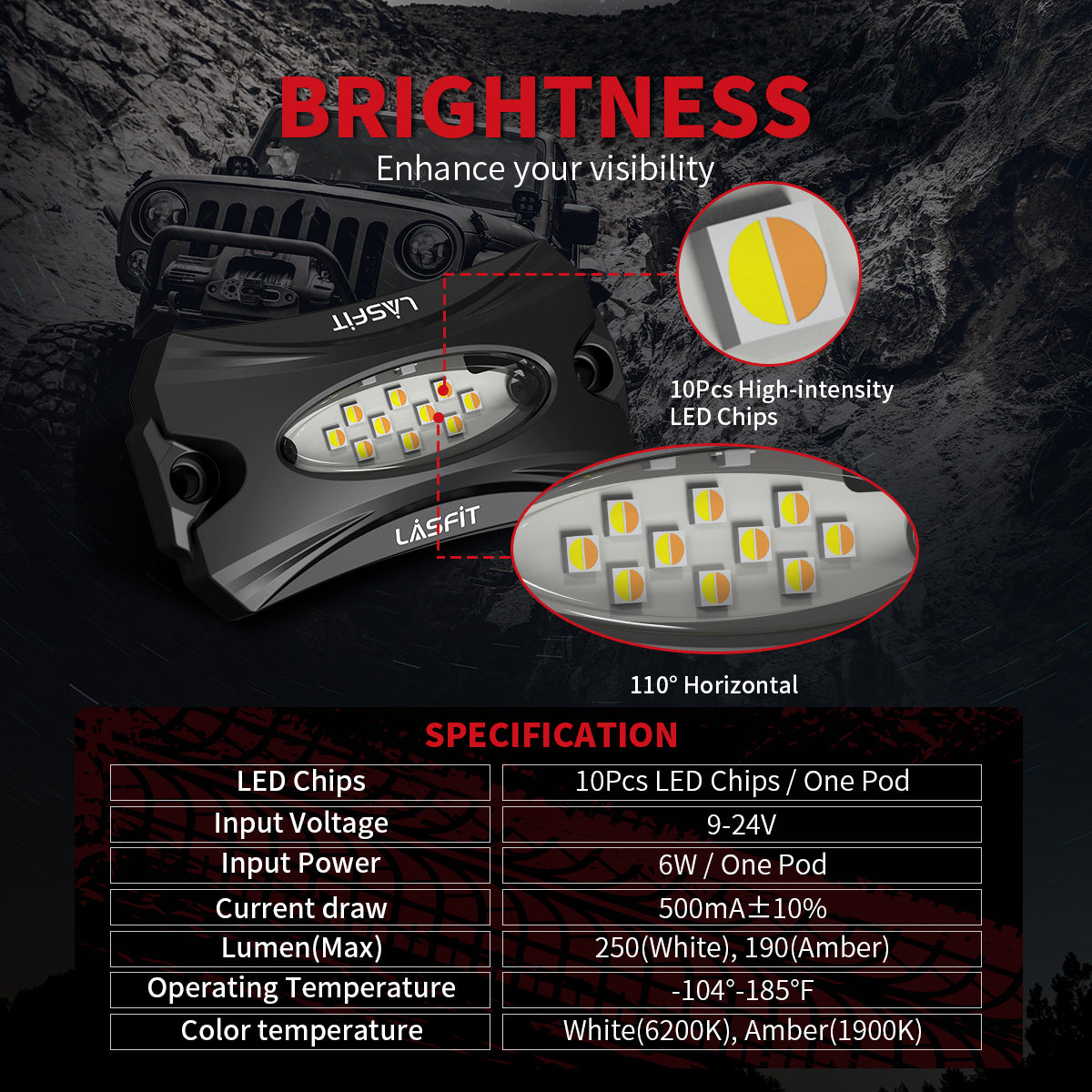

PRODUCT SPECIFICATION
● Input Voltage: 9-24V
● Input Power: 6W/Pod
● Current Draw: 500mA±10%
● LED Chips: 10pcs/Pod
● Beam Angle: 110°
● Wire Size: 24AWG
● Fuse Size: 10A
● Weight: 0.48Lbs/Pod
● IP Rating: IP68
● Material: Die-Cast Aluminum
● Lumen(Max): 250(White), 190(Amberw)
● Operating Temperature: -104℃~185°F
● Color Temperature: 6200K(White), 1900K(Amber)

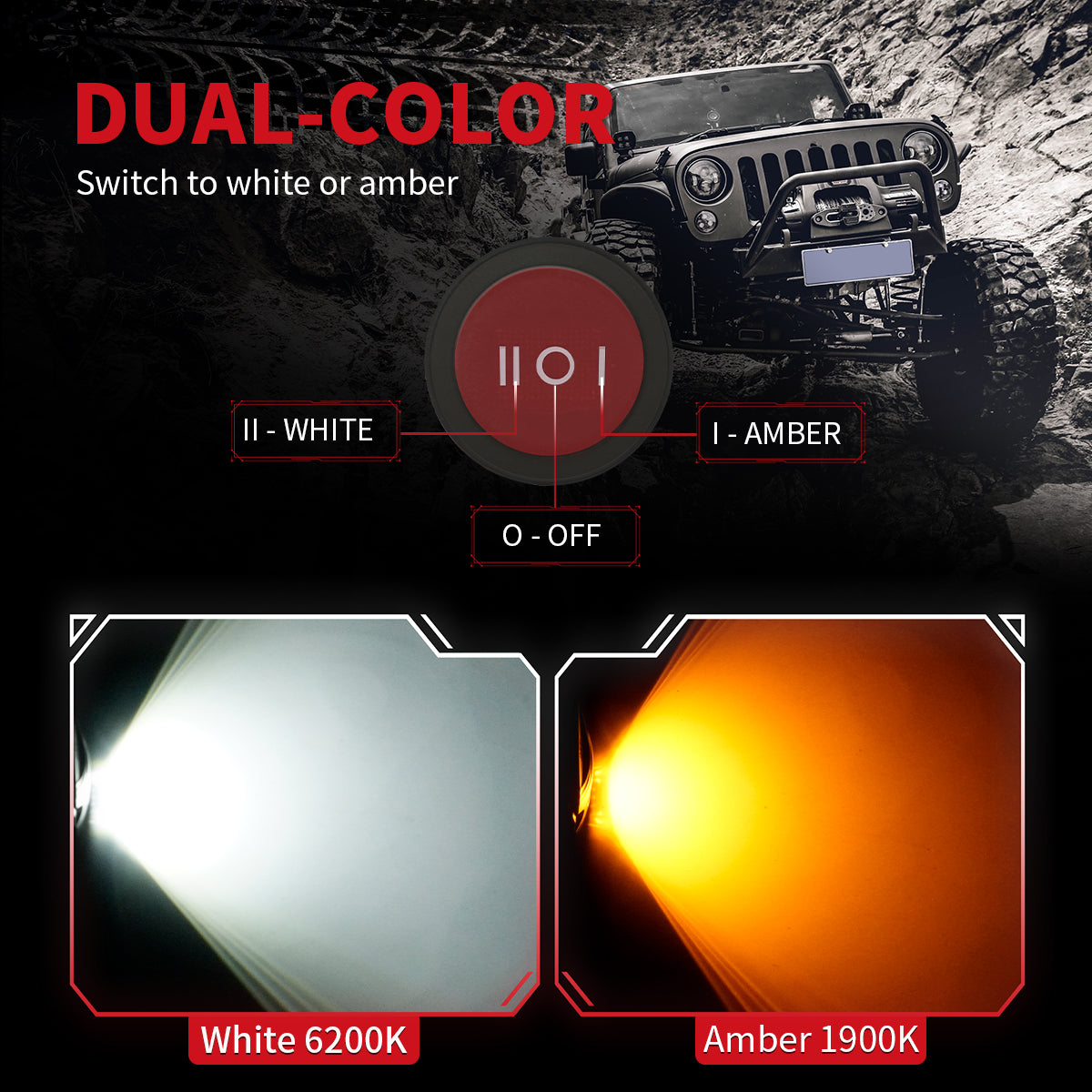

Dual-Color Design: Built For Adventure

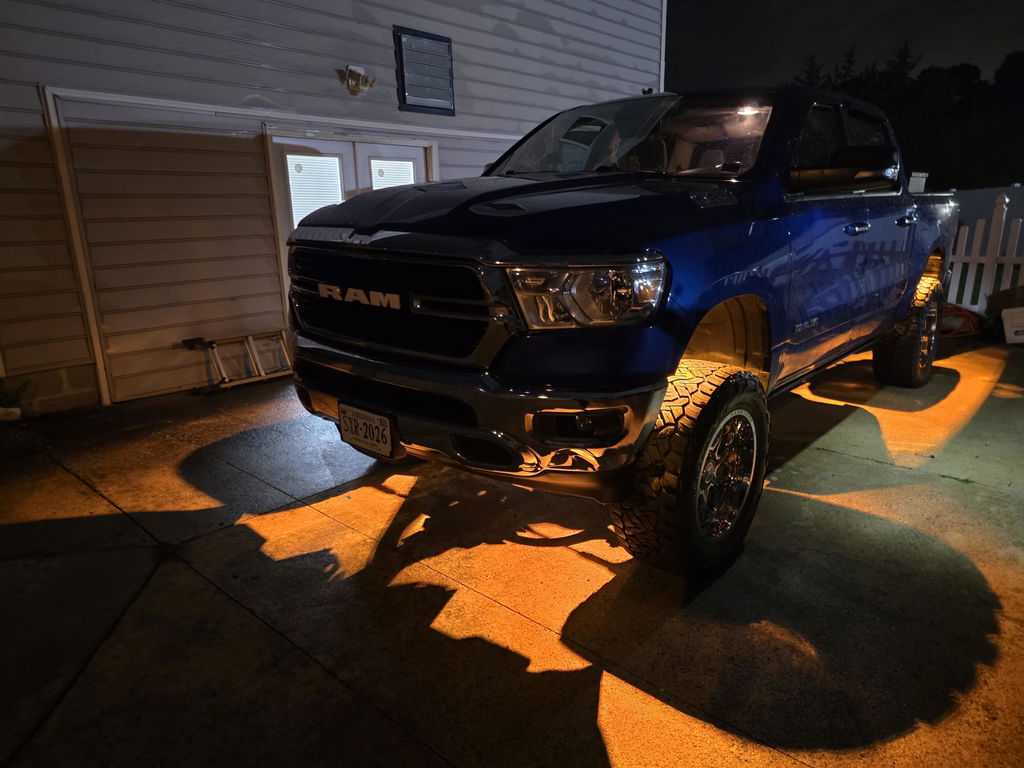

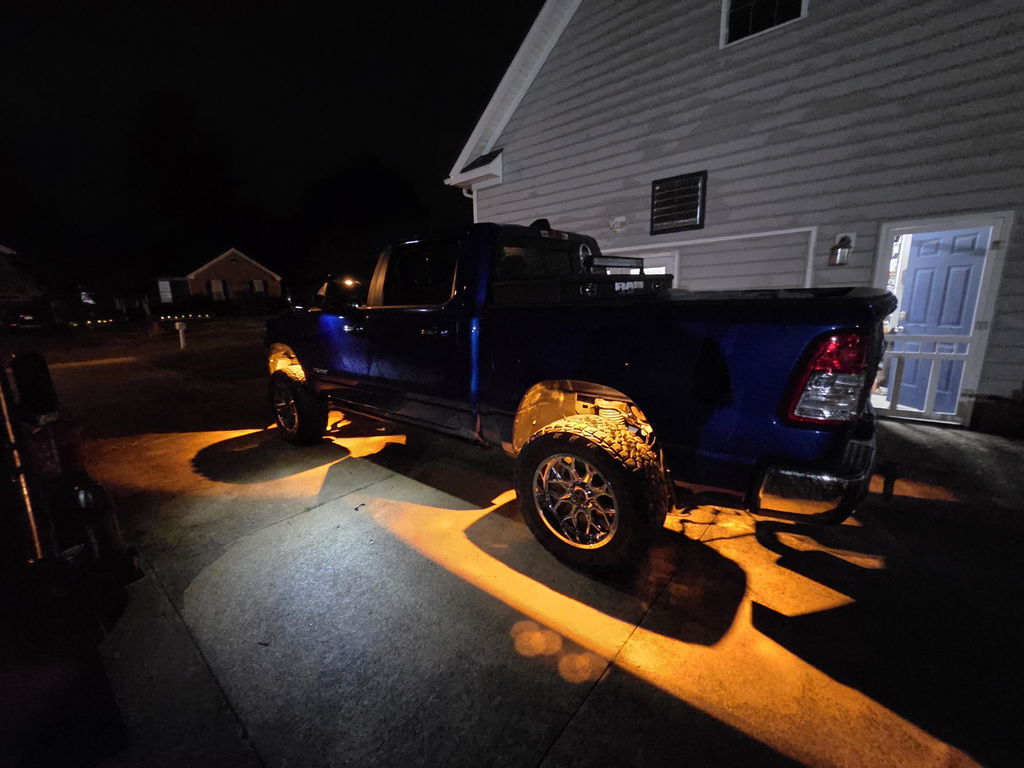

The white light is brighter with 6200K, and the amber light of 1900K has higher visibility. These two colors are usually the most useful for off-road enthusiasts, so we have adopted a dual-color design of white and amber light to meet real off-road needs: white is for sunny days while amber is suitable for rainy, snowy, and foggy days, the perfect solution for any weather conditions!
Humanized Design: Switchback To White Or Amber

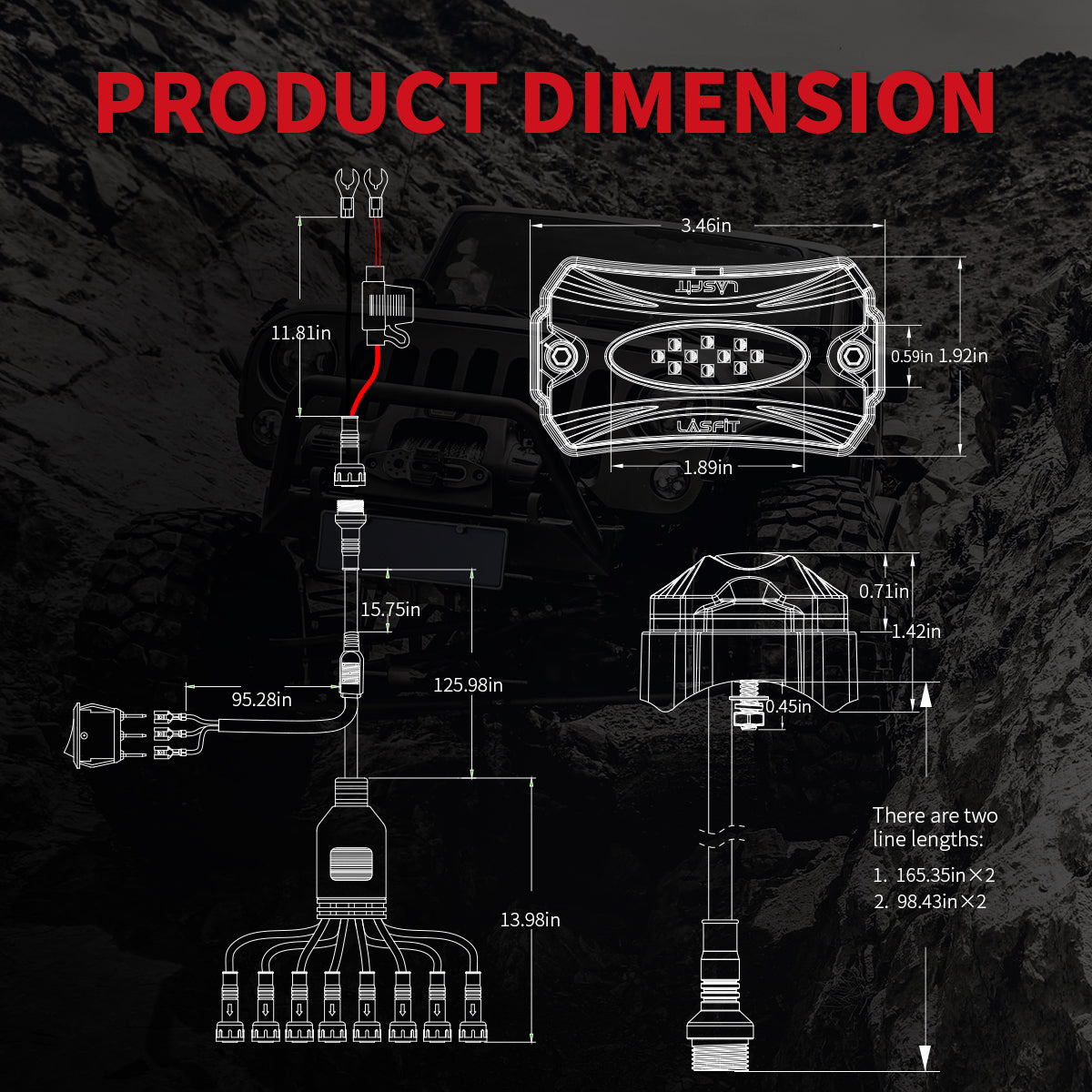

You don't need to change filters or use a complicated Bluetooth APP to get a multi-color version. The Lasfit dual-color rock lights switch back to white or amber with just one button and are specially designed for real off-road needs. Besides, we offer two lengths of cable, 4m for the rear wheel side and 2.5m for the front wheel side, with no extension required. It couldn't be easier!

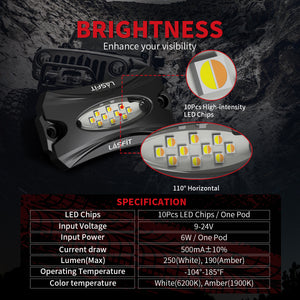

Super Bright: Enhance Your Visibility
Lasfit rock light is brighter and wider with a true 6W power output and 110° optics, each light employs 10PCS high-quality led chips and delivers an incredibly bright 250 lumens (white) and 190 lumens (amber) of LED output to add light underneath your vehicle and enhance your visibility on the trail!

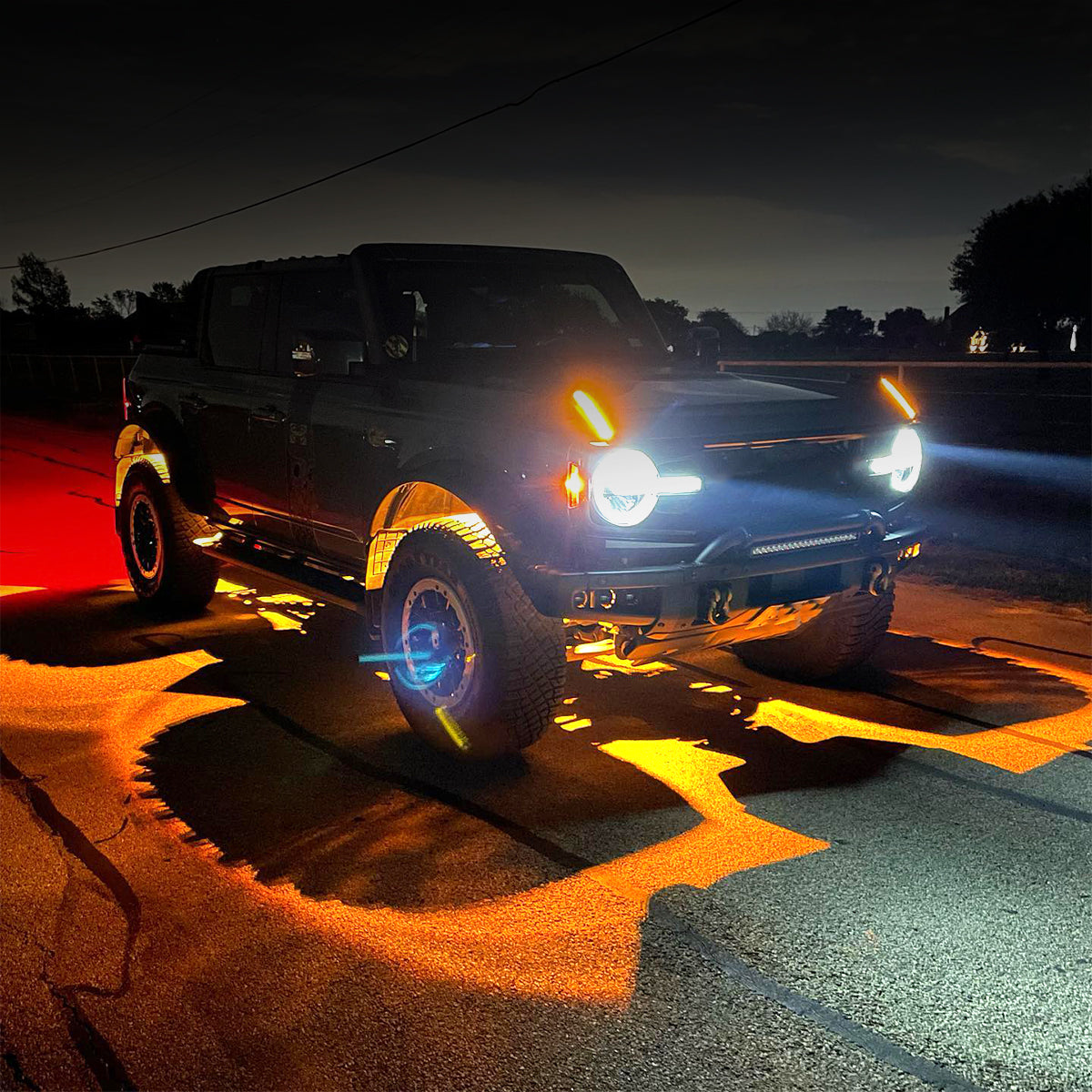

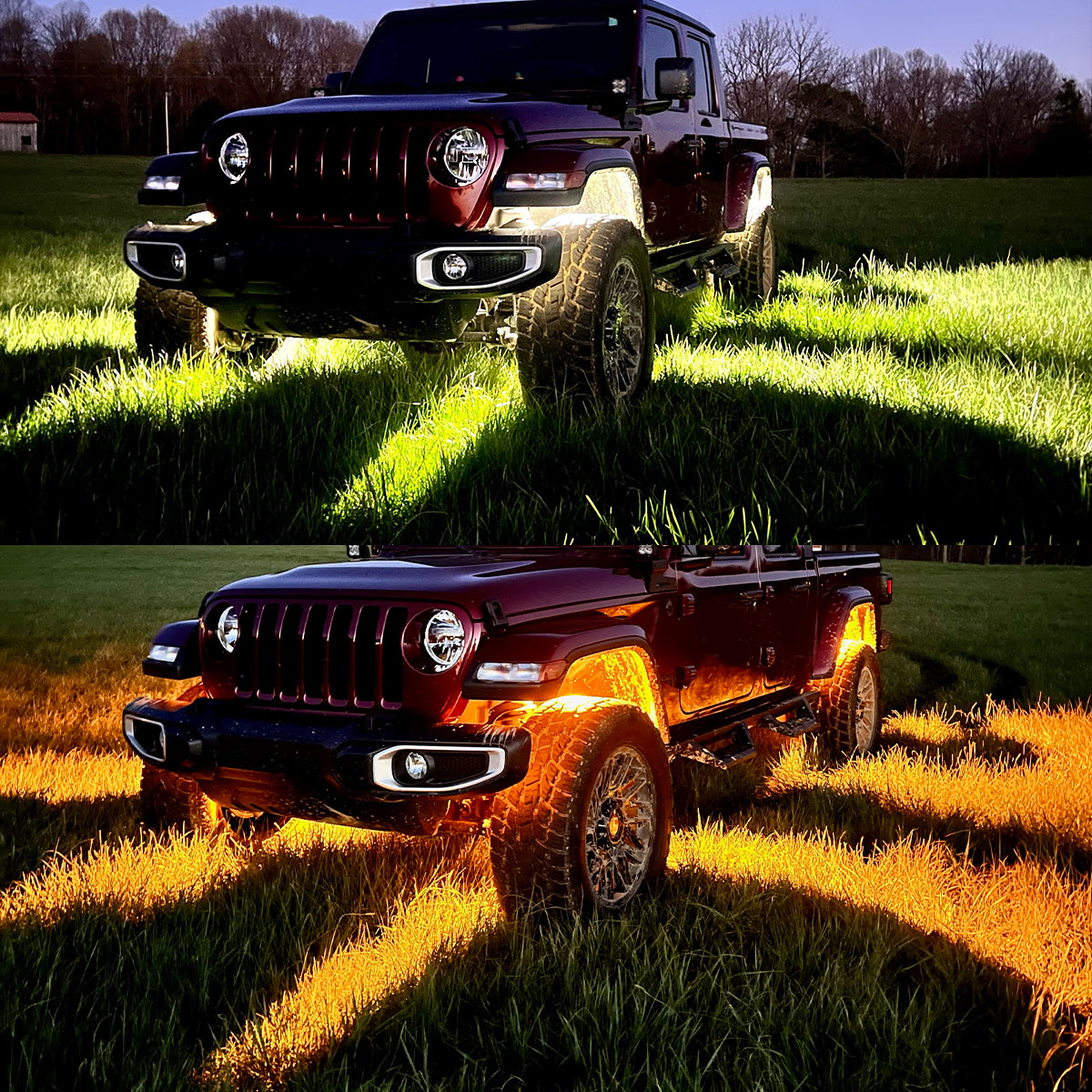

Wide Application: Light Up Your Ride
The Lasfit switchback rock lights are suitable for trucks, Jeeps, UTVs, ATVs, motorcycles, tractors even boats to get a wider and brighter vision for your safety escort.

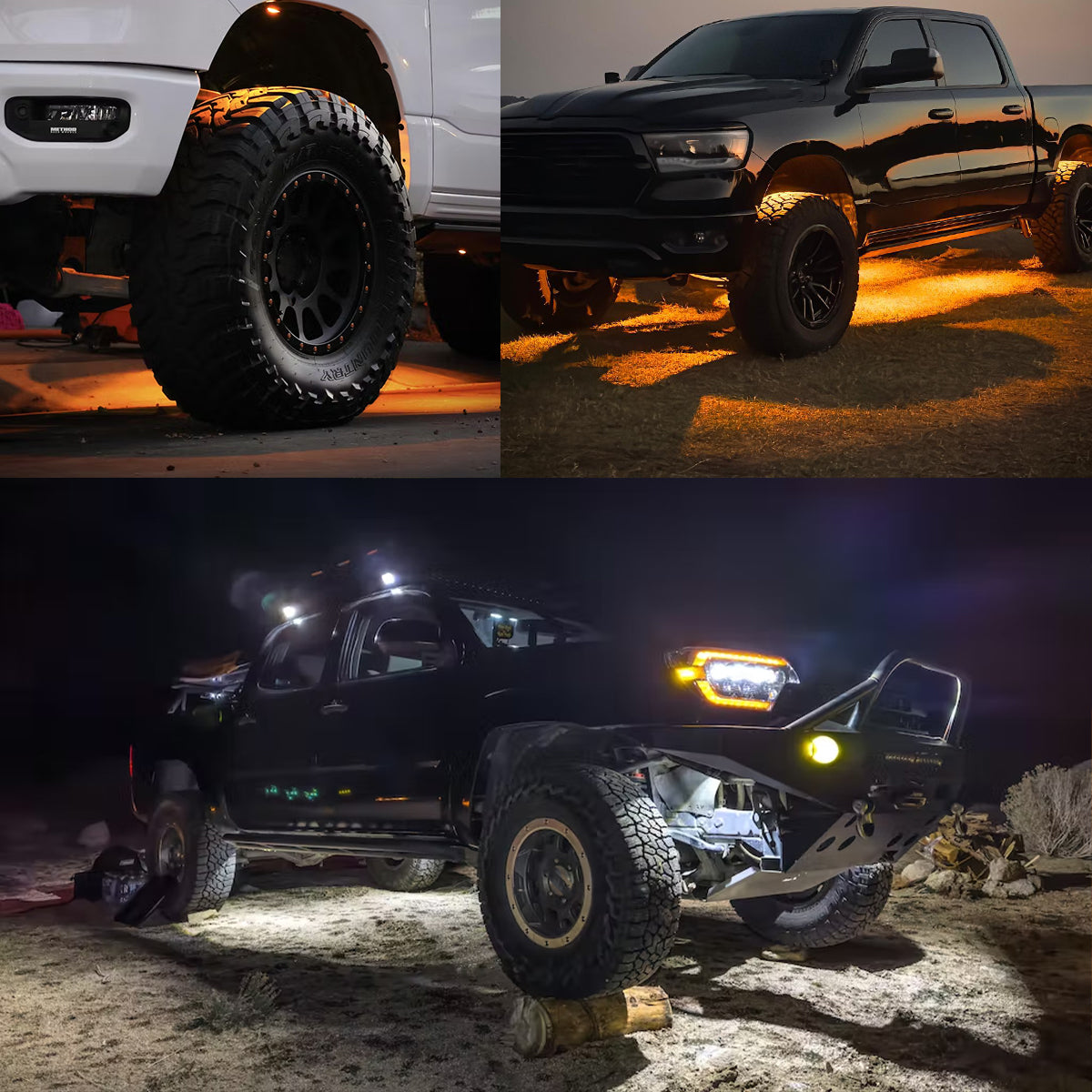

They are usually installed on the bottom of the vehicle or on the fender on the wheel to add lighting under your truck. But rock crawling isn’t the only scenario that these lights are useful. These rock lights can also be engine bay lights, reverse assist lights, on deck or side rail lights for marine, rear cargo or canopy lights, ambient/camp scene lights, toolbox, caravan, and awning under lights, etc. The applications are endless!
Plug and Play, Easily Control to change between white and amber

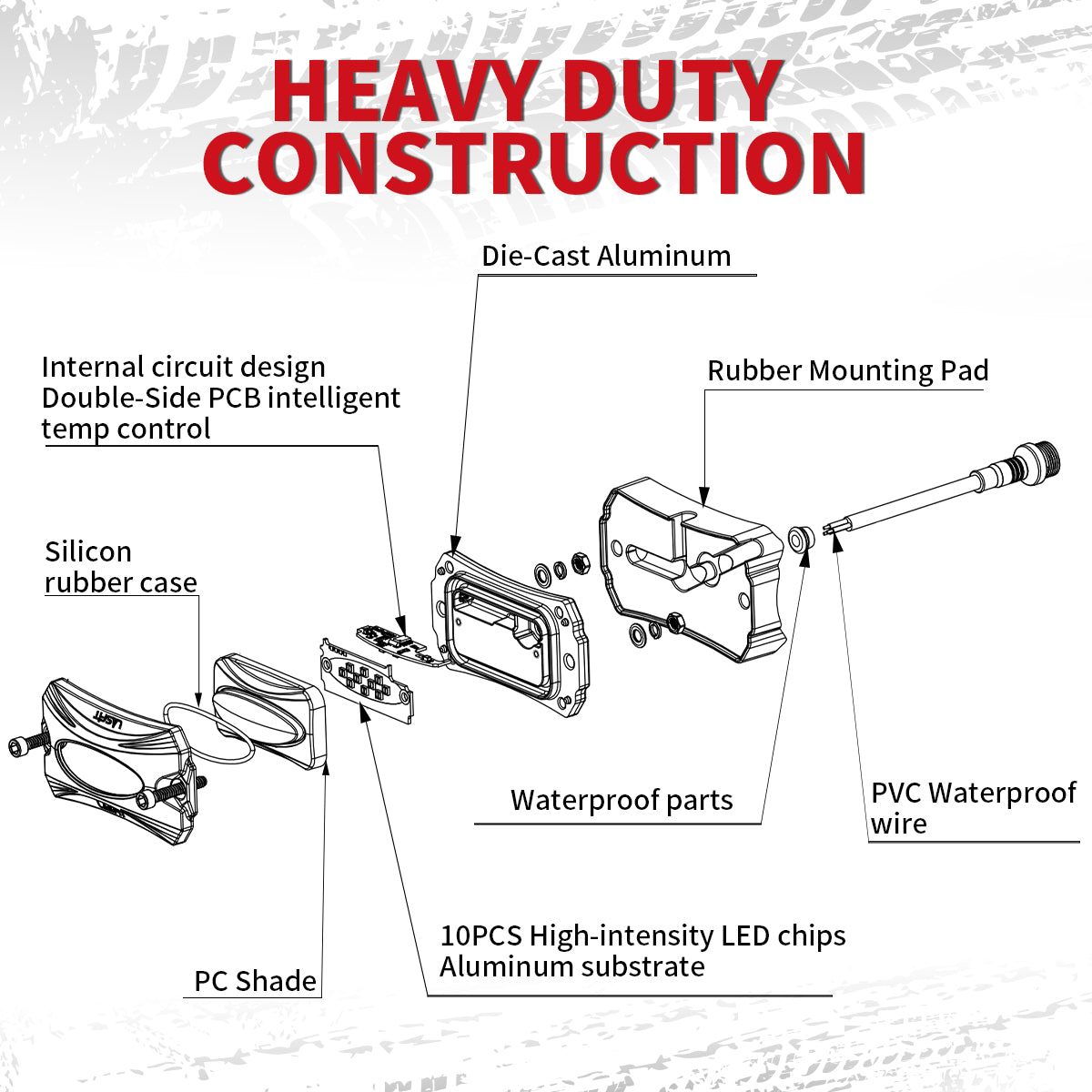

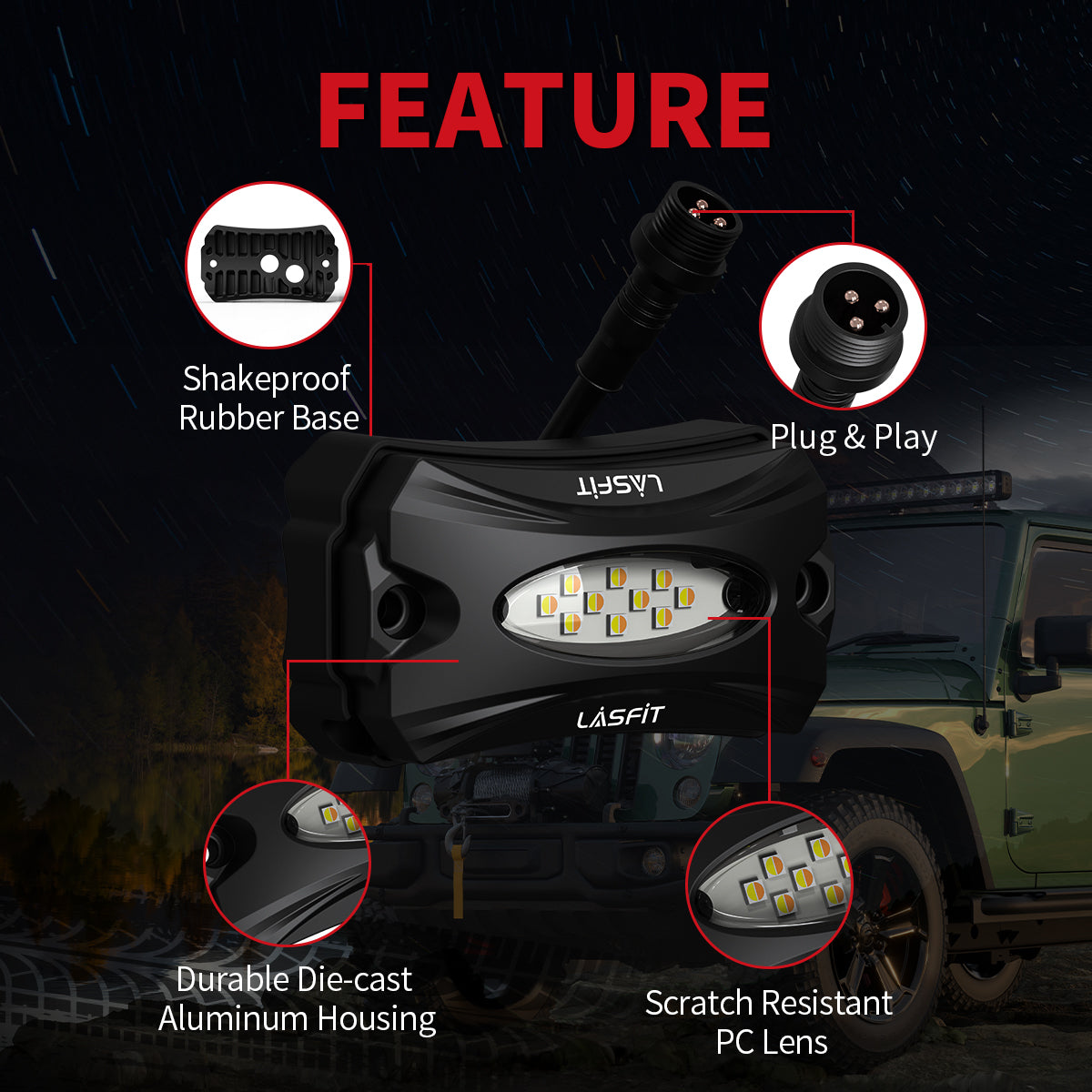

Heavy-Duty Construction: More Durable And Stable
Lasfit rock lights adopt hard and durable die-cast aluminum housing and thickened PC lens, which is resistant to scratches, heavy shocks, oxidation, high temperature, and paint, and is durable for long-time use. Besides, shock-resistant rubber pads keep you on rocky mountain terrain.

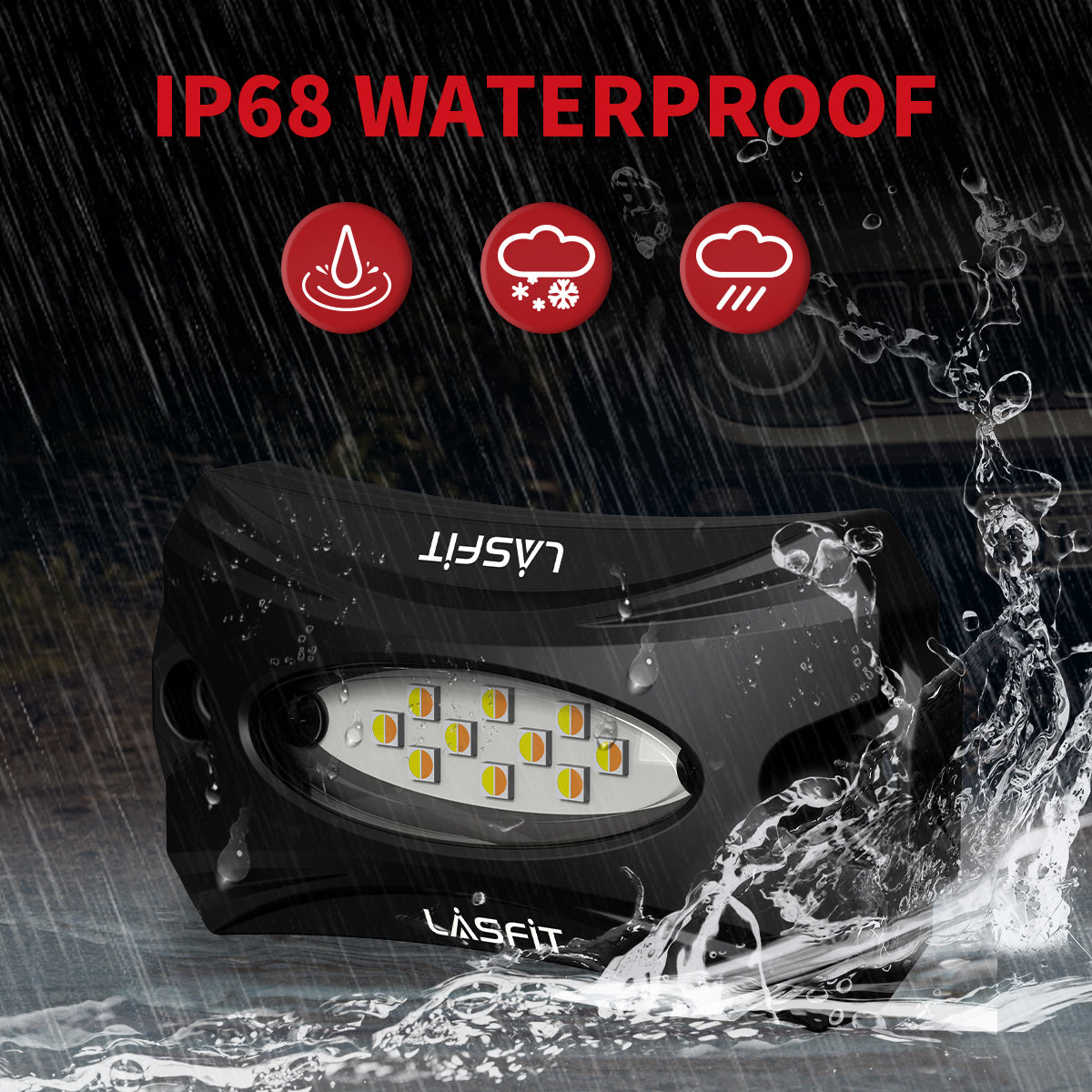

Also, Lasfit rock lights can be applied through any wet terrain with IP68 waterproof, including mud, river, and snow, and can undertake any extremely evil conditions.

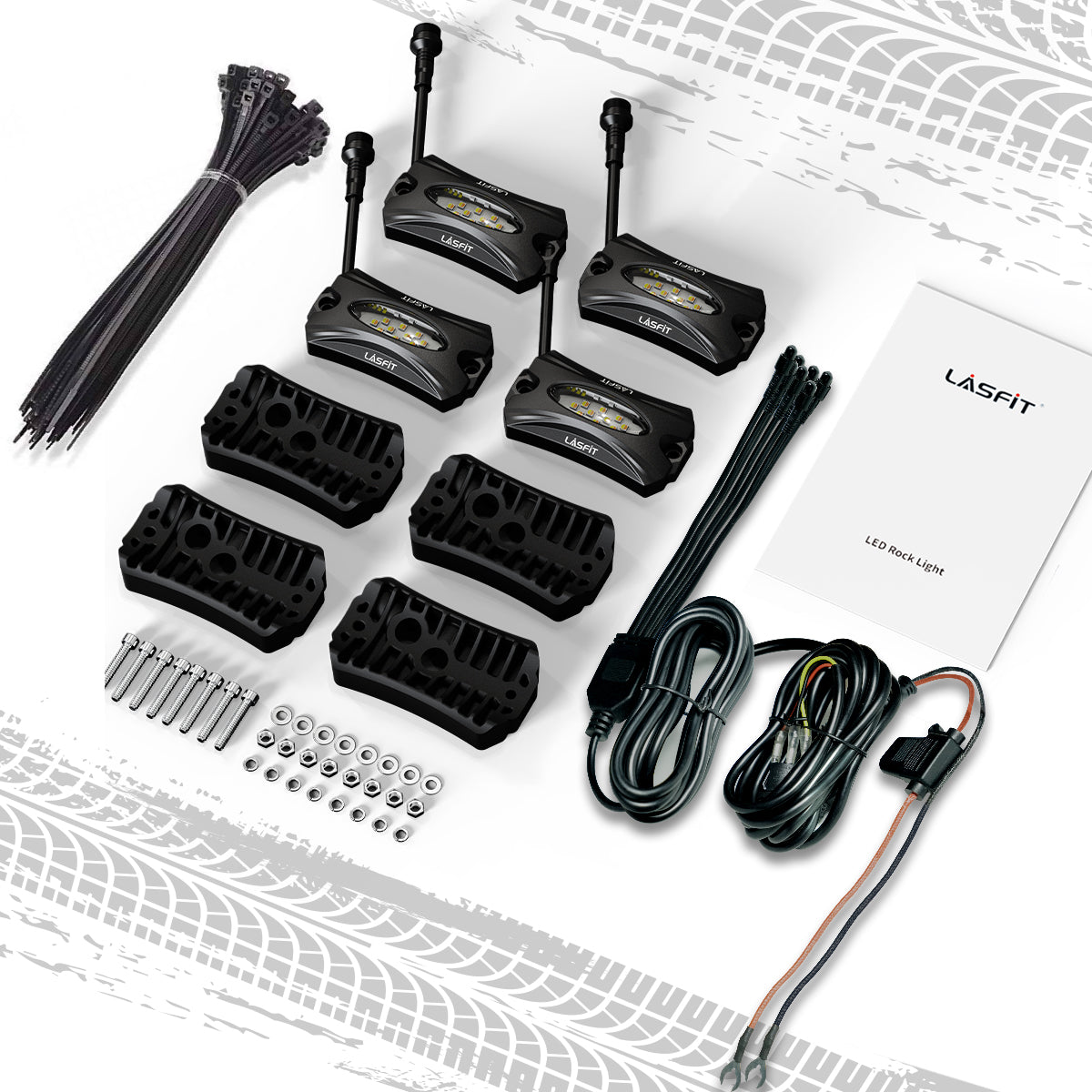

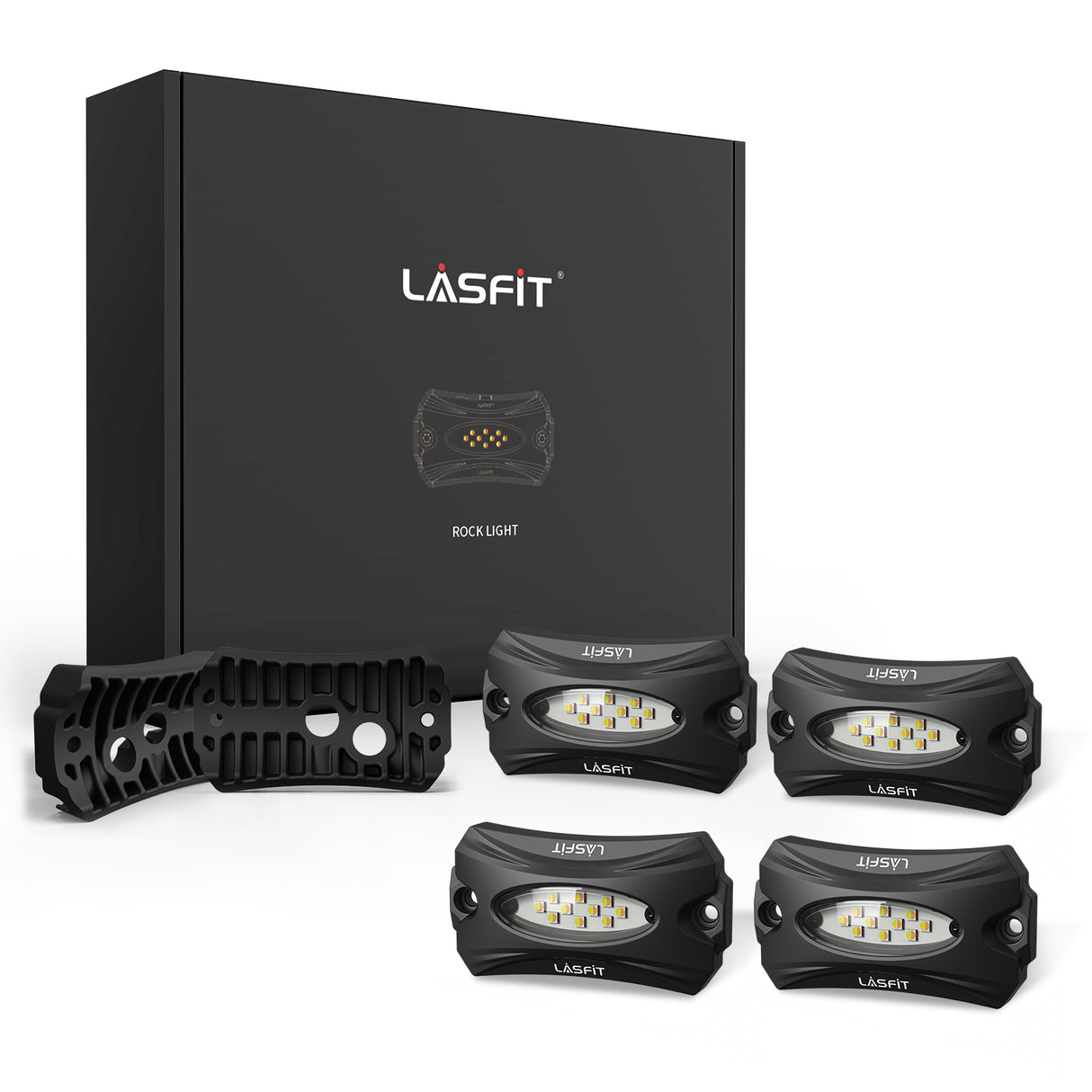

PACKAGE CONTAINS
4 Pods Includes:
● Rock Lights*4
● 13.12ft Power Cable*2 (For Rear Wheel Side)
● 8.2ft Power Cable*2 (For Front Wheel Side)
● Rubber Mounting Pad*4
● 1 With 8 Pod Cable*1
● Rock Light Hardware Kit*1
● Zip Ties*26

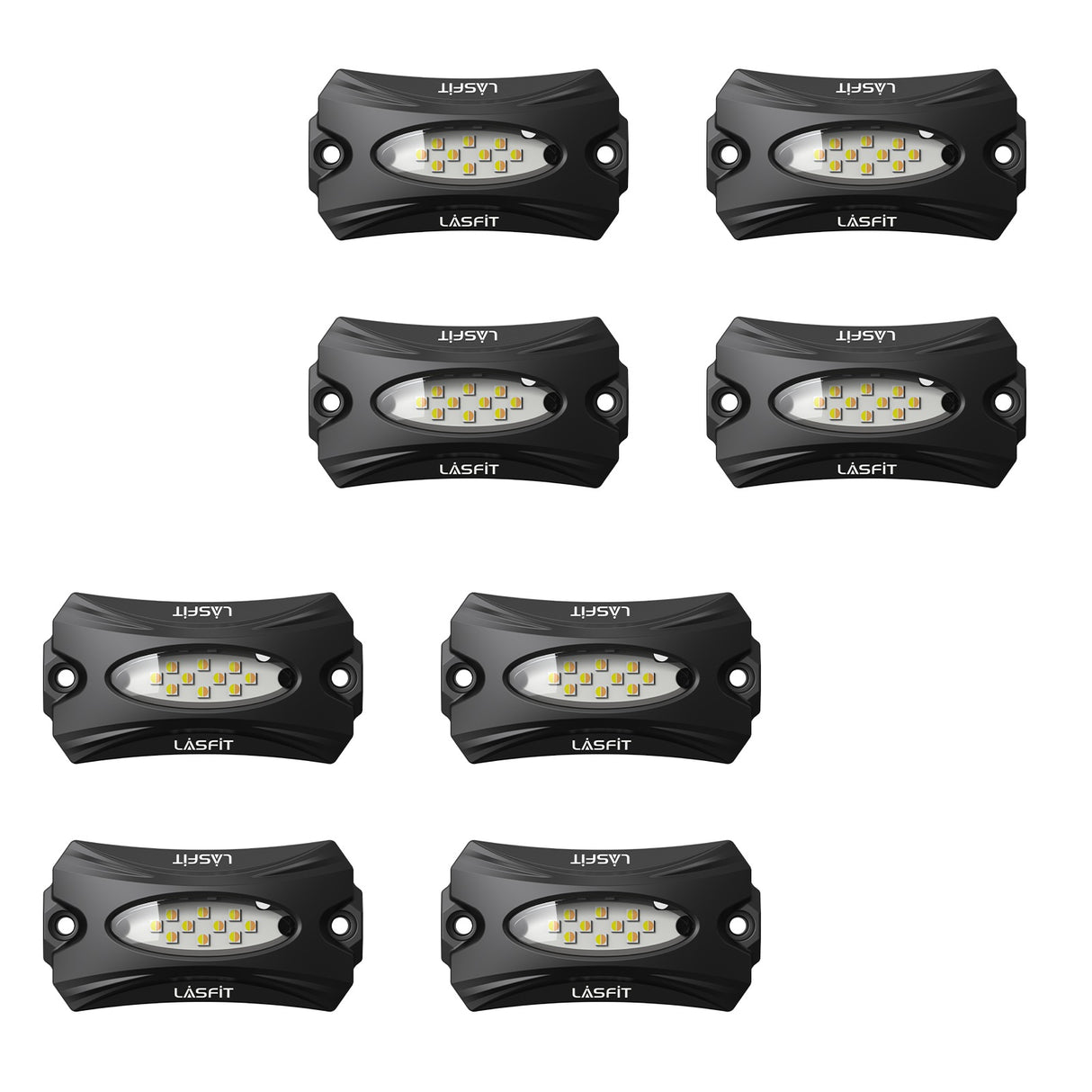

8 Pods Includes:
● Rock Lights*8
● 13.12ft Power Cable*4 (For Rear Wheel Side)
● 8.2ft Power Cable*4 (For Front Wheel Side)
● Rubber Mounting Pad*8
● 1 With 8 Pod Cable*2
● Rock Light Hardware Kit*2
● Zip Ties*52

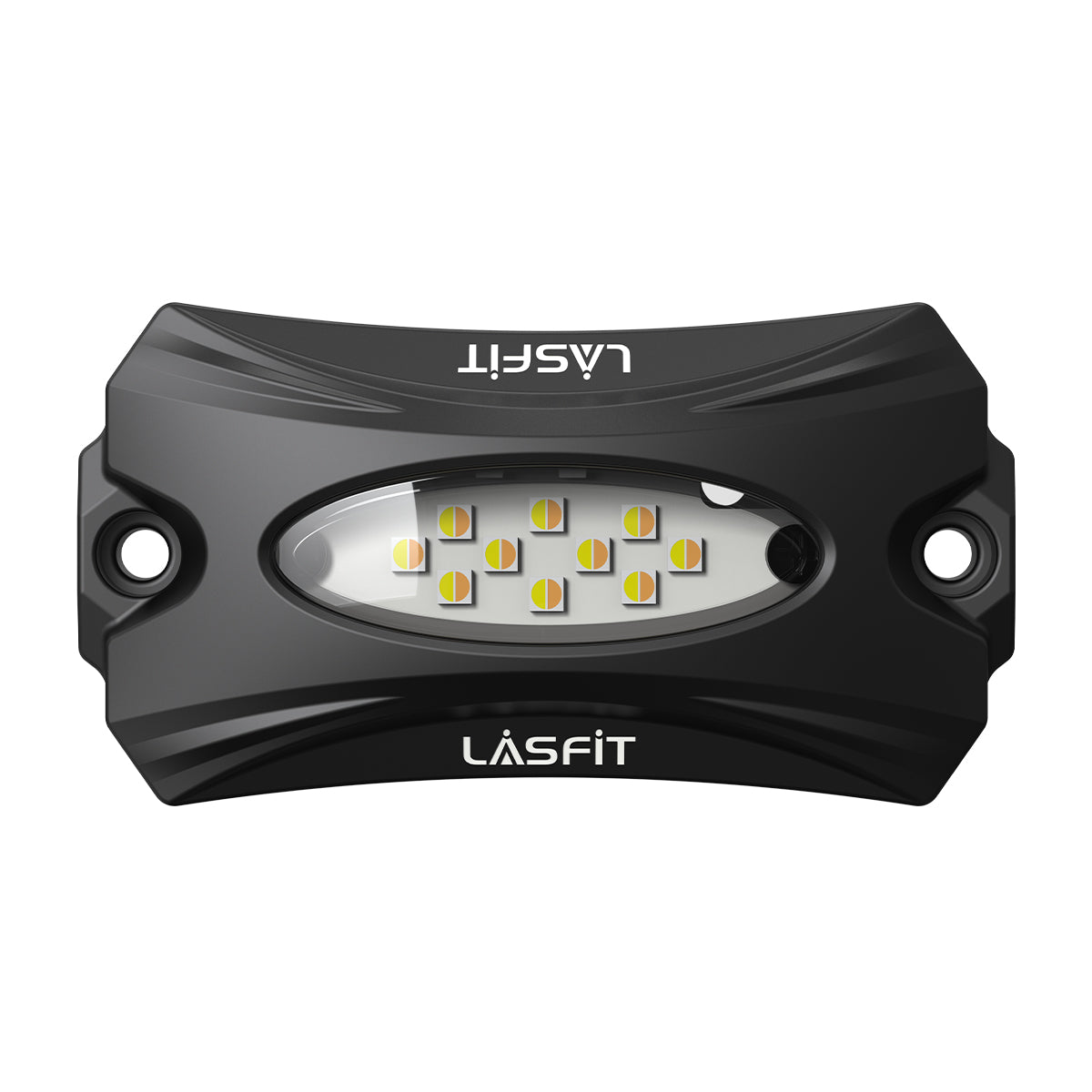

NOTE: 1Pod and 2 Pods packages contain pod lights ONLY. No harness wirings or switches!!!
INSTALLATION NOTES
● Time: 0.5-1h
● Worry-free installation: Follow our installation manual with step-by-step detailed instructions, and you will be all set!
● Call (909) 758-7900 for Technical Support

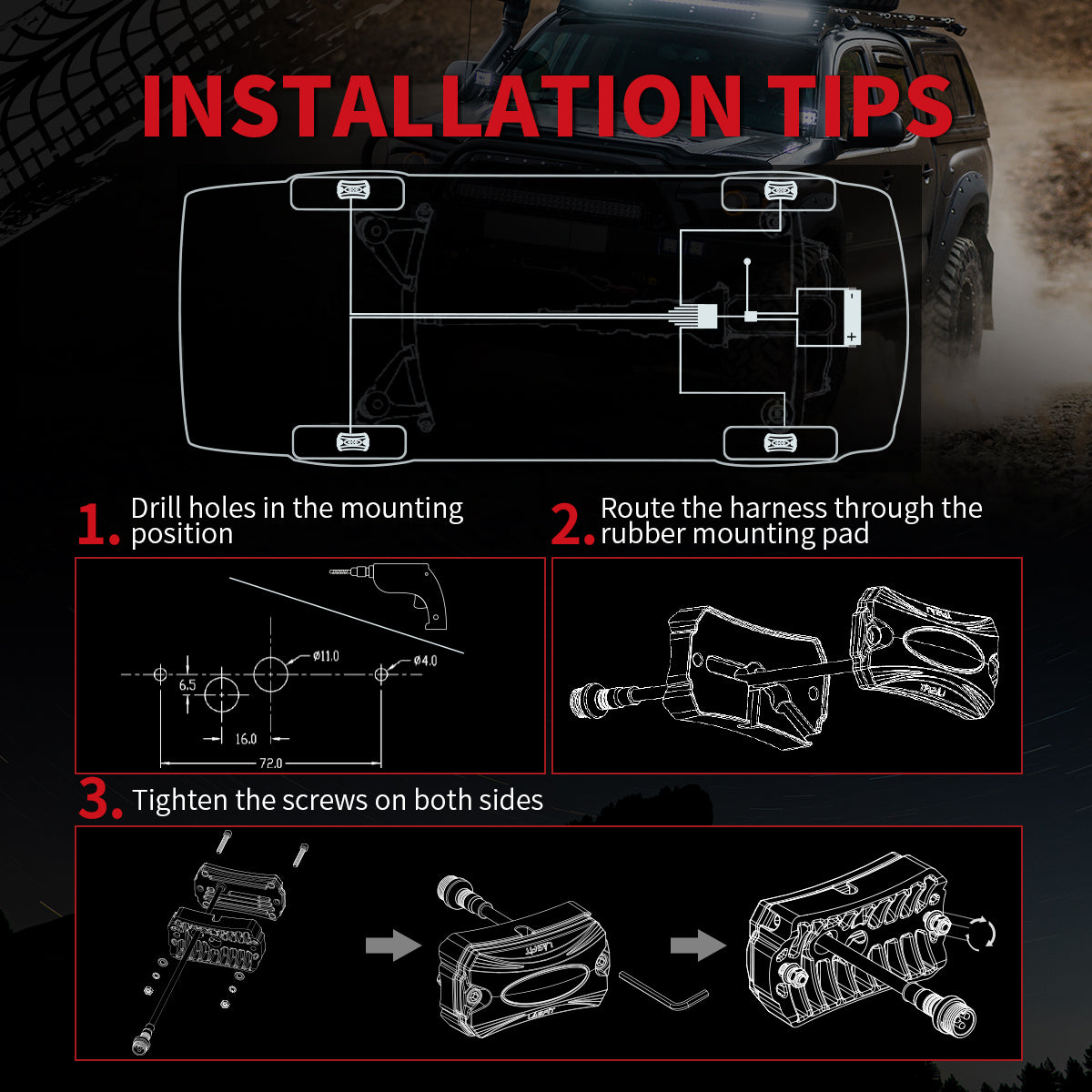

HOW TO INSTALL LASFIT ROCK LIGHTS?
OUR GUARANTEES
✅45 Days Money-Back Return/Exchange
✅3-Year Hassle Free Warranty
✅Free Shipping
Q&A
Q: Why does the rock light kit come with 4 lights but 8 pod cables?
A: This kit includes 4 rock lights, which will be connected to 4 pod cables. If you want to install more rock lights, you can purchase them separately, the extra rock lights are coming soon.
CONTACT US
If you have any questions about mounting, please chat with us!
📧Email: cs@lasfit.com
📞Call: (909) 758-7900 Mon. - Fri. 9:00 am-5:30 pm (PST)
C
Pretty easy installation lights look pretty nice on the truck as well
d
toyota/sequoia/2017 One rock light installed so far from the four light kit. It was so easy and I like it so much I am ordering four more. The lights also seem very sturdy.
H
The eight-pod rock lights have been working flawless in the last two weeks with OEM style CH4x4 dual function switch (Amber/White) in my Toyota 4Runner. I used two 4-pin relays for the CH4x4 switch, and designated Relay #1 as Amber light relay, and Relay #2 as White light relay. If 5-pin relay, no connection is needed for Pin 87A.
Here is my set-up:
A. For LasFit switch:
i. Remove (a.k.a. cut-off) the 3-way switch
ii. Connect Red wire to Pin 87 of Amber light relay (Relay #1)
iii. Connect Yellow wire to Pin 87 of White light relay (Relay #2)
iv. Cap Black wire of LasFit switch (no need for this wire)
B. For LasFit wiring
i. Connect Red wire with fuse to positive (+) battery terminal
ii. Connect Black wire to negative (-) battery terminal
C. CH4x4 Switch (blue, red, black, yellow and green color wires):
i. Connect Blue wire to Pin 86 of Amber light relay
ii. Connect Red wire to positive (+) battery terminal
iii. Connect Black wire to ground or negative (-) battery terminal
iv. Connect Yellow wire to dash illumination (in my case, I tapped into the white color wire of the Windshield wiper deicer switch)
v. Connect Green wire to Pin 86 of White light relay
D. For both relays:
i. Pin 86 Amber relay to Blue wire of CH4x4
ii. Pin 86 White relay to Green wire of CH4x4
iii. Pin 85 of both relays to ground or negative (-) battery terminal
iv. Pin 30 of both relays to positive (+) battery terminal (note: recommend to connect after the LasFit Red wire with fuse)
v. Pin 87 Amber relay to Red wire of removed LasFit switch
vi. Pin 87 White relay to Yellow wire of removed LasFit switch
Here is how my Amber rock lights work with CH4x4 switch: 1) press amber switch, battery power on CH4x4 red wire goes through CH4x4 blue wire and to Pin 86 of Amber relay. The power energizes the coil of Amber relay; Pin 30 makes connection to Pin 87, turns on Amber rock lights. It will be similar situation of White rock lights. Since Pin 30 & Pin 87 of both relays will always have battery power, I can turn on the rock lights without running the vehicle, so please be careful to turn off the rock lights. In addition, the set up for the CH4x4 dual function switch allows me to turn on both Amber and White rock lights at the same time. Thank you and have a good day.
R
This kit was exactly what i was looking for. Sturdy housings, plenty of length in wire, awesome light output and cant beat the price when compared to other "brand name" companies out there. Time will tell how long they last, but thats with anything. But id bet they last longer than those "big name" companies out there! I do wish that the switch they give you was illuminated.
D
I ordered the 8 piece rock lights after experiencing the 42" lasfit lighbar. I've been very impressed by both the build quality and light output of lasfit products. These rock lights were extremely easy to install and the included switch to go from white to amber light is awesome!
