Fit for 2015–2023 Ford F-150 H11 9005 LED Headlight Bulbs for High & Low Beam | LA Plus Series
The item is backordered and will ship as soon as it is back in stock.
More Options For Your Vehicle :
Specifications
Specifications
-
Wattage
30W/bulb -
Lumens
3,000LM/bulb -
Color Temperature
Clear 6,000K -
Voltage
DC 9-16V -
Waterproof Rating
IP67 Certified
Warranty & Return
Warranty & Return
Fit for 2015–2023 Ford F-150 H11 9005 LED Headlight Bulbs for High & Low Beam

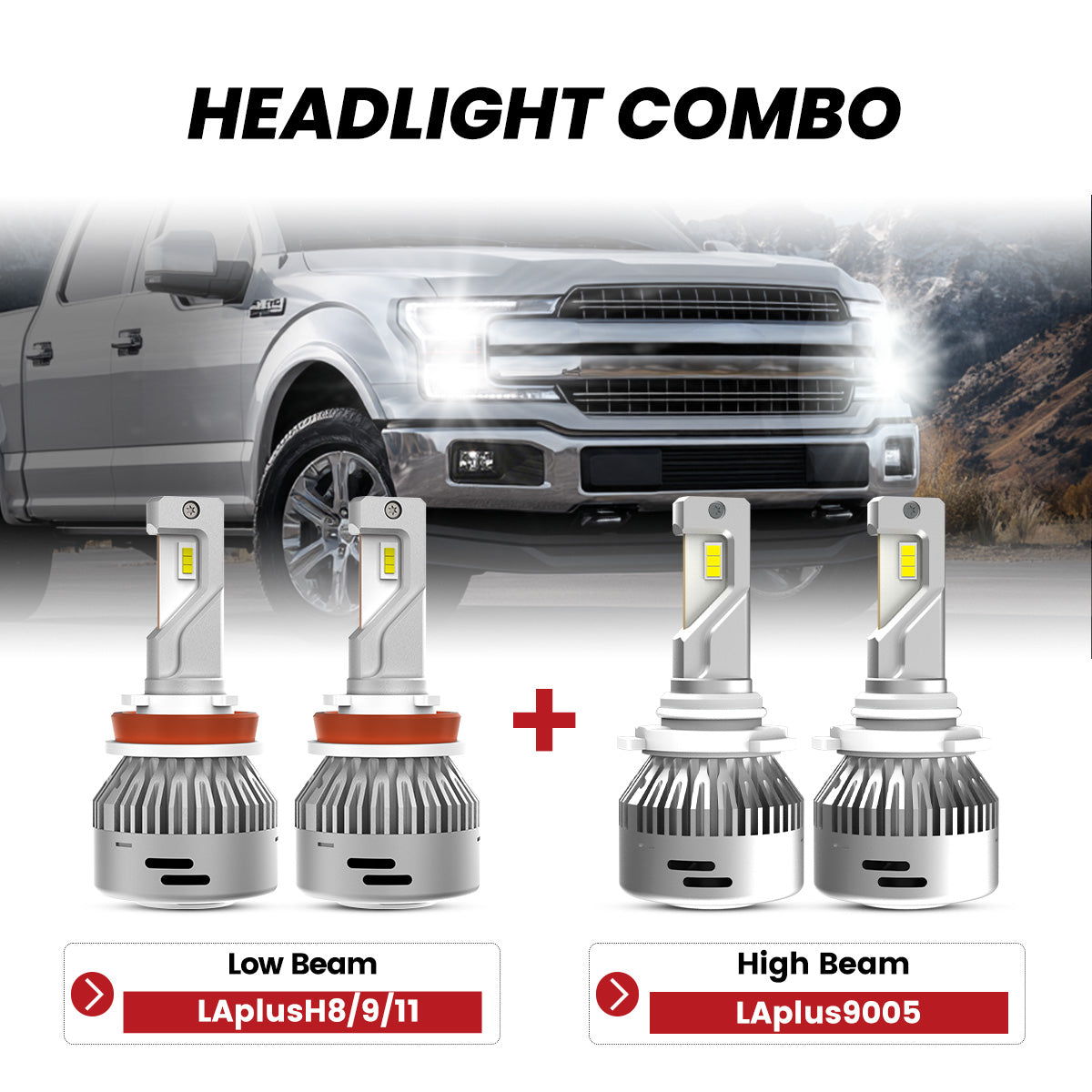

Upgrade compatible low and high beam positions with compact LA Plus LED bulbs. H11 / H8 / H9 is used for the compatible low beam position, while 9005 / HB3 is used for the high beam position.
Why Choose LA Plus LED Bulbs for Ford F-150?
Up to 400% Brighter Than Halogen
Six high-output LED chips deliver up to 3000 lumens per bulb for stronger nighttime visibility.
360° Adjustable Mounting Collar
Rotate the bulb to achieve a suitable LED chip orientation inside compatible reflector or projector housings.
Advanced Cooling System
Dual ball-bearing cooling fans and an aluminum body help manage heat for stable, long-lasting output.
Compact OEM-Like Design
LA Plus bulbs use a shorter all-in-one structure without a separate external driver box, helping simplify installation and leaving more room behind the bulb for the factory dust cover.
Quick Plug-and-Play Installation
The compact LA Plus design makes installation straightforward in compatible factory housings.
Designed for Easier Factory-Housing Fitment
Compared with many oversized aftermarket LED bulbs, the shorter LA Plus design helps reduce installation interference inside compatible headlight housings.
The integrated driver design also reduces wiring clutter behind the bulb.
Technical Specifications
| Specification | H11 / H8 / H9 LA Plus Low Beam | 9005 / HB3 LA Plus High Beam |
|---|---|---|
| Vehicle Application | Compatible high and low beam positions for 2015–2023 Ford F-150 | |
| Bulb Size | H11 / H8 / H9 | 9005 / HB3 |
| Light Position | Low Beam | High Beam |
| Series | LA Plus | LA Plus |
| Light Mode | Single Beam | Single Beam |
| Power | 30W per bulb / 60W per pair | 30W per bulb / 60W per pair |
| Luminous Flux | 3000LM per bulb / 6000LM per pair | 3000LM per bulb / 6000LM per pair |
| Color Temperature | 6000K Bright White | 6000K Bright White |
| Voltage | DC 9–16V | DC 9–16V |
| Driver | Integrated Internal Driver | Integrated Internal Driver |
| Mounting Collar | 360° Adjustable | 360° Adjustable |
| Cooling | Aluminum Body + Dual Ball-Bearing Fan | Aluminum Body + Dual Ball-Bearing Fan |
| Lifespan | Over 30,000 Hours | Over 30,000 Hours |
| Package | 2 × H11 / H8 / H9 LA Plus LED Bulbs | 2 × 9005 / HB3 LA Plus LED Bulbs |
