22 Inch Off-Road LED Light Bars Bumper Grille Combo Flood Spot Single Row - LASFIT

SKU#:LW20CBSTW

choose the product

10% Off For First Purchase

At most one code per order at checkout.

• Superior Brightness Guide You Off The Road
• Sleek, Low-Profile, Slim, and Single-Row Design
• 10500LM Raw Output & 6020LM Measured Output
• Aluminum Housing+IP67 Waterproof☞Built For Off-Road
• Osram Chips+Combo Beam+PC Lens☞Broader Driving Vision
• DT Port+Adjustable Bracket+Dual Installation Options☞Beginner-Friendly
• 45 Days Money-Back Guarantee+3-Year Hassle-Free Warranty+Free Shipping

Note: To minimize damage during shipping, we will ship out the wiring harness and the light bar separately.


  • PRODUCT OVERVIEW

    • With a powerful 6020 Lumens and 60 Watt output, the Lasfit 22inch single row light bar is a sight to behold. This led light bar uses the Osram chip and hardened polycarbonate (PC) optics to offer high brightness and excellent quality, and its amazing IP67 waterproof ability is also specifically designed for your off-roading needs!
    • Click to buy wiring harness and univesal mounting brackets only.
    • Check out the Lasfit 22" amber light bars >

    How To Choose The Most Suitable Light Bar Size For Your Vehicle?

    The proper lighting solution is quite important for the road and the trails. Here are 3 simple steps you need to complete before buying to help you determine the perfect light bar size:

    Step 1. Decide where you want to install the light bar.

    One way to ensure the best performance of your light bars is to choose the best mounting location for them. 22'' light bars are usually mounted on the bumper or behind the grille.

      Step 2. Measure the size of the mounting location area.

      The perfect mounting options often depend on your specific vehicle, personal preferences, mounting brackets, technical abilities, and most importantly, the accurate measurement results. Here're the exact dimensions of Lasfit 22" LED Light Bar:
      lasfit 22 inch light bar spedification

      PRODUCT SPECIFICATION

      • Brand: Lasfit
      • Size(inch): 22"
      • Wattage: 60W
      • Raw Output(Lumens): 10500LM
      • Measured Output(Lumens): 6020LM
      • Beam Pattern: Spot and Flood Combo Beam
      • Color Temperature: 6000K
      • LED Chips: Osram's OSCONIQ® P 3737 LED
      • Output Voltage: 9-36V
      • Waterproof Rating: IP67
      • Connector Type: DT Port
      • Optical Accessories: Reflective Bowl
      • Warranty: 3-Year Hassle-Free Warranty
      • Material: 6063 Aviation Aluminum; Osram Led Chips; PC Lens.
      • Install Positions: 22'' light bars are usually mounted on the bumper or behind the grille. 22 INCH LIGHT BARS MMY&MOUNTING OPTIONS
      • Compatibility: 22" LED light bars are well suited for Jeep, Ford, Toyota, GMC, Chevrolet, Ram, Subaru, Nissan, Lexus, Rivian, and a variety of other vehicles.

      Step 3. Match the measurements to our light bar dimensions.

      Featuring a sleek, low-profile, slim, and single-row design, the Lasfit light bar looks thick without being bulky, this design is flexible for a variety of installation methods and locations, especially fitting the Grille Mount. Here are some common Light Bars MMY Mounting Options for reference>>.
      Please Note: Our kits come with univesal mounts, Custom Modification might be needed to mount them. We have these Vehicle-specific Brackets (UPDATING) for you to choose from.
      *If you couldn't find the specific brackets for you vehicle in our store at the moment, please order from Amazon.com or a nearby local store for your convenience.


      Why choose Lasfit light bars?

      1. Superior Brightness Guide You Off The Road.

      (1) Light Bar VS Headlight

      When you're off the beaten path at night and you need extra light to guide your way. Therefore, we've done lots of testing to improve the brightness, range, and clarity of the lighting to ensure the safety of off-road/land lighting for a better off-road experience. Adding a light bar would be an immensely powerful lighting set-up with the headlights to illuminate everything in your path for driving down dark, twisting back roads.

      (2) Combo Beam - Broader Driving Vision

      It's a dual-functioning light bar that has both spot and flood features. The Flood Beam perfectly ensures your peripheral vision when you are off-roading while the Spot Beam offers a longer and more concentrated driving vision.

      (3) Osram LED Chips+PC Lens- Top Light Performance

      Lasfit is a veteran LED light seller with the best chipset originals and craftsmanship. We use Osram's OSCONIQ® P 3737 as the chip for our light bars. With luminous efficacy of 99.85 LM per watt, this high-power LED chip delivers high performance and superior robustness to last long.

      With high impact and scratch resistance, PC lenses can hold up longer in extreme temperatures as opposed to glass. It is stronger and harder.

      headlight vs light bar (1)

      2. Beginner-Friendly Installation

      3. Unique Design Built For Off-Road.

      (1) Aluminum Housing

      • With 6063 aviation aluminum housing, it can resist oxidation and high temperature without falling paint. It is durable and can withstand any harsh conditions.

      (2) IP67 Waterproof

      • With IP67 Waterproof rating, the light bars can be underwater for 30 minutes for up to 6 feet.
      • High-temperature rubber gaskets for tightening the gaps and ensuring no moisture gets into the housing.
      • As long as there is water ingress (excluding fogging), you can have a 3-year warranty replacement.

      (3) Efficient Cooling

      • Cooling Fins increase heat dissipation. Die-cast Aluminum housing for better heat transfer. Breather Hole for faster removal of water vapor and mist.

      (4) PC Lens

      • Lasfit's PC Lens has UV Transmittance and Light Transmittance of 0% and 90.3%, respectively, compared to 61% and 85.1% for others on the market, making it a more durable and clearer projection.
      • Note: The fewer UV Rays that pass through, the less likely the plastic panels will age and be yellow.
      2016 toyota 4runner offroad Roof LW40CBSTW @mrblah79(14)
      light bar


      PACKAGE INCLUDED

      • 22" LED Light Bar x1
      • Complete Set of Mounting Brackets and Hardware x1
      • Note: Wiring harness is not included.  You can get a package of a light bar and wiring harness if needed (add "light bar + wiring harness" to your cart)

      22 inch light bar overall package display


      ABOUT LASFIT

      Our Guarantees:

      • 45 Days Money-Back Guarantee
      • 3-Year Hassle-Free Warranty
      • Free Shipping
      • Customer Support Team in Ontario, California

      Contact Us:

      If you have any questions about mounting, please chat with us!

      • Email: cs@lasfit.com
      • Call: (909) 758-7900 Mon. - Fri. 9:00 am-5:30 pm (PST)
      • Location: 2235 E 4th St Ste F Ontario, CA 91764 United States

      Customer Reviews

      Based on 7 reviews
      100%
      (7)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      A
      Allen C
      Wow. Didn’t expect it to be so bright!!

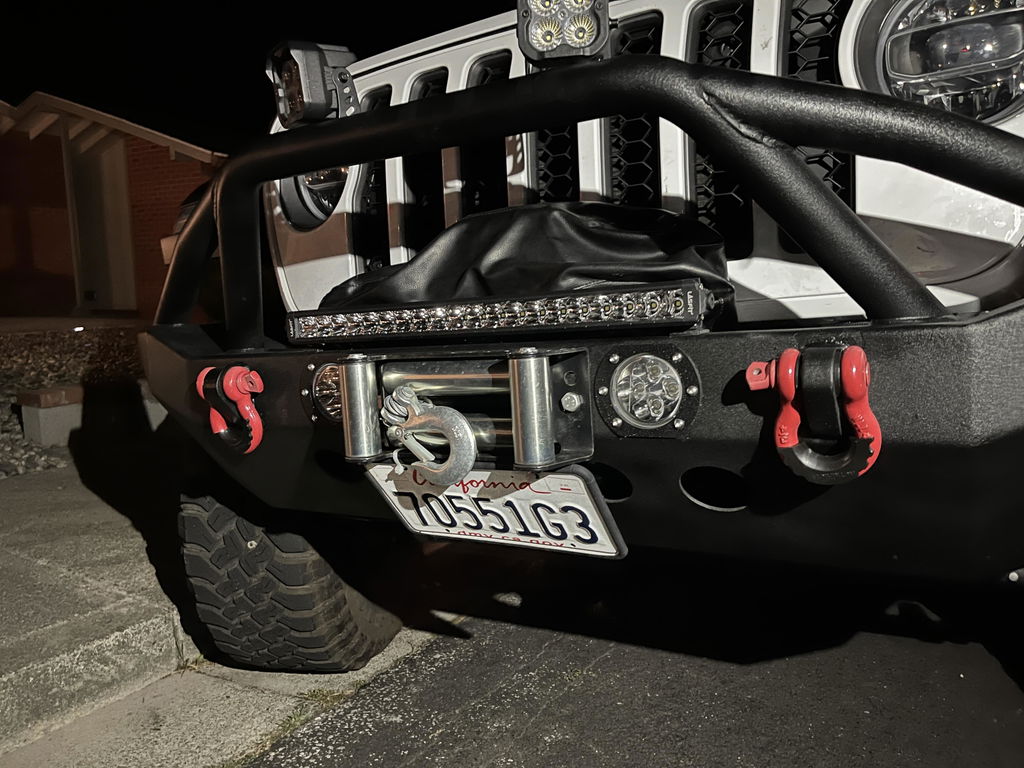

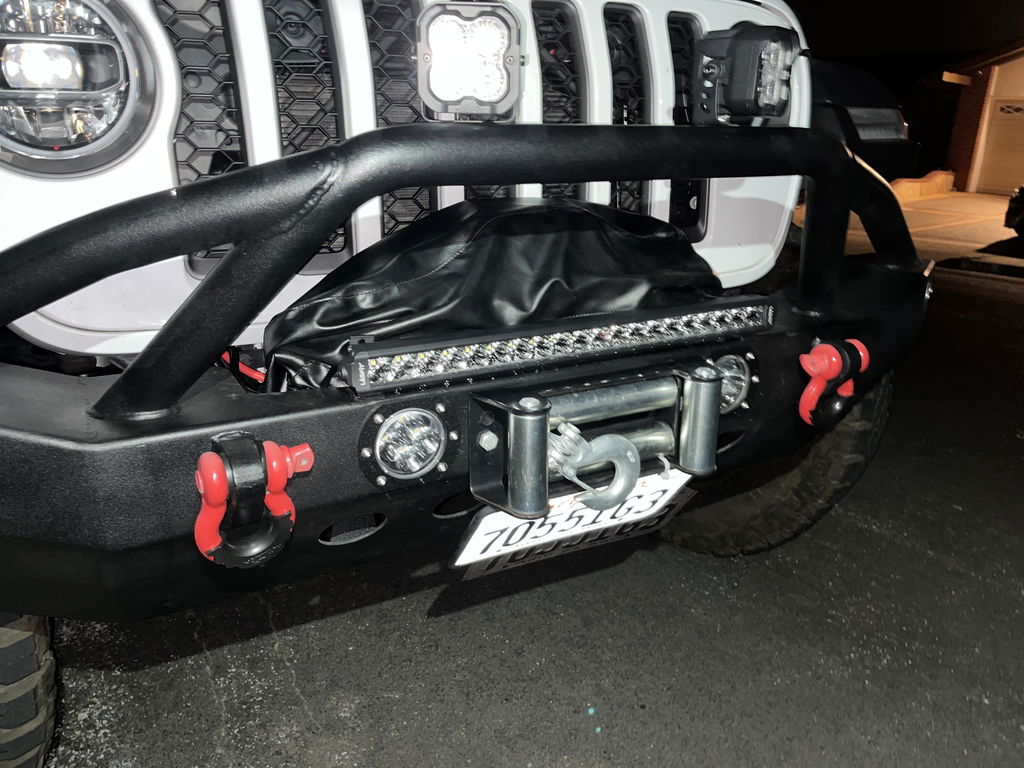

      So I recently bought the spots and ditch light and thought I complete my set up with a light bar but didn’t think that it could get that much better. But I was amazed at the output and brightness. At first, I saw how small they were and wasn’t expecting much. Especially for the price. But when I turned them on at night. I couldn’t believe how bright they were. Warning. There’s no way you can use this on the streets or highway. But you’ll want too!! I already have the LED headlights and this blew it away!! The pictures are nor able to capture how bright these really are!! The quality was great. Solid and well packaged. I love the fact that I can mount them from the rear and not the sides. I would definitely recommend them to anyone that’s looking for something brighter and without spending a fortune. Great value!

      S
      S.F.
      22" Light Bar 2022 Toyota 4Runner TRD Off-Road Premium

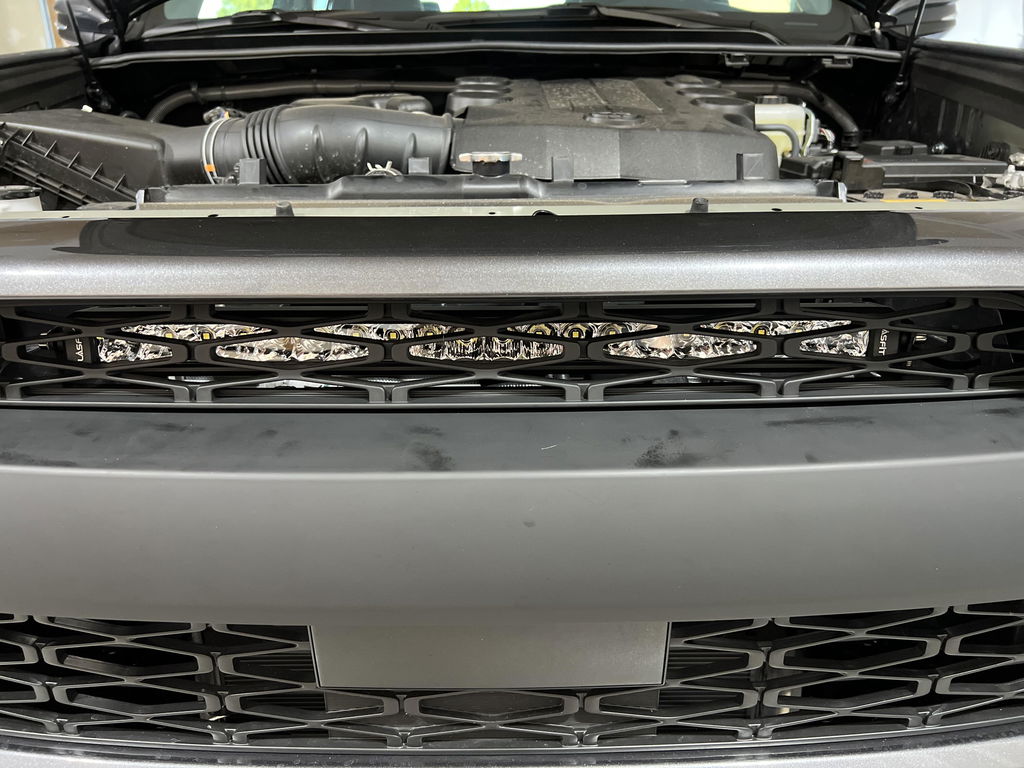

      Overview: Overall I’m happy with the 22” light bar +Harness kit. I have a 2022 4Runner TRD Off-Road Premium. As you’ll see in the pictures, the factory LED Low Beams & High Beams perform really well at night. The Lasfit light bar just adds to that will additional flood beams giving the light beam pattern a more rounded look, whereas the factory LED headlights are a flat line, only shining maybe 10 feet of the ground.

      Quality: Excellent, especially for the price. Solid aluminum body, the 22” light bar is fairly lightweight, looks professionally built, the clear polycarbonate optics look great! The Osram diode chips perform well as they are the leader in LED technology.

      Price: Excellent, I’m not sure if you can find a single row light bar with this level of performance and quality under $100.
      Appearance: With the white Lasfit logos on the side to the satin black appearance, this light bar is all business. Looks great behind my TRD Pro Grille (see pics). My TRD Pro Grille is a satin/matte black as well, perfect match.

      Accessories: I purchased my 22” light bar with the wire/switch accessory package for a seamless install. Almost plug and play, no cutting of wires. Just locate the provided switch where you want it, then boom: 10,500 Lumens of raw illumination!

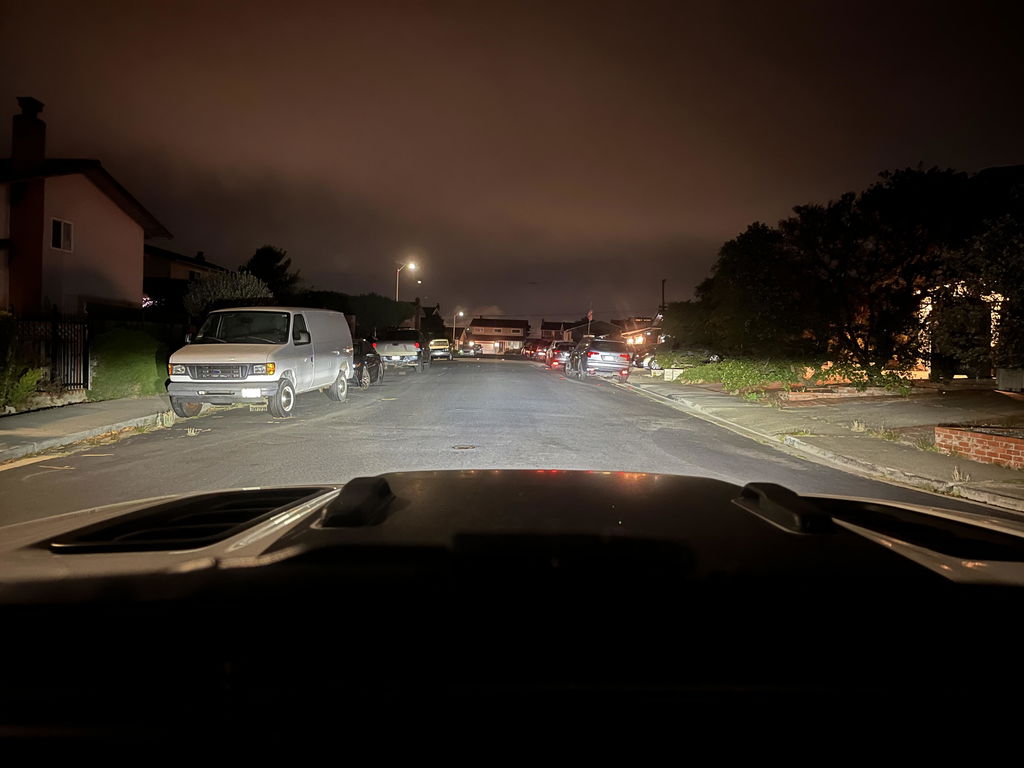

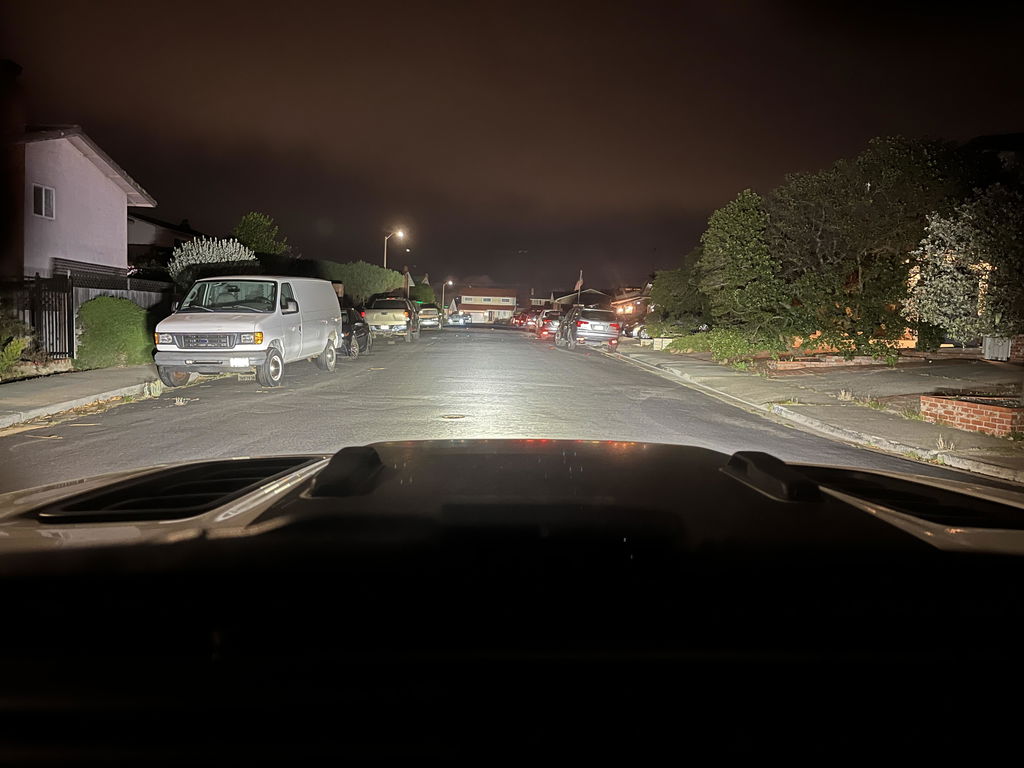

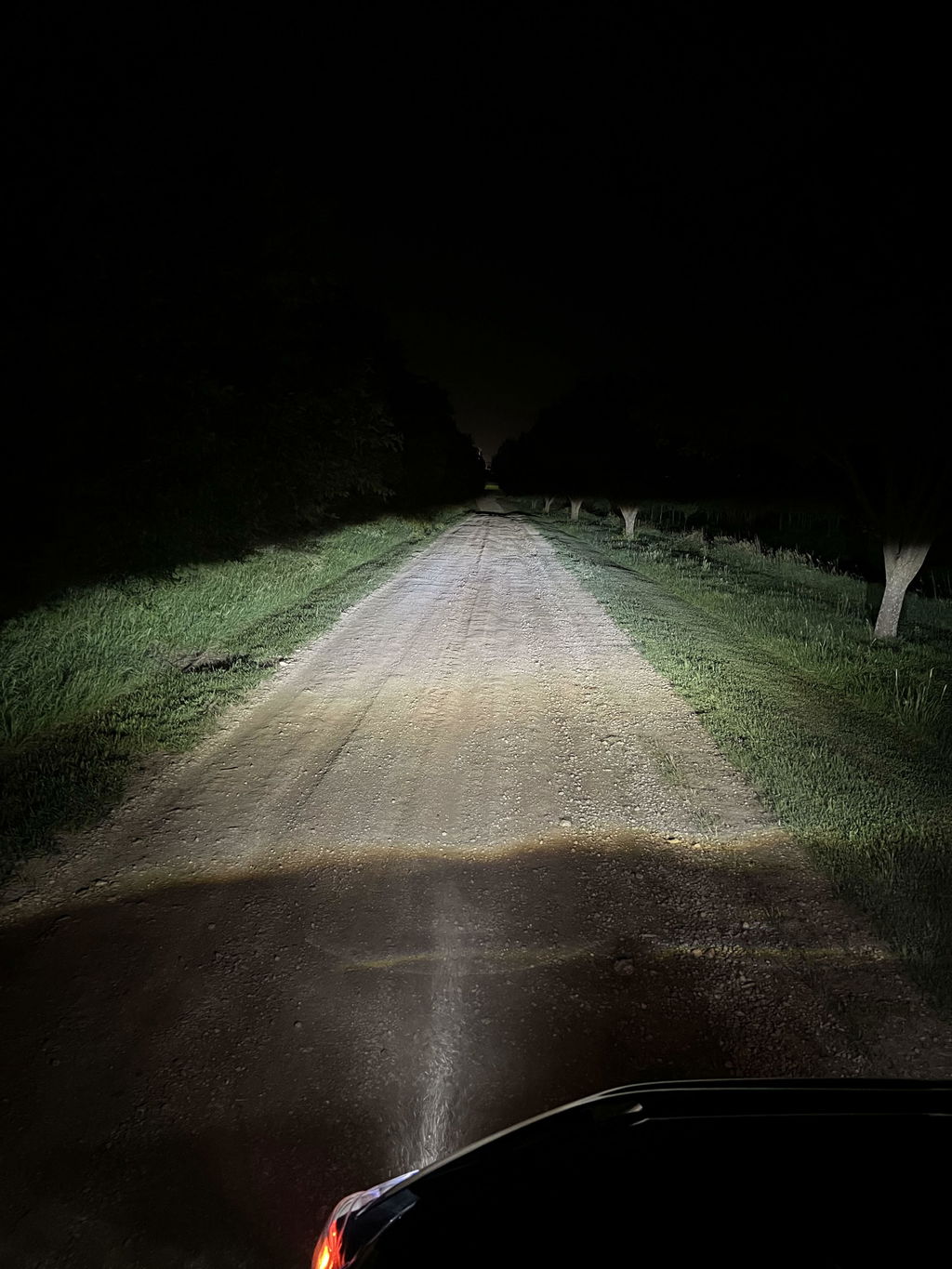

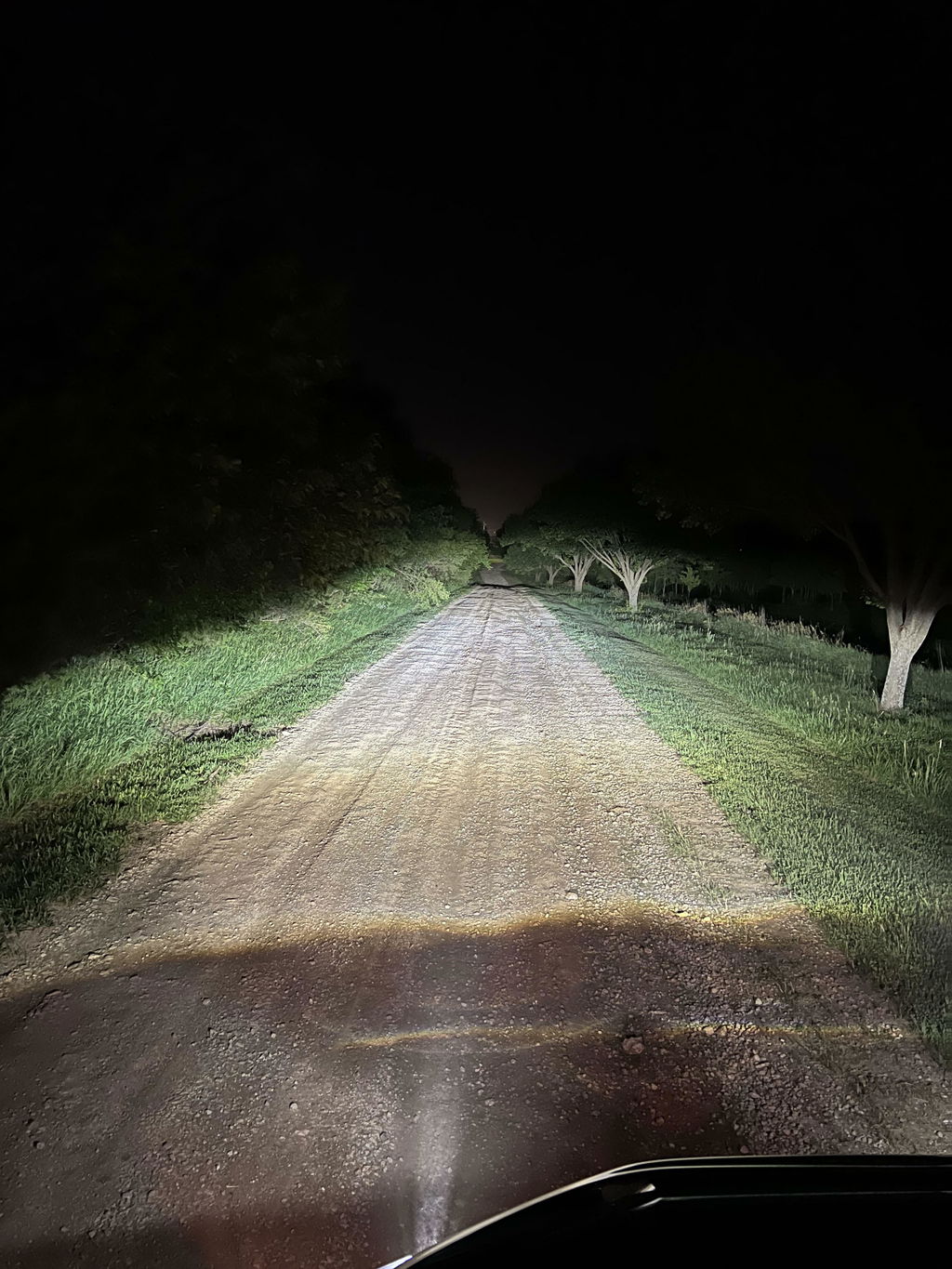

      Performance, Brightness and Beam Pattern (Spot/Flood): Super bright! However, the factory LED Low/High beams on the Toyota 4Runner perform super well, it’s a nice flat beam pattern. Now, I spent a lot of time aiming this lightbar to find the perfect balance to complement my High Beams. I couldn’t tell if this light bar can outperform the distance of my factory High Beams. Its close, you can decide from the pictures. Now, my focus for purchasing this light bar was not so much for the spot pattern, I was hoping for more of a flood pattern. You can see in the pictures, when the light bar is turned on, you get about 100 degrees of light through from the upper grille location. This is where the light bar shined on my vehicle. As you can see in the pictures, the flood pattern shows how round and high the flood patter protrudes through the darkness. The pictures attached to this review are: Low Beams Only, High Beams Only, High Beams/w Light Bar, then just the Light Bar by itself. The pictures show a field of over 400 yards, and the light bar shines further than the 400-yard mark. You decide!

      Vehicle Application(s): I installed this on my 2022 Toyota 4Runner TRD Off-Road Premium. I installed a TRD Pro Grille so the light bar could shine through. The 2020+ T4R’s have a new TSS sensor that block the middle of the lower grille assembly. So, I felt that the only probably area to utilize the performance of a light bar, is through the upper grill portion.

      Summary: Overall, I’m very please with this light bar and the performance. If I could suggest any improvements, maybe look at creating a flood/driving pattern. The newer vehicles have decent LED Low/High beams from the factory now days. Maybe focus on the peripheral angles of the vehicle where the factory lights don’t perform well. I would love to see a double row of this 22” light bar, that would be helpful for the 2020+ T4R crowd. I appreciate how clean and centered this light bar looks behind that TRD Pro Grille. It almost looks like a factory installed addition. Super clean!

      a
      a.r.
      Ford Maverick

      This small light bar is amazing!! Easy to install

      C
      C.
      2021 Bronco

      Purchased the 22” lightbar for my bronco and it was so easy to install! Shipping was super fast too! Def recommend, I’m super happy with this product!

      J
      J.S.
      Great little light bar

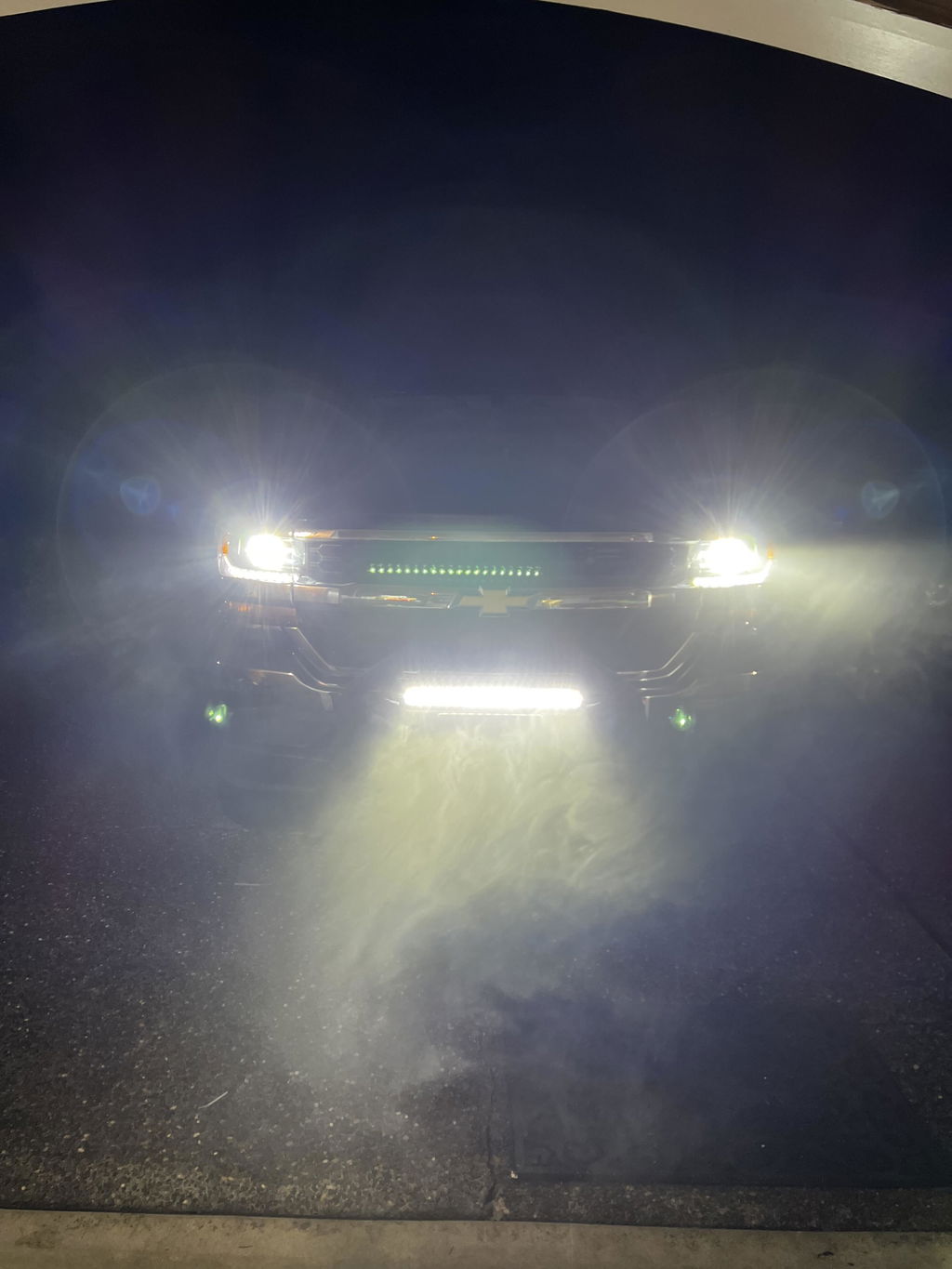

      Extremely happy with the light bar, stout construction and slim design. Great amount of light output and and easy to mount.
